Campro CPL-3518MC

Q: How much does the Campro CPL-3518MC cost?

The price estimate for the Campro CPL-3518MC is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-cpl-3518mc#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

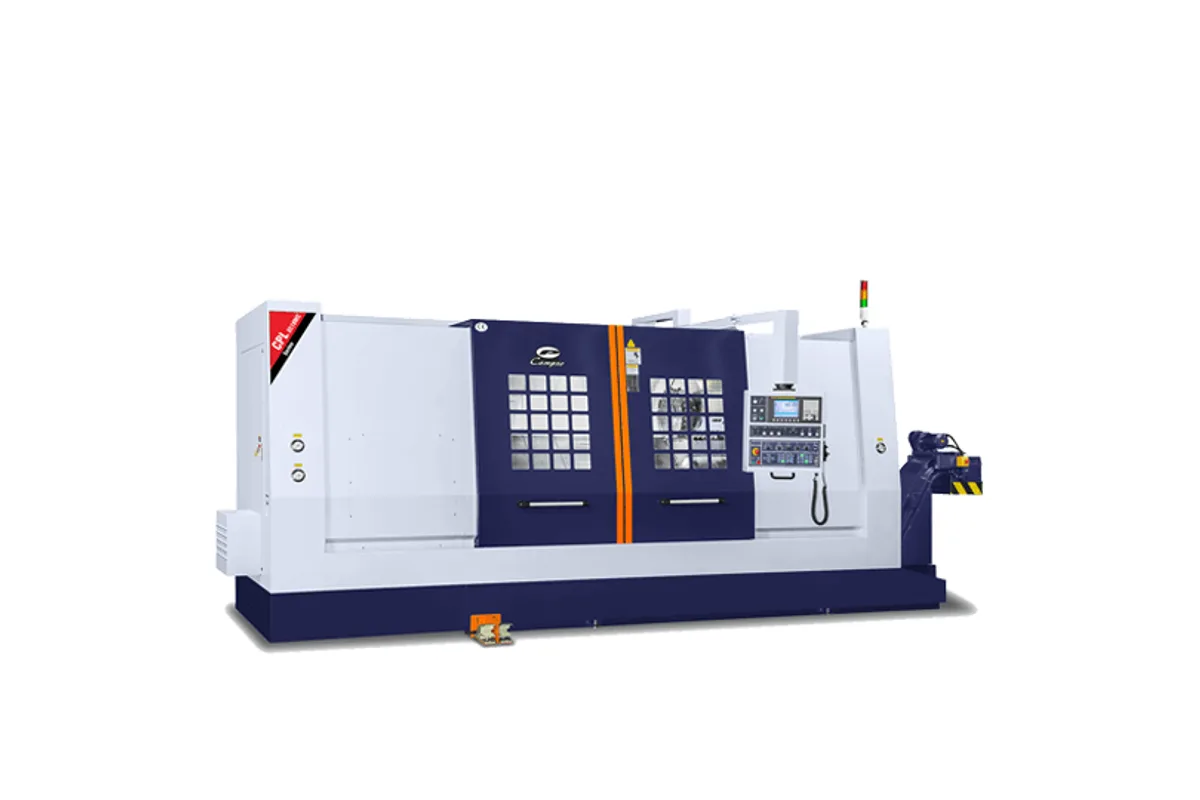

Campro CPL-3518MC turning and milling center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

2,000 rpm

Spindle Power

22 / 26 kW (35 HP)

Max Turn Length

2,050 mm (80.7 in); OPT: 1,400 mm (55.1 in) / 3,000 mm (118.1 in)

swing over bed

900 mm (35.4 in)

swing over carriage

700 mm (27.5 in)

max milling length

2,150 mm (84.6 in); OPT: 1,500 mm (59 in) / 3,100 mm (122 in)

How much does the Campro CPL-3518MC cost?

Price estimate

Uncertain

We do not have a price for the Campro CPL-3518MC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campro CPL-3518MC is a 13,000 kg (28,660 lb) box-way turning and milling center for long, heavy shafts. It swings 900 mm (35.4 in) over the bed, turns up to 590 mm (23.2 in) in diameter and, in standard form, 2,050 mm (80.7 in) in length.

Campro's statement that the CPL-MC series accommodates workpieces up to 590 mm in diameter and 3,000 mm in length refers to this end of the range. The 3,000 mm figure is the long-bed option; a 1,400 mm (55.1 in) short bed is also listed. Milling length is 2,150 mm (84.6 in) on the standard bed.

The turret changes type at this size. Campro fits a BMT turret to the CPL-3518MC and CPL-3520MC, and says it provides superior rigidity for forward and reverse machining through high locking forces. The system is BMT-75 with 12 positions, a 5.5 / 7.5 kW turret servo motor and 4,000 rpm driven tools. Bolted BMT holders suit the heavier milling a machine of this mass can sustain, at the cost of the quick change of the VDI turrets on the smaller models.

The ways are precision ground box ways with scraped Turcite-B. The main spindle is A2-11 with an 18 in chuck, a Ø117.5 mm (Ø4.6 in) draw tube hole, a 22 / 26 kW (35 HP) motor and a 2,000 rpm limit; C-axis indexing is 0.001°. X travel is 350 + 35 mm with a 20 m/min rapid, and Z rapid is 15 m/min on the standard bed.

The tailstock quill is Ø150 mm (Ø5.9 in). Standard floor plan with chip conveyor is 6,313 x 2,250 mm (248 in x 88 in), coolant capacity 450 L (117 gal) and power capacity 40 kVA.

Full Specifications

Parameter	Value
Swing Over Bed	900 mm (35.4 in)
Swing Over Carriage	700 mm (27.5 in)
Max Turning Length	2,050 mm (80.7 in); OPT: 1,400 mm (55.1 in) / 3,000 mm (118.1 in)
Max Milling Length	2,150 mm (84.6 in); OPT: 1,500 mm (59 in) / 3,100 mm (122 in)
Max Turning Diameter	590 mm (23.2 in)
X Axis Travel	350 + 35 mm (13.7 in + 1.37 in)
Rapid Traverse X	20 m/min (787.4 in/min)
Z Axis Travel	2,150 mm (84.6 in); OPT: 1,500 mm (59 in) / 3,100 mm (122 in)
Rapid Traverse Z	15 m/min (590.5 in/min); OPT: 20 m/min (787.4 in/min) / 15 m/min (590.5 in/min)
Spindle Nose	A2-11
Chuck Size	18 in (OPT: 20 in)
Hole Through Draw Tube	Ø117.5 mm (Ø4.6 in)
Spindle Bearing Diameter	Ø170 mm (Ø6.6 in)
Max Spindle Speed	2,000 rpm
Spindle Motor Power	22 / 26 kW (35 HP)
C Axis Indexing	0.001°
Turret Type	12-Servo
Turret System	BMT-75
Turret Tool Change Time	0.2 sec
Turret Servo Motor	5.5 / 7.5 kW (7.4 / 10.1 hp)
Driven Tool Speed	4,000 rpm
Tailstock Quill Diameter	Ø150 mm (Ø5.9 in)
Tailstock Quill Travel	150 mm (5.9 in)
Tailstock Quill Taper	MT-#6
Floor Plan with Chip Conveyor	6,313 x 2,250 mm (248 in x 88 in); OPT: 5,663 x 2,250 mm (223 in x 88 in) / 7,313 x 2,250 mm (288 in x 88 in)
Machine Weight	13,000 kg (28,660 lb); OPT: 11,500 kg (25,353 lb) / 16,000 kg (35,274 lb)
Coolant Tank Capacity	450 L (117 gal)
Power Requirement	40 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

590 mm (23.2 in) turning diameter and 2,050 mm (80.7 in) turning length with live tools
BMT-75 turret, 12 positions, with a 5.5 / 7.5 kW servo motor
Box ways with scraped Turcite-B on a 13,000 kg (28,660 lb) machine
22 / 26 kW (35 HP) main spindle with an 18 in chuck, 20 in optional
Bed options of 1,400 mm (55.1 in) and 3,000 mm (118.1 in) turning length

Limitations

Z rapid of 15 m/min on the standard bed
Driven tools limited to 4,000 rpm
No Y axis is listed, so off-centre milling is not available
Needs 40 kVA and a floor plan of 6,313 x 2,250 mm (248 in x 88 in)

Best For

Long shafts, rolls and screws with keyways, flats and cross holes Large flanged parts up to 590 mm (23.2 in) drilled and tapped in one setup Heavy turning followed by milling on forgings Parts up to 3,000 mm (118.1 in) long on the long-bed option

Frequently Asked Questions

01 What is the capacity of the CPL-3518MC?

Maximum swing over the bed 900 mm (35.4 in), over the carriage 700 mm (27.5 in), maximum turning diameter 590 mm (23.2 in). Maximum turning length is 2,050 mm (80.7 in), with options of 1,400 mm (55.1 in) and 3,000 mm (118.1 in).

02 Why does the CPL-3518MC use a BMT turret?

Campro states that the CPL-3518MC / 3520MC are equipped with a BMT turret, which provides superior rigidity for forward and reverse machining and stability under heavy loads due to high locking forces. The smaller CPL-MC models use a VDI turret. The system here is BMT-75.

03 What are the spindle and live tool ratings of the CPL-3518MC?

Main spindle: 22 / 26 kW (35 HP), 2,000 rpm, A2-11 nose, Ø117.5 mm (Ø4.6 in) hole through the draw tube. Live tools: 4,000 rpm maximum tool speed with a 5.5 / 7.5 kW turret servo motor. The C axis indexes in 0.001° steps.

04 How heavy is the CPL-3518MC?

13,000 kg (28,660 lb) on the standard bed. The short-bed and long-bed options are listed at 11,500 kg (25,353 lb) and 16,000 kg (35,274 lb). Power capacity is 40 kVA and the coolant tank holds 450 L (117 gal).
