Campro CPL-10MC

Q: How much does the Campro CPL-10MC cost?

The price estimate for the Campro CPL-10MC is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-cpl-10mc#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

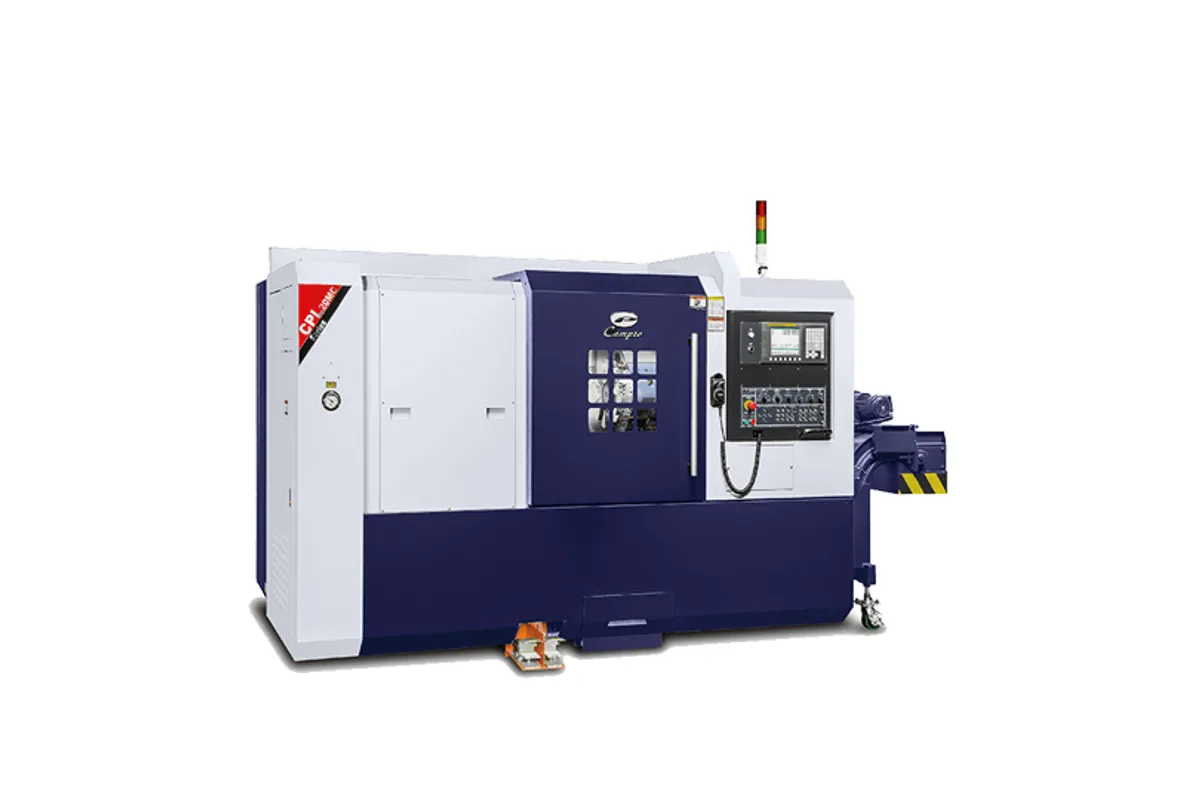

Campro CPL-MC series turning and milling center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

6,000 rpm

Spindle Power

5.5 / 7.5 kW (10 HP)

Max Turn Length

315 mm (12.4 in)

swing over bed

450 mm (17.7 in)

swing over carriage

258 mm (10.1 in)

max milling length

288 mm (11.3 in)

How much does the Campro CPL-10MC cost?

Price estimate

Uncertain

We do not have a price for the Campro CPL-10MC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campro CPL-10MC is the smallest of the maker's turning and milling centers: a 6 in chuck slant-bed lathe with a C axis and a 12-position servo live turret. The main spindle runs to 6,000 rpm and the driven tools to 5,000 rpm.

It is the CPL-106 with milling added, and the table shows what the live turret costs in envelope. Maximum turning diameter is 170 mm (6.6 in), where the CPL-106 turns Ø290 mm (11.4 in), and maximum turning length is 315 mm (12.4 in). Milling can be done over 288 mm (11.3 in) of length. Parts for this machine are therefore small: fittings, connectors, pins, valve stems and similar bar or chucked work with cross holes, flats or keyways.

Campro states that the live turret is standard on the MC series and that each tool position can carry a rotating tool. The turret system is VDI-30, which the maker describes as a quick change tooling solution, and the tool change time is 0.2 sec. The turret servo motor is listed at 2.2 / 3.7 kW. The C axis indexes in 0.001° steps, so holes and slots can be placed at any angle and simple contours milled around the diameter.

The spindle is A2-5 with a 5.5 / 7.5 kW (10 HP) motor and a Ø45 mm (Ø1.7 in) hole through the draw tube; an 8 in chuck is optional. X travel is 150 + 5 mm and Z travel 320 mm (12.5 in), on linear guideways with 24 m/min rapids. A tailstock with a Ø70 mm (Ø2.7 in) quill is included. The machine weighs 3,200 kg (7,054 lb), fits in 2,962 x 1,625 mm (116 in x 63 in) with its chip conveyor and needs 15 kVA. There is no Y axis on this model.

Full Specifications

Parameter	Value
Swing Over Bed	450 mm (17.7 in)
Swing Over Carriage	258 mm (10.1 in)
Max Turning Length	315 mm (12.4 in)
Max Milling Length	288 mm (11.3 in)
Max Turning Diameter	170 mm (6.6 in)
X Axis Travel	150 + 5 mm (5.9 in + 0.19 in)
Rapid Traverse X	24 m/min (944.8 in/min)
Z Axis Travel	320 mm (12.5 in)
Rapid Traverse Z	24 m/min (944.8 in/min)
Spindle Nose	A2-5
Chuck Size	6 in (OPT: 8 in)
Hole Through Draw Tube	Ø45 mm (Ø1.7 in)
Spindle Bearing Diameter	Ø90 mm (Ø3.5 in)
Max Spindle Speed	6,000 rpm
Spindle Motor Power	5.5 / 7.5 kW (10 HP)
C Axis Indexing	0.001°
Turret Type	12-Servo
Turret System	VDI-30
Turret Tool Change Time	0.2 sec
Turret Servo Motor	2.2 / 3.7 kW (3.0 / 5.0 hp)
Driven Tool Speed	5,000 rpm
Tailstock Quill Diameter	Ø70 mm (Ø2.7 in)
Tailstock Quill Travel	80 mm (3.1 in)
Tailstock Quill Taper	MT-#4
Floor Plan with Chip Conveyor	2,962 x 1,625 mm (116 in x 63 in)
Machine Weight	3,200 kg (7,054 lb)
Coolant Tank Capacity	90 L (23 gal)
Power Requirement	15 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

C axis with 0.001° indexing and a 12-position servo live turret as standard
6,000 rpm main spindle and 5,000 rpm driven tools
VDI-30 quick change turret with a 0.2 sec tool change time
Small and light: 2,962 x 1,625 mm (116 in x 63 in), 3,200 kg (7,054 lb)
24 m/min rapids on X and Z with linear guideways

Limitations

Maximum turning diameter of 170 mm (6.6 in), well under the Ø290 mm (11.4 in) of the CPL-106
Turret servo motor is 2.2 / 3.7 kW, so milling is light
No Y axis: off-centre features need the CPL-3010Y or an NT model with Y
Coolant tank holds only 90 L (23 gal)

Best For

Small turned parts with cross holes, flats and keyways Bar work through the Ø45 mm (Ø1.7 in) draw tube hole Replacing a lathe plus a second milling operation on small parts High-rpm work in brass and aluminium

Frequently Asked Questions

01 What milling capability does the CPL-10MC have?

A servo live turret on a VDI-30 system, with a maximum tool speed of 5,000 rpm and a turret servo motor of 2.2 / 3.7 kW, plus a C axis that indexes in 0.001° steps. Campro states that each tool can become a rotating tool. Maximum milling length is 288 mm (11.3 in).

02 How big a part can the CPL-10MC turn?

Maximum turning diameter is 170 mm (6.6 in) and maximum turning length 315 mm (12.4 in). Swing over the bed is 450 mm (17.7 in) and over the carriage 258 mm (10.1 in). X axis travel is 150 + 5 mm and Z axis travel 320 mm (12.5 in).

03 What spindle is on the CPL-10MC?

An A2-5 spindle nose with a 6 in hydraulic chuck, 8 in optional, running to 6,000 rpm on a 5.5 / 7.5 kW (10 HP) motor. The hole through the draw tube is Ø45 mm (Ø1.7 in) and the spindle bearing diameter Ø90 mm (Ø3.5 in).

04 How does the CPL-10MC compare with the CPL-20MC?

The CPL-20MC is the 8 in chuck version: 260 mm (10.2 in) maximum turning diameter, 470 mm (18.5 in) turning length, an 11 / 15 kW (20 HP) motor at 4,200 rpm and a VDI-40 turret. The CPL-10MC is smaller and faster at the spindle, 6,000 rpm, with a 6 in chuck.
