Campro CPL-3520MC

Q: How much does the Campro CPL-3520MC cost?

The price estimate for the Campro CPL-3520MC is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-cpl-3520mc#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

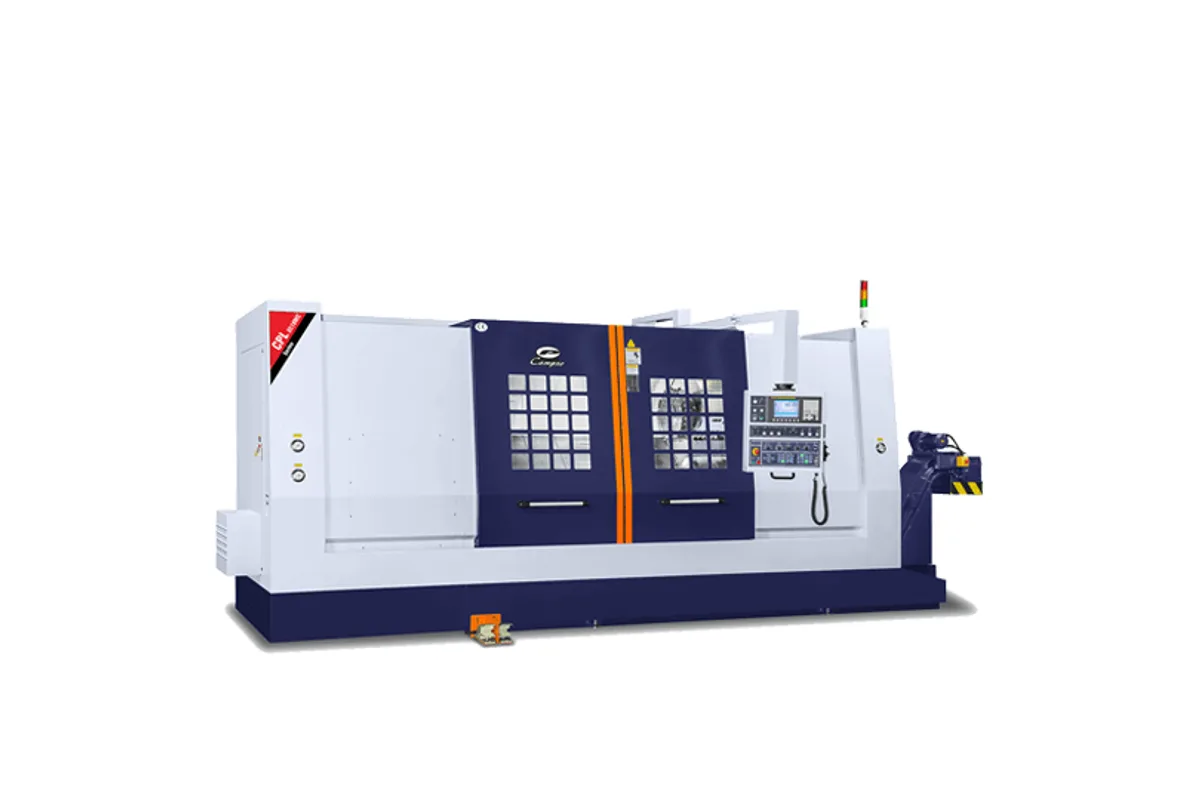

Campro CPL-MC series turning and milling center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

1,000 rpm

Spindle Power

22 / 26 kW (35 HP)

Max Turn Length

2,000 mm (78.7 in); OPT: 1,350 mm (53.1 in) / 2,950 mm (116.1 in)

swing over bed

900 mm (35.4 in)

swing over carriage

700 mm (27.5 in)

max milling length

2,100 mm (82.6 in); OPT: 1,450 mm (57 in) / 3,050 mm (120 in)

How much does the Campro CPL-3520MC cost?

Price estimate

Uncertain

We do not have a price for the Campro CPL-3520MC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Top of the CPL-MC series, the Campro CPL-3520MC combines the largest spindle Campro builds with a C axis and a BMT-75 live turret. The spindle nose is A2-15, the chuck 20 in, the hole through the draw tube Ø165 mm (Ø6.4 in) and the maximum speed 1,000 rpm.

The parts it is meant for are large-bore tubulars and heavy flanged components that need holes and milled features as well as turning: pipe couplings with wrench flats, large valve bodies, hubs with bolt circles. A Ø240 mm (Ø9.4 in) spindle bearing diameter and a 24 in chuck option show the scale. With a 1,000 rpm limit, small diameters are outside its range; surface speed only becomes adequate on large work.

Turning envelope is 590 mm (23.2 in) in diameter by 2,000 mm (78.7 in) in length, and milling length is 2,100 mm (82.6 in). Short and long beds are listed, giving 1,350 mm (53.1 in) or 2,950 mm (116.1 in) of turning length. X travel is 350 + 35 mm.

The driven tools run to 4,000 rpm from a 5.5 / 7.5 kW turret servo motor. That rating matters more than the 22 / 26 kW (35 HP) of the main spindle when the job is drilling a ring of large holes, and a buyer should check tap and drill sizes against it. Campro states that the BMT turret gives superior rigidity through high locking forces and that the machine runs on scraped box ways with Turcite-B.

Standard weight is 13,100 kg (28,881 lb), the floor plan with chip conveyor 6,433 x 2,250 mm (253 in x 88 in), and power capacity 40 kVA. The tailstock quill is Ø150 mm (Ø5.9 in) with an MT-#6 taper.

Full Specifications

Parameter	Value
Swing Over Bed	900 mm (35.4 in)
Swing Over Carriage	700 mm (27.5 in)
Max Turning Length	2,000 mm (78.7 in); OPT: 1,350 mm (53.1 in) / 2,950 mm (116.1 in)
Max Milling Length	2,100 mm (82.6 in); OPT: 1,450 mm (57 in) / 3,050 mm (120 in)
Max Turning Diameter	590 mm (23.2 in)
X Axis Travel	350 + 35 mm (13.7 in + 1.37 in)
Rapid Traverse X	20 m/min (787.4 in/min)
Z Axis Travel	2,100 mm (82.6 in); OPT: 1,450 mm (57 in) / 3,050 mm (120 in)
Rapid Traverse Z	15 m/min (590.5 in/min); OPT: 20 m/min (787.4 in/min) / 15 m/min (590.5 in/min)
Spindle Nose	A2-15
Chuck Size	20 in (OPT: 24 in)
Hole Through Draw Tube	Ø165 mm (Ø6.4 in)
Spindle Bearing Diameter	Ø240 mm (Ø9.4 in)
Max Spindle Speed	1,000 rpm
Spindle Motor Power	22 / 26 kW (35 HP)
C Axis Indexing	0.001°
Turret Type	12-Servo
Turret System	BMT-75
Turret Tool Change Time	0.2 sec
Turret Servo Motor	5.5 / 7.5 kW (7.4 / 10.1 hp)
Driven Tool Speed	4,000 rpm
Tailstock Quill Diameter	Ø150 mm (Ø5.9 in)
Tailstock Quill Travel	150 mm (5.9 in)
Tailstock Quill Taper	MT-#6
Floor Plan with Chip Conveyor	6,433 x 2,250 mm (253 in x 88 in); OPT: 5,783 x 2,250 mm (227 in x 88 in) / 7,433 x 2,250 mm (292 in x 88 in)
Machine Weight	13,100 kg (28,881 lb); OPT: 11,600 kg (25,574 lb) / 16,100 kg (35,494 lb)
Coolant Tank Capacity	450 L (117 gal)
Power Requirement	40 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

A2-15 spindle with a Ø165 mm (Ø6.4 in) hole through the draw tube
20 in chuck as standard and 24 in as an option
C axis with 0.001° indexing and a 12-position BMT-75 live turret
Box-way construction at 13,100 kg (28,881 lb)
Turning length options from 1,350 mm (53.1 in) to 2,950 mm (116.1 in)

Limitations

Spindle speed is limited to 1,000 rpm
Turret servo motor of 5.5 / 7.5 kW is modest for the size of part
Z rapid of 15 m/min on the standard bed
No Y axis is listed in the table for this model

Best For

Large-bore pipe and coupling work with milled or drilled features Heavy flanges and hubs up to 590 mm (23.2 in) with bolt circles Long heavy shafts up to 2,000 mm (78.7 in) needing keyways Oil and gas style tubular parts finished in one setup

Frequently Asked Questions

01 What is the spindle of the CPL-3520MC?

An A2-15 spindle nose with a 20 in hydraulic chuck, 24 in optional. The hole through the draw tube is Ø165 mm (Ø6.4 in) and the bearing diameter Ø240 mm (Ø9.4 in). Speed is 1,000 rpm with a 22 / 26 kW (35 HP) motor, and the C axis indexes in 0.001° steps.

02 How does the CPL-3520MC differ from the CPL-3518MC?

In the spindle. The CPL-3518MC has an A2-11 nose, an 18 in chuck, a Ø117.5 mm (Ø4.6 in) bore and 2,000 rpm. The CPL-3520MC has an A2-15 nose, a 20 in chuck, a Ø165 mm (Ø6.4 in) bore and 1,000 rpm. Turret, swing and turning diameter are the same.

03 What milling can the CPL-3520MC do?

It has a BMT-75 servo live turret with 12 positions, a maximum tool speed of 4,000 rpm and a 5.5 / 7.5 kW turret servo motor. Maximum milling length is 2,100 mm (82.6 in) on the standard bed. There is no Y axis, so features are cut on the centreline or with the C axis.

04 What bed lengths are offered on the CPL-3520MC?

Standard maximum turning length is 2,000 mm (78.7 in). Options are 1,350 mm (53.1 in) and 2,950 mm (116.1 in). Machine weight is 13,100 kg (28,881 lb) as standard, and 11,600 kg (25,574 lb) or 16,100 kg (35,494 lb) with the optional beds.
