Campro NT-208S

Q: How much does the Campro NT-208S cost?

The price estimate for the Campro NT-208S is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-nt-208s#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

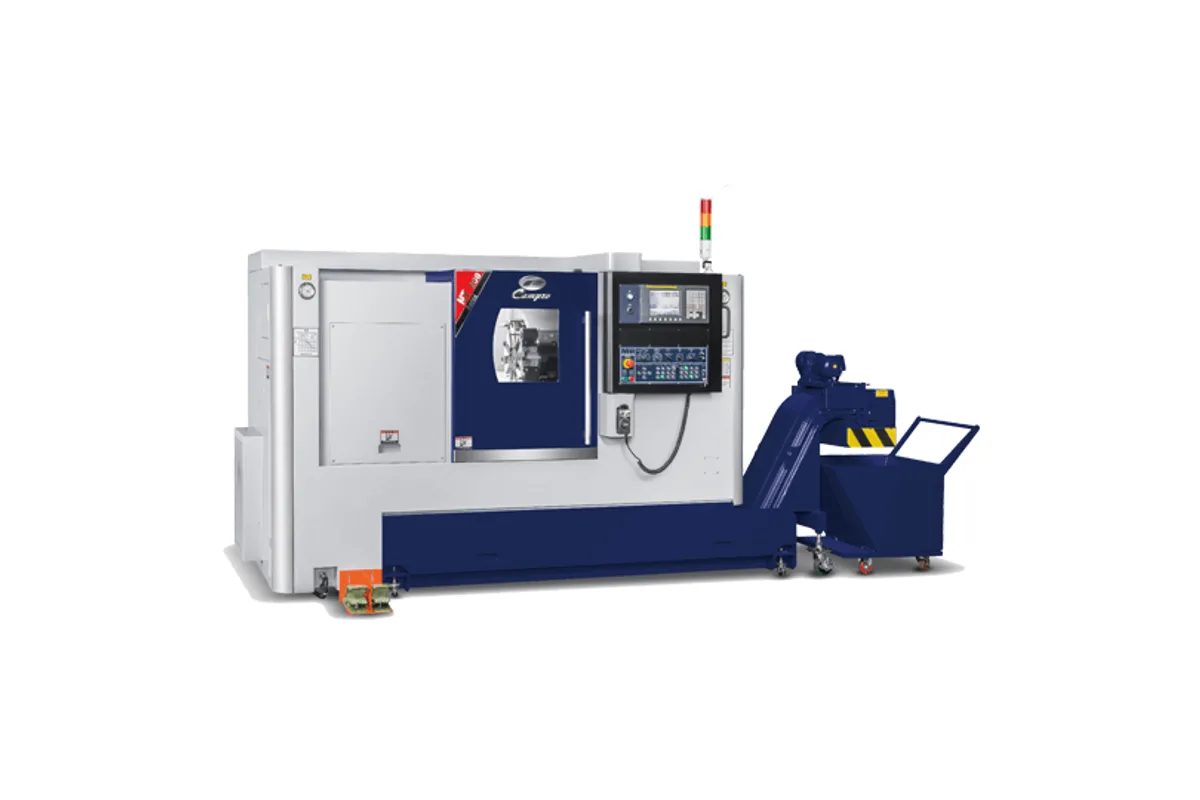

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

4,200 rpm

Spindle Power

11 / 15 kW (20 HP)

Max Turn Length

520 mm (20.4 in)

swing over bed

Ø660 mm (Ø25.9 in)

swing over carriage

Ø460 mm (Ø18.1 in)

max turning diameter

Ø400 mm (Ø15.7 in)

How much does the Campro NT-208S cost?

Price estimate

Uncertain

We do not have a price for the Campro NT-208S that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Two spindles and no live tools: the Campro NT-208S is a twin-spindle CNC lathe for parts that are turned on both ends. The main spindle carries an 8 in chuck and the sub spindle a 6 in chuck, on the box-way 30° slant bed of the NT series.

The arrangement is aimed at finishing a turned part in one handling. The main spindle, A2-6 with 11 / 15 kW (20 HP) and 4,200 rpm, does the first side. The sub spindle, A2-5 with 5.5 / 7.5 kW (10 HP) and 5,000 rpm, takes the part and presents the back for the second side. Both operations use one 12-station servo turret with □25 / Ø40 mm (O.D. / I.D.) tooling. Because the turret is not a live turret on this model, the work has to be pure turning, boring, grooving and threading. Cross holes and flats need the NT-208SM.

Capacity is Ø400 mm (Ø15.7 in) maximum turning diameter and 520 mm (20.4 in) maximum turning length. Z travel is 530 mm (20.8 in) and X travel 200 + 20 mm. Both axes rapid at 24 m/min. Bar up to the Ø52 mm draw tube hole can be fed through the main spindle.

There is no tailstock in the table, as the sub spindle occupies that end of the bed. Long shafts that need centre support are therefore a job for the NT-208 (Box), which has a tailstock with 460 mm (18.1 in) of travel.

Campro describes the NT bed as high quality cast iron with reinforced ribs. The machine is 4,254 × 2,256 x 1,842 mm (W x D x H), weighs 4,700 kg (10,361 lb) and has a power capacity of 25 kVA.

Full Specifications

Parameter	Value
Swing Over Bed	Ø660 mm (Ø25.9 in)
Swing Over Carriage	Ø460 mm (Ø18.1 in)
Max Turning Length	520 mm (20.4 in)
Max Turning Diameter	Ø400 mm (Ø15.7 in)
X Axis Travel	200 + 20 mm (7.8 in + 0.78 in)
Z Axis Travel	530 mm (20.8 in)
Rapid Traverse Xz	24 / 24 m/min (944.8 / 944.8 in/min)
Spindle Nose	A2-6
Chuck Size	8 in
Hole Through Draw Tube	Ø52 mm (Ø2.04 in)
Spindle Motor Power	11 / 15 kW (20 HP)
Max Spindle Speed	4,200 rpm
Sub Spindle Nose	A2-5
Sub Spindle Chuck Size	6 in
Sub Spindle Power	5.5 / 7.5 kW (10 HP)
Sub Spindle Speed	5,000 rpm
Turret Type	Servo
Turret Stations	12-Station
Turret Tool Shank	□25 / Ø40 mm (O.D. / I.D.)
Machine Dimensions	4,254 × 2,256 x 1,842 mm (167 in x 88 in x 72 in) (W x D x H)
Machine Weight	4,700 kg (10,361 lb)
Power Requirement	25 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Main spindle with 8 in chuck plus sub spindle with 6 in chuck for both-ends turning
Sub spindle rated 5.5 / 7.5 kW (10 HP) at up to 5,000 rpm
12-station servo turret serving both spindles
24 / 24 m/min rapids in X / Z on a box-way slant bed
Ø400 mm (Ø15.7 in) maximum turning diameter

Limitations

No driven tools or C axis; milling needs the NT-208SM
No tailstock is listed, so long shafts cannot be supported on a centre
A single turret serves both spindles, so the two sides are cut one after the other
Sub spindle chuck is 6 in, smaller than the main chuck

Best For

Turned parts finished on both ends without re-chucking by hand Bar-fed production with cut-off to the sub spindle Bushings, fittings and flanges that need no milling Reducing two lathe operations to one machine

Frequently Asked Questions

01 What is the sub spindle of the NT-208S?

An A2-5 spindle with a 6 in hydraulic chuck, a 5.5 / 7.5 kW (10 HP) motor and a speed of 5,000 rpm. It faces the main spindle, which is A2-6 with an 8 in chuck, 11 / 15 kW (20 HP) and 4,200 rpm, so a part can be passed across for back-end turning.

02 Does the NT-208S have live tooling?

No. The table lists a servo turret with 12 stations and □25 / Ø40 mm (O.D. / I.D.) tooling, without driven tool data. The NT-208SM is the version with a servo live turret, a C axis and a 5,000 rpm maximum tool speed alongside the sub spindle.

03 What size parts fit the NT-208S?

Maximum turning diameter is Ø400 mm (Ø15.7 in) and maximum turning length 520 mm (20.4 in). Swing over the bed is Ø660 mm (Ø25.9 in) and over the carriage Ø460 mm (Ø18.1 in). The hole through the draw tube of the main spindle is Ø52 mm (Ø2.04 in).

04 How does the NT-208S differ from the NT-208 (Box)?

The NT-208 (Box) is a single-spindle lathe with a 10-station hydraulic turret and a tailstock. The NT-208S replaces the tailstock with a sub spindle and has a 12-station servo turret. It weighs 4,700 kg (10,361 lb) and needs 25 kVA.
