DN Solutions Vertical Machining Centers (VMC)

DN Solutions MYNX 7500 II

Est. $130,000 - $180,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

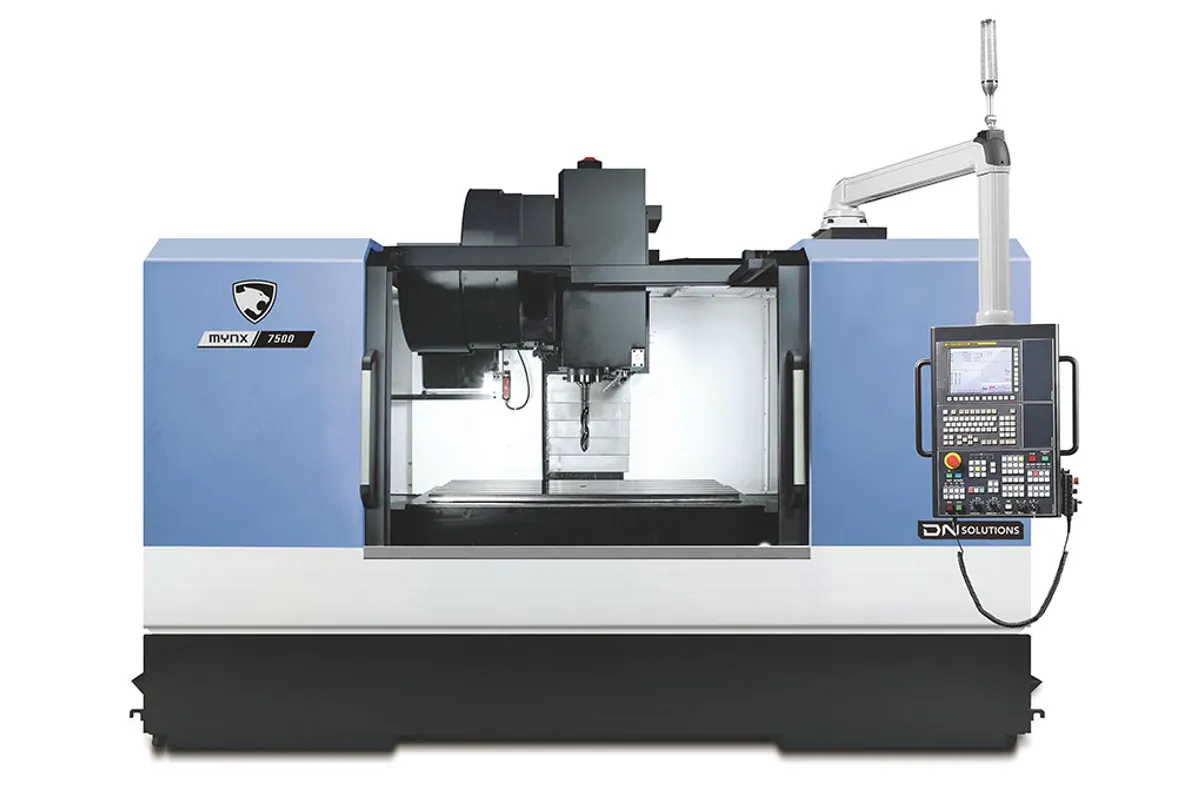

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

1,525 mm (60 in)

Y Travel

770 mm (30 in)

Z Travel

625 mm (25 in)

Max Spindle

8,000 rpm

Table Size

1,600 × 750 mm (63 × 30 in)

Spindle Power

15 kW (20 hp)

How much does the DN Solutions MYNX 7500 II cost?

Estimated price range

Est.$130,000 - $180,000

Our best estimate for a vertical machining centers (vmc) in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

The DN Solutions MYNX 7500 II is a heavy 8,000 rpm vertical machining center with 1,525 mm (60 in) of X, 770 mm (30 in) of Y and 625 mm (25 in) of Z, and a 1,600 × 750 mm (63 × 30 in) table rated for 1,500 kg (3,307 lb).

What stands out in DN's table is how much machine sits under that table. At 13,500 kg (29,762 lb) the MYNX 7500 II is 50% heavier than the MYNX 6500/II at 9,000 kg (19,842 lb), while its table load is only about 15% higher than the 1,300 kg (2,866 lb) of that machine. Z travel is the same 625 mm (25 in) on both. The added mass therefore sits in the base, saddle and column that carry a wider Y, and DN describes the series as having a highly rigid structure for heavy duty cutting.

The spindle does not scale with the frame. It is listed at 15 kW (20 hp) and 286.5 N·m (211 ft-lb), the figures DN also prints for the MYNX 5400 II. Anyone who wants more power on these travels should look at the MYNX 7500 50 II, which is listed at 18.5 kW (25 hp) with a 6,000 rpm top speed and no torque row.

On the floor the machine takes 3,900 × 4,050 mm (154 × 159 in) in length and width and stands 3,227 mm (127 in) high. Rapids are 30 m/min (1,181 ipm) on X and Y and 24 m/min (945 ipm) on Z. Y travel of 770 mm (30 in) covers the 750 mm (30 in) depth of the table with a little to spare, so plates can be faced right to their edges.

Full Specifications

Parameter	Value
X-Axis Travel	1,525 mm (60 in)
Y-Axis Travel	770 mm (30 in)
Z-Axis Travel	625 mm (25 in)
Rapid Traverse X	30 m/min (1,181 ipm)
Rapid Traverse Y	30 m/min (1,181 ipm)
Rapid Traverse Z	24 m/min (945 ipm)
Max Spindle Speed	8,000 rpm
Spindle Motor Power	15 kW (20 hp)
Spindle Torque	286.5 N·m (211 ft-lb)
Table Size	1,600 × 750 mm (63 × 30 in)
Max Table Load	1,500 kg (3,307 lb)
Floor Space Required	3,900 × 4,050 × 3,227 mm (154 × 159 × 127 in)
Machine Weight	13,500 kg (29,762 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

13,500 kg (29,762 lb) of machine weight, 50% more than the 9,000 kg (19,842 lb) MYNX 6500/II
1,525 mm (60 in) of X and 770 mm (30 in) of Y at an 8,000 rpm top speed
1,600 × 750 mm (63 × 30 in) table rated for 1,500 kg (3,307 lb)
286.5 N·m (211 ft-lb) of spindle torque for large cutters at low speed
Footprint and height are stated: 3,900 × 4,050 mm (154 × 159 in) and 3,227 mm (127 in)

Limitations

Spindle power is 15 kW (20 hp), no more than on the much smaller MYNX 5400 II
Z travel stays at 625 mm (25 in), the same as on the MYNX 6500/II
Table load rises only about 15% over the MYNX 6500/II, from 1,300 kg (2,866 lb) to 1,500 kg (3,307 lb)
DN's table for this model gives no taper, magazine capacity or tool-change time

Best For

Wide plates and mould bases up to 770 mm (30 in) across Steel work where a 13,500 kg (29,762 lb) machine steadies the cut Long parts up to 1,525 mm (60 in) that still need 8,000 rpm for finishing Fixture loads up to 1,500 kg (3,307 lb)

Frequently Asked Questions

01 Why is the MYNX 7500 II so much heavier than the MYNX 6500/II?

DN's table gives the weights, not the reason: 13,500 kg (29,762 lb) for the MYNX 7500 II and 9,000 kg (19,842 lb) for the MYNX 6500/II. X grows from 1,270 mm (50 in) to 1,525 mm (60 in) and Y from 670 mm (26 in) to 770 mm (30 in), while Z and the spindle rows stay the same on the MYNX 6500/II and the MYNX 7500 II. A wider Y needs a deeper base and saddle, which is where the mass goes.

02 Does the MYNX 7500 II have a stronger spindle than the smaller Mynx models?

No. It is listed at 8,000 rpm, 15 kW (20 hp) and 286.5 N·m (211 ft-lb), and the MYNX 5400 II and MYNX 6500/II carry the same three figures. The MYNX 7500 50 II is the model with more power on these travels: 18.5 kW (25 hp) at a top speed of 6,000 rpm.

03 How much room does the MYNX 7500 II need?

DN lists 3,900 × 4,050 mm (154 × 159 in) in length and width, 3,227 mm (127 in) in height and 13,500 kg (29,762 lb). The floor has to carry that weight plus up to 1,500 kg (3,307 lb) on the table, and the route into the building has to clear the height.

04 What size of plate can the MYNX 7500 II machine in one setup?

The table is 1,600 × 750 mm (63 × 30 in). X travel is 1,525 mm (60 in), a little less than the table length, and Y travel is 770 mm (30 in), a little more than the table depth. A plate that fills the table can be reached across its full depth but not quite to both ends without moving it.
