Campbell Grinder 1000C1000

Specs verified 2026-10-05 · campbellgrinder.com Updated 2026-10-05

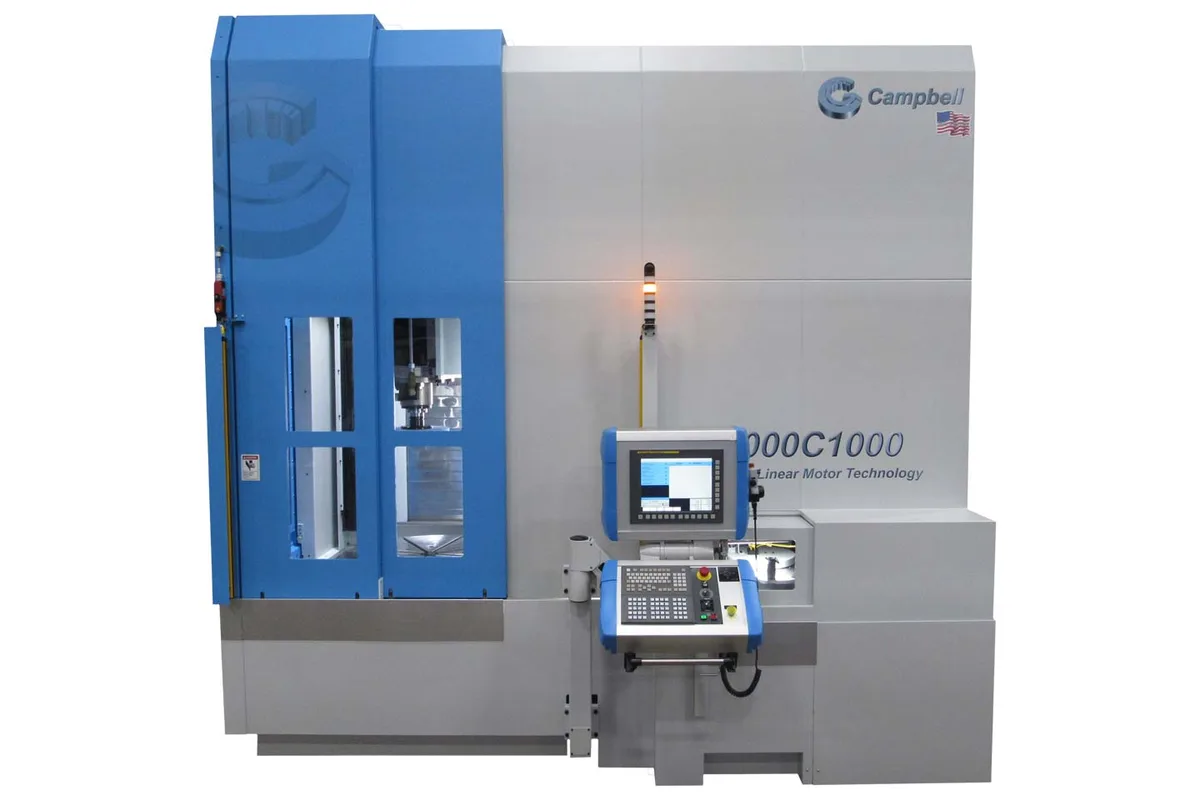

Image: campbellgrinder.com, Campbell Grinder

Key Specifications

Spindle Power

up to 40 HP (29.8 kW)

swing diameter

1,143 mm (45.0 in)

max part height

1,016 mm (40.0 in)

axes

X, Z, B, C

control

Fanuc 32; up to 4 axis simultaneous contouring

x axis accuracy

5 microns (0.0002 in)

How much does the Campbell Grinder 1000C1000 cost?

Price estimate

Uncertain

We do not have a price for the Campbell Grinder 1000C1000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campbell Grinder 1000C1000 is a CNC vertical cylindrical grinder for parts up to 1,143 mm (45.0 in) in swing diameter and 1,016 mm (40.0 in) in height. It sits second in its series and is the first size with a full metre of part height.

Campbell builds the series around a traveling column. The X-axis bed carries 45 mm roller guideways, and the axes are driven by liquid-cooled linear motors with absolute encoders in place of ball screws, so there is no screw to wear or to introduce backlash. Linear glass scales close the loop on every axis. For the X and Z axes the catalogue states an accuracy of 5 microns (0.0002 in).

The work turns on the C axis, a table spindle specified at 2.5 microns (0.0001 in) of runout, radial and axial, measured 305 mm (12 in) above the table top. The spindle swivel, the B axis, is optional; Campbell drives it with dual servos to eliminate backlash and gives it 5 microns (0.0002 in) of runout and 10 arc seconds of accuracy. With it fitted, the Fanuc 32 control contours with up to 4 axes simultaneously.

Spindle power is listed as up to 40 HP (29.8 kW). The machine measures 3.56 m x 3.89 m x 3.89 m, and the grind zone is fully sealed behind labyrinth door seals. Buyers should treat the table as a starting point, since Campbell states that the traveling column configuration is customized to each customer's requirements.

Full Specifications

Parameter	Value
Swing Diameter	1,143 mm (45.0 in)
Max Part Height	1,016 mm (40.0 in)
Spindle Motor Power	up to 40 HP (29.8 kW)
Axes	X, Z, B, C
CNC Control	Fanuc 32; up to 4 axis simultaneous contouring
X Axis Accuracy	5 microns (0.0002 in)
Z Axis Accuracy	5 microns (0.0002 in)
C Axis Runout	2.5 microns (0.0001 in) radial and axial, measured 305 mm (12 in) above the table top
B Axis Spindle Swivel	Optional; run out 5 microns (0.0002 in) radial and axial, accuracy 10 arc seconds
Machine Dimensions	3.56 m x 3.89 m x 3.89 m (140.2 in x 153.1 in x 153.1 in) (D x L x H)

Specifications sourced from campbellgrinder.com — verified 2026-10-05

Strengths & Limitations

Strengths

Liquid-cooled linear motors with absolute encoders on the linear axes, with no ball screws
Takes parts up to 1,143 mm (45.0 in) in swing and 1,016 mm (40.0 in) tall
X and Z accuracy of 5 microns (0.0002 in), with linear glass scales on all axes
Optional B axis with a dual-servo drive, accurate to 10 arc seconds

Limitations

Spindle power is up to 40 HP (29.8 kW), where the 1000C1500 is listed with up to 60 HP (44.7 kW)
Needs a space of 3.56 m x 3.89 m and 3.89 m of height
Tool and nozzle changer, part probe and the contouring C-axis are options

Best For

OD, ID and face grinding of cylindrical parts around one metre in diameter Bearing rings, with the optional CNC radius dresser for bearing grinding Taper and contour work using the optional B axis

Frequently Asked Questions

01 What is the capacity of the 1000C1000?

Swing diameter is 1,143 mm (45.0 in) and part height is 1,016 mm (40.0 in). The smaller 1000C500 swings 600 mm (23.6 in), and the 1000C1500 swings 1,651 mm (65.0 in) at the same part height.

02 How are the axes of the 1000C1000 driven?

By liquid-cooled linear motors with absolute encoders. Campbell's catalogue stresses that there are no ball screws and no backlash in the linear axes, and the rails are 45 mm roller guideways. Linear glass scales are fitted on all axes, and the stated accuracy of X and Z is 5 microns (0.0002 in).

03 What control does the 1000C1000 use?

A Fanuc 32 CNC with up to 4 axis simultaneous contouring is the listed control, and the standard features on the product page name a Fanuc CNC control as well. A Siemens 840D control appears in the option list.

04 Is the B axis standard on the 1000C1000?

No. The specification notes mark the B axis spindle swivel as optional, even though the axes row reads X, Z, B, C. When fitted it has 5 microns (0.0002 in) of runout, radial and axial, and an accuracy of 10 arc seconds.
