Campbell Grinder 1000C1500

Specs verified 2026-10-05 · campbellgrinder.com Updated 2026-10-05

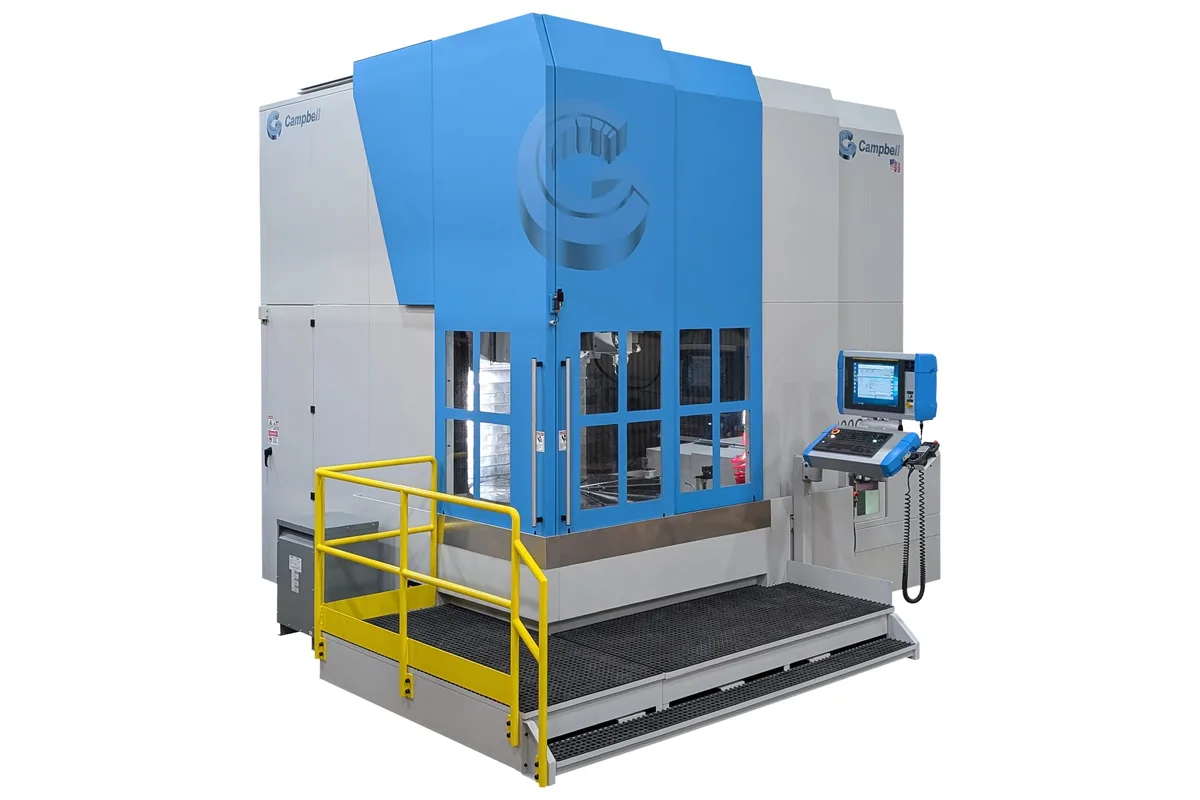

Image: campbellgrinder.com, Campbell Grinder

Key Specifications

Spindle Power

up to 60 HP (44.7 kW)

swing diameter

1,651 mm (65.0 in)

max part height

1,016 mm (40.0 in)

axes

X, Z, B, C

control

Fanuc 32; up to 4 axis simultaneous contouring

x axis accuracy

5 microns (0.0002 in)

How much does the Campbell Grinder 1000C1500 cost?

Price estimate

Uncertain

We do not have a price for the Campbell Grinder 1000C1500 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campbell Grinder 1000C1500 is a CNC vertical cylindrical grinder with a swing diameter of 1,651 mm (65.0 in) and a part height of 1,016 mm (40.0 in). It is the size at which its series is first listed with a grinding spindle of up to 60 HP (44.7 kW).

That power matters because of what Campbell offers around the spindle. The catalogue describes spindles of up to 60 hp and speeds up to 90,000 rpm, with direct or belt drives, automatic drawbars and a choice of tool interfaces, each with ceramic hybrid bearings and liquid cooling. Several spindles can be mounted on the same head, which is how one machine carries a long-nose ID spindle next to an OD spindle.

Dressing is equally open. Disk, roll form and CNC radius dressers are on the option list, and for demanding materials Campbell offers CDCF, continuous dress continuous feed, which keeps the wheel dressed throughout grinding. A gap eliminator, a wheel balance system and a tool probe are available to shorten the non-cutting parts of the cycle.

The basic machine follows the rest of the range: X and Z axes accurate to 5 microns (0.0002 in), a C axis table with 2.5 microns (0.0001 in) of runout, an optional B axis and a Fanuc 32 control. Overall dimensions for this size are best taken from a layout drawing supplied by Campbell.

Full Specifications

Parameter	Value
Swing Diameter	1,651 mm (65.0 in)
Max Part Height	1,016 mm (40.0 in)
Spindle Motor Power	up to 60 HP (44.7 kW)
Axes	X, Z, B, C
CNC Control	Fanuc 32; up to 4 axis simultaneous contouring
X Axis Accuracy	5 microns (0.0002 in)
Z Axis Accuracy	5 microns (0.0002 in)
C Axis Runout	2.5 microns (0.0001 in) radial and axial, measured 305 mm (12 in) above the table top
B Axis Spindle Swivel	Optional; run out 5 microns (0.0002 in) radial and axial, accuracy 10 arc seconds

Specifications sourced from campbellgrinder.com — verified 2026-10-05

Strengths & Limitations

Strengths

Grinding spindle of up to 60 HP (44.7 kW)
Swing diameter of 1,651 mm (65.0 in) with 1,016 mm (40.0 in) of part height
Spindle options reach speeds up to 90,000 rpm, with direct or belt drives and automatic drawbars
Multiple grinding spindles can be mounted on the same head
CDCF dressing is available for demanding materials

Limitations

Part height is 1,016 mm (40.0 in), no more than the 1000C1000 offers
Disk, roll form and radius dressers, the tool changer and the tool probe are options
The B axis has to be ordered; it is not part of the base machine

Best For

Large rings and casings up to 1,651 mm (65.0 in) in swing Jobs that combine OD and ID grinding with different spindles on one head Heavy stock removal with continuous dressing

Frequently Asked Questions

01 What does the 1000C1500 add over the 1000C1000?

Swing and power. The 1000C1500 swings 1,651 mm (65.0 in) against 1,143 mm (45.0 in) for the 1000C1000, and its spindle is listed as up to 60 HP (44.7 kW) where the 1000C1000 has up to 40 HP (29.8 kW). Part height is 1,016 mm (40.0 in) on both.

02 What spindle options does Campbell offer on the 1000C1500?

The table lists a spindle of up to 60 HP (44.7 kW) for this size. The catalogue adds that spindles are available with speeds up to 90,000 rpm, direct or belt drives, automatic drawbars and a variety of tool interfaces, all with ceramic hybrid bearings and liquid cooling. Multiple grinding spindles on the same head are an option.

03 What is CDCF on the 1000C1500?

CDCF stands for continuous dress continuous feed. Campbell describes it as a system that keeps the wheel dressed throughout grinding, intended for high-accuracy work in demanding materials. It is one of several dressing choices, next to disk, roll form and CNC radius dressers.

04 How accurate is the 1000C1500?

The X and Z axes are each specified at 5 microns (0.0002 in). The C axis table spindle runs out no more than 2.5 microns (0.0001 in), radial and axial, measured 305 mm (12 in) above the table top. The optional B axis has an accuracy of 10 arc seconds.
