Campbell Grinder 1000C500

Q: How much does the Campbell Grinder 1000C500 cost?

The price estimate for the Campbell Grinder 1000C500 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campbell-grinder-1000c500#price; the request is passed to Campbell Grinder or an authorised dealer.

Specs verified 2026-10-05 · campbellgrinder.com Updated 2026-10-05

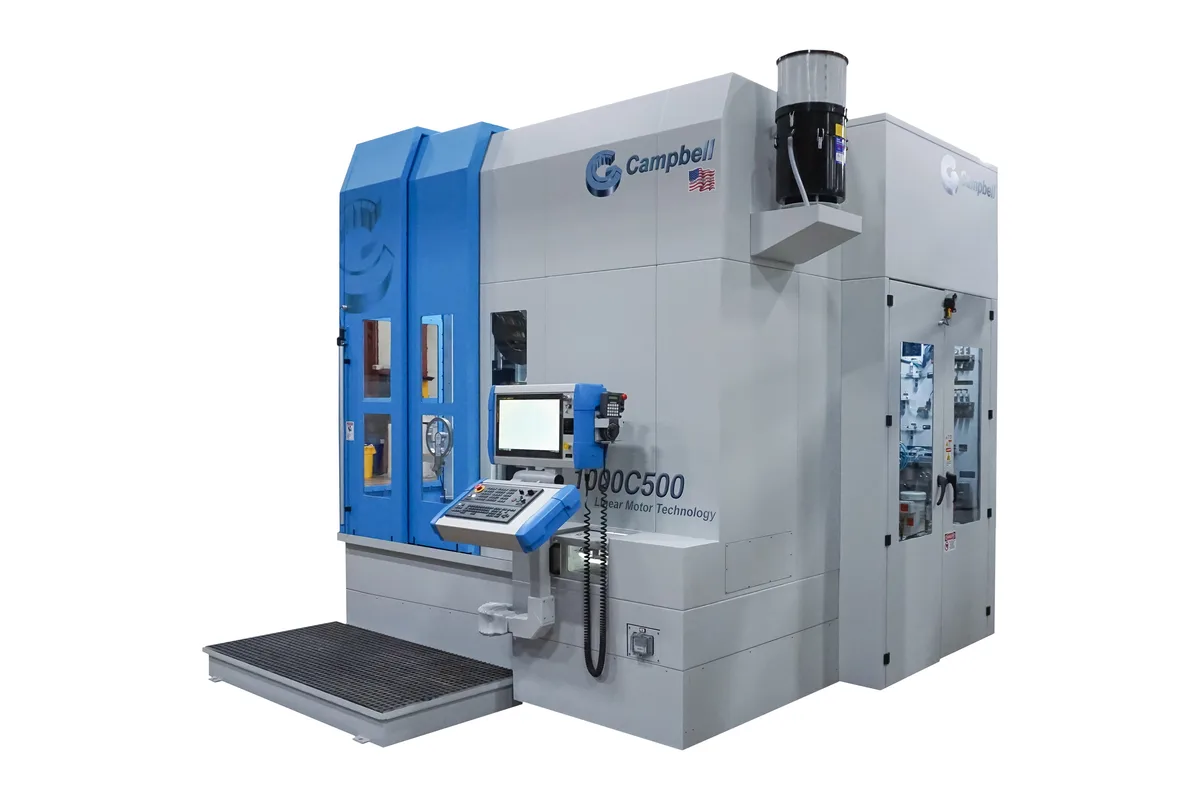

Campbell Grinder 1000C500 vertical grinder

Image: campbellgrinder.com, Campbell Grinder

Key Specifications

Spindle Power

up to 25 HP (18.6 kW)

swing diameter

600 mm (23.6 in)

max part height

500 mm (19.7 in)

axes

X, Z, B, C

control

Fanuc 32; up to 4 axis simultaneous contouring

x axis accuracy

5 microns (0.0002 in)

How much does the Campbell Grinder 1000C500 cost?

Price estimate

Uncertain

We do not have a price for the Campbell Grinder 1000C500 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campbell Grinder 1000C500 is the smallest of the 1000C series of CNC vertical cylindrical grinders, with a swing diameter of 600 mm (23.6 in) and room for parts 500 mm (19.7 in) tall. Like its larger siblings it grinds OD, ID and faces with the part standing on a rotary table under a traveling column.

The axes are X and Z for the column and slide, C for the table and, where ordered, B for the spindle swivel; the control is a Fanuc 32 with up to 4 axis simultaneous contouring. X and Z use linear motor technology on roller ways with linear glass scales, and Campbell rates both at 5 microns (0.0002 in). Table runout is given as 2.5 microns (0.0001 in), radial and axial, measured 305 mm (12 in) above the table top.

Spindle power on this size is listed as up to 25 HP (18.6 kW). That suits rings, sleeves and bearing components within the 600 mm swing better than heavy stock removal, for which the 1000C1500 and 1000C2000 are listed with up to 60 HP (44.7 kW). Campbell's page for the model also names turning capabilities as a new feature, which lets hard turning and grinding share a setup.

At 3.15 m x 3.43 m x 3.56 m in depth, length and height it is also the easiest of the range to place. The option list is the long one of the series: B-axis, tool and nozzle changer, contouring C-axis, magnetic chuck, hydrostatic table bearing, wireless part probe, and a Siemens 840D control in place of the Fanuc.

Full Specifications

Parameter	Value
Swing Diameter	600 mm (23.6 in)
Max Part Height	500 mm (19.7 in)
Spindle Motor Power	up to 25 HP (18.6 kW)
Axes	X, Z, B, C
CNC Control	Fanuc 32; up to 4 axis simultaneous contouring
X Axis Accuracy	5 microns (0.0002 in)
Z Axis Accuracy	5 microns (0.0002 in)
C Axis Runout	2.5 microns (0.0001 in) radial and axial, measured 305 mm (12 in) above the table top
B Axis Spindle Swivel	Optional; run out 5 microns (0.0002 in) radial and axial, accuracy 10 arc seconds
Machine Dimensions	3.15 m x 3.43 m x 3.56 m (124.0 in x 135.0 in x 140.2 in) (D x L x H)

Specifications sourced from campbellgrinder.com — verified 2026-10-05

Strengths & Limitations

Strengths

Compact for a vertical grinder: 3.15 m x 3.43 m x 3.56 m
X and Z axes with linear motor technology and linear glass scales, each rated at 5 microns (0.0002 in)
Table runout of 2.5 microns (0.0001 in), radial and axial
Turning capabilities are listed as a new feature for this model

Limitations

Swing is 600 mm (23.6 in) and part height 500 mm (19.7 in), the smallest envelope of the series
Spindle power is listed only up to 25 HP (18.6 kW)
The B-axis spindle swivel is an option, although the axes row lists X, Z, B, C

Best For

ID, OD and face grinding of rings and bearing parts within a 600 mm swing Shops that want turning and grinding in one vertical setup Floors where a larger vertical grinder will not fit

Frequently Asked Questions

01 What size parts does the 1000C500 grind?

Parts up to 600 mm (23.6 in) in swing diameter and 500 mm (19.7 in) in height. It is the smallest version in the series table; the next size, the 1000C1000, swings 1,143 mm (45.0 in) and takes parts 1,016 mm (40.0 in) tall.

02 Which axes does the 1000C500 have?

The table lists X, Z, B and C. X and Z are the linear axes, C is the rotary table and B is the spindle swivel, which Campbell marks as optional. The Fanuc 32 control can contour with up to 4 axes at once.

03 How accurate is the 1000C500?

Campbell gives 5 microns (0.0002 in) for both the X axis and the Z axis. The C axis table spindle is specified by runout: 2.5 microns (0.0001 in), radial and axial, measured 305 mm (12 in) above the table top. With the optional B axis, the swivel runout is 5 microns (0.0002 in) and its accuracy 10 arc seconds.

04 Can the 1000C500 turn as well as grind?

Campbell's page for this model lists turning capabilities under new features, and turning also appears in the option list of the series catalogue together with milling and drilling. Confirm with Campbell which turning tools, tool changer and control options your part needs.
