Campbell Grinder 1000L800

Q: How much does the Campbell Grinder 1000L800 cost?

The price estimate for the Campbell Grinder 1000L800 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campbell-grinder-1000l800#price; the request is passed to Campbell Grinder or an authorised dealer.

Specs verified 2026-10-05 · campbellgrinder.com Updated 2026-10-05

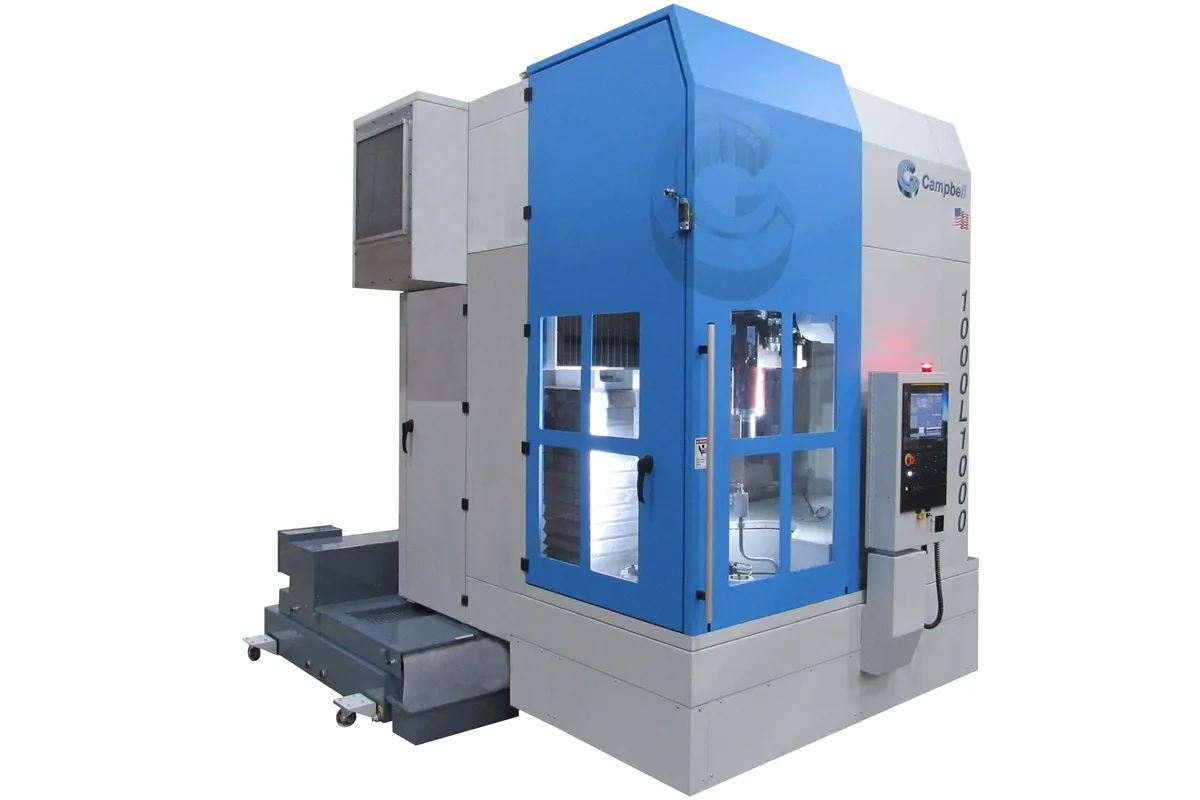

Campbell Grinder 1000 LEAN series vertical grinder

Image: campbellgrinder.com, Campbell Grinder

Key Specifications

Tool Capacity

6 tools

Spindle Power

14.9 kW (20 HP)

max grinding diameter

750 mm (29.5 in)

max part height

865 mm (34.00 in) part and fixture

max part weight

910 kg (2,000 lbs) part and fixture

max od grind height

865 mm (34.00 in)

How much does the Campbell Grinder 1000L800 cost?

Price estimate

Uncertain

We do not have a price for the Campbell Grinder 1000L800 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campbell Grinder 1000L800 is the smaller version of the 1000LEAN, a CNC vertical grinder that Campbell builds in a standard size for job shops instead of engineering it to order. It grinds cylindrical parts up to 750 mm (29.5 in) in diameter and 865 mm (34.00 in) tall, with part and fixture weighing up to 910 kg (2,000 lbs).

Where Campbell's larger vertical grinders are configured around a customer's part, this one is fixed: a 14.9 kW (20 HP) grinding spindle running from 0 to 8,500 RPM, an HSK 80 tool connection and an automatic wheel changer for 6 tools as standard. Wheels are up to 305 mm in diameter and 50 mm wide, on arbors up to 203 mm (8.00 in) long. The wheel is dressed by a single-point diamond system.

Travels are 1,000 mm (39 in) in X and 865 mm (34 in) in Z. The B axis swivels the spindle through 135 degrees, infinitely variable, and the C axis table turns at 0-250 RPM in either direction and can position. That combination covers OD, ID, face and tapered features.

Much of the catalogue is about working at the machine. Dual access doors give 180° of access around the table, the machine can be loaded by crane or by forklift, and LED lighting and a washdown nozzle are built in. The base is a one-piece fabrication with an integrated floor pan, and the machine stands 137 in (3,480 mm) high. Controls are by Fanuc.

Full Specifications

Parameter	Value
Max Grinding Diameter	750 mm (29.5 in)
Max Part Height	865 mm (34.00 in) part and fixture
Max Part Weight	910 kg (2,000 lbs) part and fixture
Max OD Grind Height	865 mm (34.00 in)
Spindle Speed	0-8,500 RPM
Spindle Motor Power	14.9 kW (20 HP)
Tool Connection	HSK 80
Max Arbor Length	203 mm (8.00 in)
Wheel Size	305 mm dia x 50 mm wide (12 in dia x 2 in wide) max.
Tool Capacity	6 tools
Max Tool Length	200 mm (8 in)
Z Axis Travel	865 mm (34 in)
B Axis Range	135 degrees (infinitely variable)
CNC Control	Fanuc front end controls
Machine Height	137 in (3,480 mm)
X Axis Travel	1,000 mm (39 in)
C Axis Speed	0-250 RPM, reversable and positioning

Specifications sourced from campbellgrinder.com — verified 2026-10-05

Strengths & Limitations

Strengths

Automatic wheel changer for 6 tools is standard
B axis swivels through 135 degrees for tapers and faces
Dual access doors give 180° of access around the table, with crane and forklift loading
Carries part and fixture up to 910 kg (2,000 lbs)
Fixed, standard specification with a 14.9 kW (20 HP), 8,500 RPM spindle

Limitations

Spindle power is 14.9 kW (20 HP), well below the up to 40 HP (29.8 kW) of the 1000C1000
Maximum wheel size is 305 mm in diameter and 50 mm wide
Sold in one configuration; rotary disk dresser, part probing and mag chuck are the main options
Grinding diameter is limited to 750 mm (29.5 in); the 1000L1000 has 1,100 mm (43.5 in) of X travel for larger parts

Best For

Job shops grinding rings and sleeves up to 750 mm (29.5 in) in diameter Mixed OD, ID, face and taper work in one clamping Parts with fixtures up to 910 kg (2,000 lbs), loaded by forklift or crane

Frequently Asked Questions

01 What are the part limits of the 1000L800?

Grinding diameter up to 750 mm (29.5 in), part and fixture height up to 865 mm (34.00 in), and part and fixture weight up to 910 kg (2,000 lbs). The maximum height for OD grinding is the same 865 mm (34.00 in).

02 What spindle and tooling does the 1000L800 have?

A 14.9 kW (20 HP) grinding spindle with a speed range of 0-8,500 RPM and an HSK 80 tool connection. The tool changer holds 6 tools. Wheels can be up to 305 mm in diameter and 50 mm wide, and the maximum arbor length is 203 mm (8.00 in).

03 How does the 1000L800 differ from the 1000L1000?

Mainly in X travel and table speed. The 1000L800 has 1,000 mm (39 in) of X travel and a C axis of 0-250 RPM. The 1000L1000 has 1,100 mm (43.5 in) of X travel and a C axis of 0-200 RPM. Spindle, tool changer, Z travel and part weight are the same in both columns of the table.

04 Is the 1000L800 a custom machine?

No. Campbell states that the machine comes standard in one size, with the rotary table and all linear axes sized specifically. The automatic wheel changer and the single-point diamond dressing system are standard, and the option list is short: rotary disk dresser, part probing, light turning, mag chuck and additional wheel arbors.
