Baykal BLE PRO

Specs verified 2026-10-05 · baykal.com.tr Updated 2026-10-05

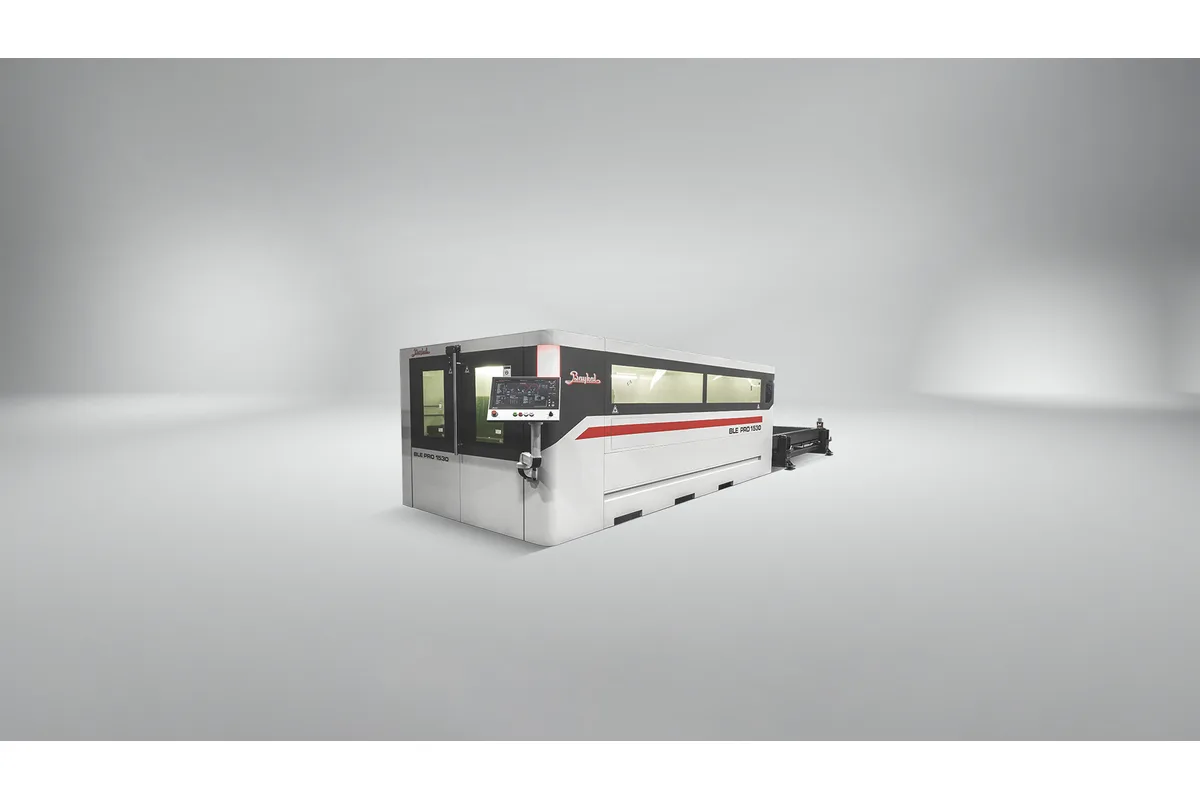

Image: baykal.com.tr, Baykal

Key Specifications

Rapid Traverse

95 m/min

Accuracy

± 0.03 mm

Repeatability

± 0.04 mm

working area width

1,500 mm (59.1 in)

working area length

3,000 mm (118.1 in)

laser power

1 kW - 6 kW

How much does the Baykal BLE PRO cost?

Price estimate

Uncertain

We do not have a price for the Baykal BLE PRO that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Baykal BLE PRO is a compact enclosed fiber laser with a motorized shuttle table, offered from 1 kW to 6 kW. The technical data sheet describes the 1,500 mm (59.1 in) by 3,000 mm (118.1 in) working area; Baykal's product page adds that the machine can also be ordered in 2000mm x 4000mm and 2000mm x 6000mm formats.

Two things separate it from the single-table BLE. The transfer table is a motorized automatic exchange, so one table is loaded or unloaded while the other is being cut, and each table takes 1,250 kg (2,756 lb). Acceleration rises to 1.8G (18 m/s²). Rapid traverse stays at 95 m/min and vector speed at 135 m/min, on a Wittenstein rack and pinion with Beckhoff rotary servos, and the accuracy figures are ± 0.03 mm positioning and ± 0.04 mm repeatability.

The standard head is a Precitec ProCutter Thunder, with the ProCutter 2.0 as the option. Resonators come from IPG, nLIGHT or Max Photonics. At 6 kW the capacity table reaches 25 mm (0.98 in) in mild steel, 16 mm (0.63 in) in stainless and 12 mm (0.47 in) in aluminum.

Baykal says the whole machine can be packed in one 40OT container, which matters for freight and for getting it into a building. The welded steel frame, the interior camera and the magnetically locked sliding front door are all described on the product page. An automatic nozzle changer and the fume extractor are options, and the Compact Tower provides automatic loading and unloading for those who want to run it unattended.

Full Specifications

Parameter	Value
Working Area Width	1,500 mm (59.1 in)
Working Area Length	3,000 mm (118.1 in)
Laser Power	1 kW - 6 kW
Laser Source	IPG, nLIGHT or Max Photonics
Cutting Head	Precitec ProCutter Thunder (Standard); Precitec ProCutter 2.0 (Optional)
CNC Control	Beckhoff CNC (18.5" TFT, Windows 10)
Motors and Drives	Beckhoff (Rotary Servo)
Motion System	Rack and Pinion (Wittenstein)
Rapid Traverse Rate	95 m/min
Vector Speed	135 m/min
Acceleration	1.8G (18 m/s²)
Positioning Accuracy	± 0.03 mm
Repeatability	± 0.04 mm
Programmable Feed Rate	Up to 50 m/min
Transfer Table	Motorized - Automatic Exchange
Max Table Load	1,250 kg (2,756 lb) for each table
Nesting Software	LANTEK Expert Cut II or Metalix AutoNest PRO
Nozzle Cleaning and Calibration	Automatic
Automatic Nozzle Changer	Optional
Fume Extractor	Optional
Max Cutting Thickness Mild Steel	12 mm (0.47 in) at 1 kW; 20 mm (0.79 in) at 3 kW; 25 mm (0.98 in) at 6 kW
Max Cutting Thickness Stainless Steel	5 mm (0.20 in) at 1 kW; 8 mm (0.31 in) at 3 kW; 16 mm (0.63 in) at 6 kW
Max Cutting Thickness Aluminum	3 mm (0.12 in) at 1 kW; 6 mm (0.24 in) at 3 kW; 12 mm (0.47 in) at 6 kW
Max Cutting Thickness Copper	2 mm (0.08 in) at 1 kW; 3 mm (0.12 in) at 3 kW; 8 mm (0.31 in) at 6 kW
Max Cutting Thickness Brass	3 mm (0.12 in) at 1 kW; 4 mm (0.16 in) at 3 kW; 10 mm (0.39 in) at 6 kW

Specifications sourced from baykal.com.tr — verified 2026-10-05

Strengths & Limitations

Strengths

Motorized automatic exchange table: one table is loaded while the other is cut
Power range from 1 kW to 6 kW, with 25 mm (0.98 in) mild steel capacity at 6 kW
1.8G (18 m/s²) acceleration with 95 m/min rapid traverse
Each table carries 1,250 kg (2,756 lb)
Baykal states the whole machine packs into one 40OT container
Can be automated with Baykal's Compact Tower for loading and unloading

Limitations

Programmable feed rate tops out at 50 m/min, half the 100 m/min of the BLS PRO
The automatic nozzle changer and the fume extractor are options
The ProCutter 2.0 head is an option; the standard head is the ProCutter Thunder
Power stops at 6 kW, so thicker plate work belongs on the BLS PRO

Best For

Job shops cutting 1,500 mm (59.1 in) by 3,000 mm (118.1 in) sheet in two-table rhythm Mixed mild steel, stainless and aluminum work up to 6 kW Sites where the machine must arrive in a single container Shops planning to add tower automation later

Frequently Asked Questions

01 What is the difference between the BLE PRO and the BLE?

The BLE PRO has a motorized automatic exchange table where the BLE has a single table, carries 1,250 kg (2,756 lb) per table against 750 kg (1,653 lb) on the BLE, and accelerates at 1.8G (18 m/s²). Its power range runs to 6 kW; the BLE ends at 3 kW.

02 Which sheet formats can the BLE PRO be ordered in?

The data sheet shows a working area 1,500 mm (59.1 in) wide and 3,000 mm (118.1 in) long. Baykal's product page lists three formats: 1500mm x 3000mm, 2000mm x 4000mm and 2000mm x 6000mm. Confirm the table load for the larger formats with Baykal.

03 How thick can the BLE PRO cut?

It depends on the source. Mild steel goes from 12 mm (0.47 in) at 1 kW to 20 mm (0.79 in) at 3 kW and 25 mm (0.98 in) at 6 kW. Stainless reaches 16 mm (0.63 in) and aluminum 12 mm (0.47 in) at 6 kW. Baykal notes these depend on material and parameters.

04 What cutting head and control does the BLE PRO have?

The standard head is a Precitec ProCutter Thunder and the ProCutter 2.0 is optional. The control is a Beckhoff CNC with an 18.5" TFT screen, driving Beckhoff rotary servos through a Wittenstein rack and pinion. Nozzle cleaning and calibration are automatic.
