Baykal BLE CFS

Specs verified 2026-10-05 · baykal.com.tr Updated 2026-10-05

Image: baykal.com.tr, Baykal

Key Specifications

Rapid Traverse

95 m/min

Accuracy

± 0.03 mm

Repeatability

± 0.04 mm

working area width

1,500 mm (59.1 in)

working area length

1,500 mm (59.1 in)

laser power

1 kW - 4 kW

How much does the Baykal BLE CFS cost?

Price estimate

Uncertain

We do not have a price for the Baykal BLE CFS that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

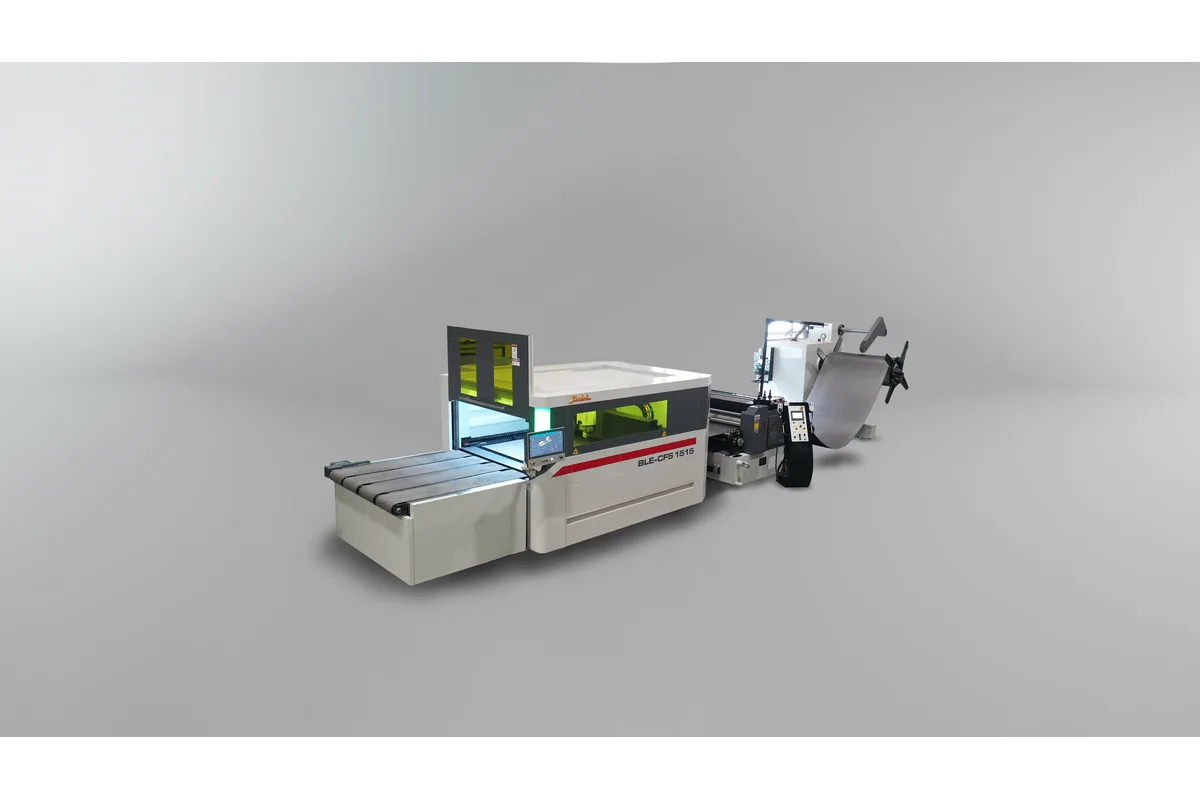

The Baykal BLE CFS is a coil fed fiber laser cutting system: a 1,500 mm (59.1 in) square laser cell with a decoiler and a straightener feeder in front of it, so that parts are cut from strip pulled off a coil instead of from stacked sheets. Laser power is 1 kW to 4 kW.

The coil line is what defines the machine. The decoiler takes 6,000 kg (13,228 lb) on a single hydraulic expansion drum with a hydraulic hold down arm, a coil loading car and a 3.0 kW (4.0 hp) AC motor. Loop control uses a distance controlled laser sensor. Coil centering is manual. Behind it, 7 straightener rolls of 100 mm (3.9 in) diameter, arranged 4 bottom and 3 top, flatten the strip, and 2 feeder rolls of 125 mm (4.9 in) with pneumatic pressure adjustment push it into the cutting area.

The laser side is close to the smaller Baykal machines. Rapid traverse is 95 m/min, vector speed 135 m/min and acceleration 1.5G (15 m/s²), on a Wittenstein rack and pinion with Beckhoff rotary servos. Positioning accuracy is ± 0.03 mm and repeatability ± 0.04 mm. The head is a Precitec ProCutter Thunder as standard or a ProCutter 2.0 as the option.

Coil stock is usually thin, and the capacity table is generous for it: 12 mm (0.47 in) mild steel at 1 kW and 22 mm (0.87 in) at 4 kW, with stainless at 5 mm (0.20 in) and 12 mm (0.47 in). What the decoiler and straightener can physically feed will be the tighter limit, and the data sheet gives no strip thickness range, so ask for it.

Full Specifications

Parameter	Value
Working Area Width	1,500 mm (59.1 in)
Working Area Length	1,500 mm (59.1 in)
Laser Power	1 kW - 4 kW
Laser Source	IPG, nLIGHT or Max Photonics
Cutting Head	Precitec ProCutter Thunder (Standard); Precitec ProCutter 2.0 (Optional)
CNC Control	Beckhoff CNC (18.5" TFT, Windows 10)
Motors and Drives	Beckhoff (Rotary Servo)
Motion System	Rack and Pinion (Wittenstein)
Rapid Traverse Rate	95 m/min
Vector Speed	135 m/min
Acceleration	1.5G (15 m/s²)
Positioning Accuracy	± 0.03 mm
Repeatability	± 0.04 mm
Programmable Feed Rate	Up to 50 m/min
Transfer Table	Single Table
Max Table Load	750 kg (1,653 lb) for each table
Nesting Software	LANTEK Expert Cut II / Metalix AutoNest PRO
Nozzle Cleaning and Calibration	Automatic
Fume Extractor	Optional
Decoiler Coil Loading Capacity	6,000 kg (13,228 lb)
Decoiler Drum	Single, Hydraulic Expansion
Decoiler Coil Hold Down Arm	Hydraulic
Decoiler Motor Power	3.0 kW (4.0 hp) AC
Decoiler Loop Control	Distance Controlled Laser Sensor
Decoiler Coil Loading Car	Yes
Straightener Rolls	7 (4 Bottom / 3 Top)
Straightener Roll Diameter	100 mm (3.9 in)
Feeder Rolls	2
Feeder Roll Diameter	125 mm (4.9 in)
Feeder Roll Pressure Adjustment	Pneumatic
Max Cutting Thickness Mild Steel	12 mm (0.47 in) at 1 kW; 16 mm (0.63 in) at 2 kW; 22 mm (0.87 in) at 4 kW
Max Cutting Thickness Stainless Steel	5 mm (0.20 in) at 1 kW; 6 mm (0.24 in) at 2 kW; 12 mm (0.47 in) at 4 kW
Max Cutting Thickness Aluminum	3 mm (0.12 in) at 1 kW; 4 mm (0.16 in) at 2 kW; 10 mm (0.39 in) at 4 kW

Specifications sourced from baykal.com.tr — verified 2026-10-05

Strengths & Limitations

Strengths

Cuts directly from coil: decoiler rated 6,000 kg (13,228 lb) with a coil loading car
7 straightener rolls (4 Bottom / 3 Top) of 100 mm (3.9 in) diameter ahead of the cutting area
Loop control by a distance controlled laser sensor
Laser power from 1 kW to 4 kW with a Precitec ProCutter Thunder head as standard
Automatic nozzle cleaning and calibration

Limitations

Coil centering is manual, so each new coil is lined up by the operator
The data sheet gives no strip thickness or strip width range for the straightener feeder
Single table with a 750 kg (1,653 lb) load; no exchange table is listed
The fume extractor is optional

Best For

Repeat parts cut continuously from coil instead of sheet Thin-gauge production where sheet handling is the bottleneck Coils up to 6,000 kg (13,228 lb) Parts that fit a 1,500 mm (59.1 in) square working area

Frequently Asked Questions

01 What does CFS mean on the Baykal BLE CFS?

Baykal calls it a Coil Fed Fiber Laser Cutting System. The data sheet has separate sections for the CFS decoiler and the CFS straightener feeder, which sit ahead of a 1,500 mm (59.1 in) by 1,500 mm (59.1 in) laser cutting area.

02 What coil weight can the BLE CFS handle?

The decoiler's coil loading capacity is 6,000 kg (13,228 lb). It uses a single drum with hydraulic expansion, a hydraulic coil hold down arm and a coil loading car, driven by a 3.0 kW (4.0 hp) AC motor.

03 How is the strip straightened and fed?

Through 7 straightener rolls of 100 mm (3.9 in) diameter in a 4 Bottom / 3 Top arrangement, then 2 feeder rolls of 125 mm (4.9 in) diameter whose pressure is adjusted pneumatically. Loop control is by a distance controlled laser sensor.

04 What laser power and speeds does the BLE CFS have?

Laser power is 1 kW to 4 kW from an IPG, nLIGHT or Max Photonics source. Rapid traverse is 95 m/min, vector speed 135 m/min, acceleration 1.5G (15 m/s²), and the programmable feed rate goes up to 50 m/min.
