Baykal BLC

Specs verified 2026-10-05 · baykal.com.tr Updated 2026-10-05

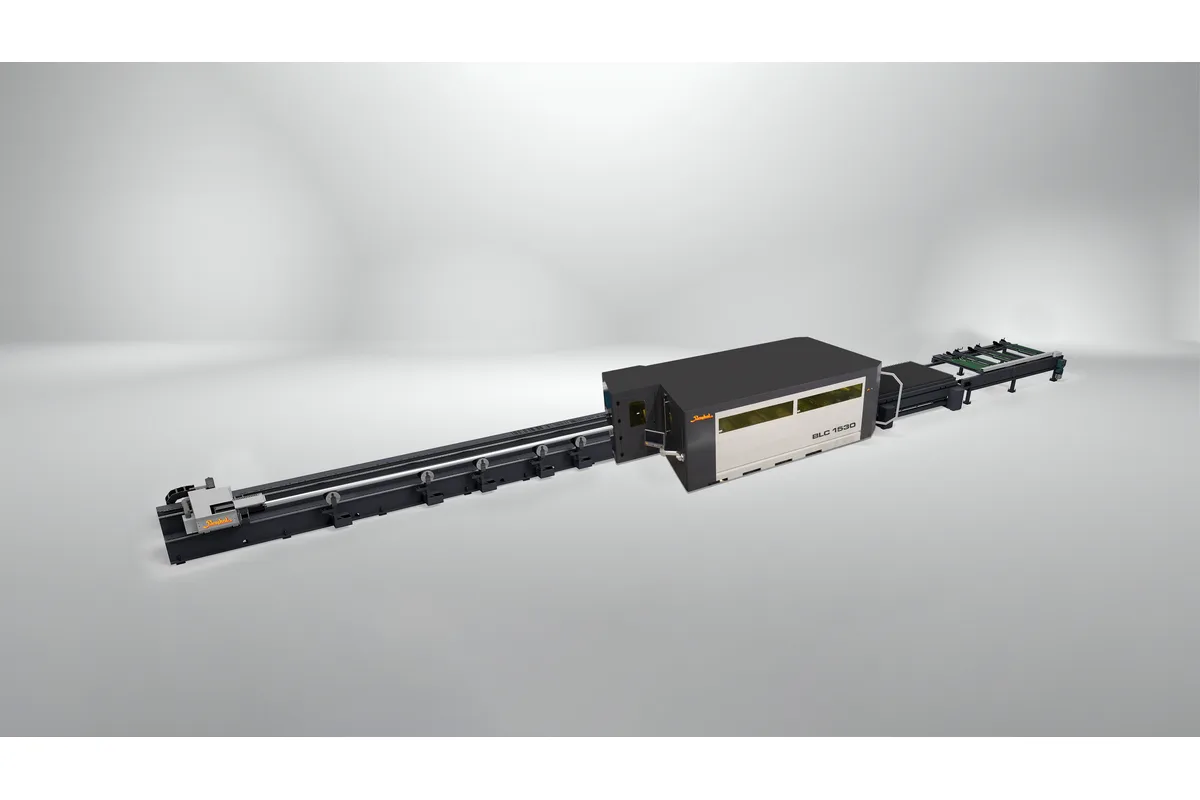

Image: baykal.com.tr, Baykal

Key Specifications

Rapid Traverse

115 m/min

Accuracy

± 0.01 mm

Repeatability

± 0.02 mm (X & Y Axis)

working area width

1,500 / 2,000 mm (59.1 / 78.7 in)

working area length

3,000 / 4,000 / 6,000 mm (118.1 / 157.5 / 236.2 in)

laser power

1 kW - 15 kW

How much does the Baykal BLC cost?

Price estimate

Uncertain

We do not have a price for the Baykal BLC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Baykal BLC is a combination machine: a flat-sheet fiber laser with a tube and profile station on the same frame, which Baykal's page sums up as sheet + tube processing. The sheet side is offered in widths of 1,500 / 2,000 mm (59.1 / 78.7 in) and lengths of 3,000 / 4,000 / 6,000 mm (118.1 / 157.5 / 236.2 in), with laser power from 1 kW to 15 kW.

For a combination machine the sheet performance is high. Rapid traverse is 115 m/min, vector speed 160 m/min and acceleration 2.2G (22 m/s²), with ± 0.01 mm positioning accuracy. One head, a Precitec ProCutter 2.0, serves both jobs.

On the tube side the machine takes bars of 6,100 mm (240.2 in), or 8,100 mm (318.9 in) as an option, and makes parts up to 4,000 mm (157.5 in). Round capacity is Ø16 mm (0.6 in) to Ø214 mm (8.4 in), square 16x16 mm to 214x214 mm, slightly under the dedicated BLT 6220 with its Ø220 mm (8.7 in). The bigger difference is the remnant: the last part on the BLC is 220 mm (8.7 in). Bar weight is limited to 240 kg (529 lb). Automatic unloading is standard and automatic loading optional.

Baykal prints separate capacity tables. For sheet, mild steel runs from 12 mm (0.47 in) at 1 kW to 50 mm (1.97 in) at 15 kW. For tube the table stops at 6 kW, with 25 mm (0.98 in) of mild steel. So a high-power BLC is bought for its sheet work, with tube as the second job.

Full Specifications

Parameter	Value
Working Area Width	1,500 / 2,000 mm (59.1 / 78.7 in)
Working Area Length	3,000 / 4,000 / 6,000 mm (118.1 / 157.5 / 236.2 in)
Laser Power	1 kW - 15 kW
Laser Source	IPG, nLIGHT or Max Photonics
Cutting Head	Precitec ProCutter 2.0
Max Tube Length	6,100 mm (240.2 in); 8,100 mm (318.9 in) optional
Max Part Length	4,000 mm (157.5 in)
Min Auto Loading Length	2,000 mm (78.7 in)
Driver Chuck Acceleration	7000 Deg/s²
Driver Chuck Speed	560°/s
Profile Types	Round, Rectanguar, Triangular, C, U, L, Ellipse, Obround, Custom Shapes
Round Tube Diameter	Ø16 mm (0.6 in) min. / Ø214 mm (8.4 in) max.
Square Tube Size	Min. 16x16 mm / Max. 214x214 mm
Length of Last Part	220 mm (8.7 in)
Max Tube Weight	240 kg (529 lb)
CNC Control	Beckhoff CNC (18.5" TFT, Windows 10)
Rapid Traverse Rate	115 m/min
Vector Speed	160 m/min
Acceleration	2.2G (22 m/s²)
Positioning Accuracy	± 0.01 mm
Repeatability	± 0.02 mm (X & Y Axis)
Programmable Feed Rate	Up to 50 m/min; actual feed rate depends on material and thickness
Automatic Unloading	Standart
Automatic Loading	Optional
Max Sheet Cutting Thickness Mild Steel	12 mm (0.47 in) at 1 kW; 25 mm (0.98 in) at 6 kW; 50 mm (1.97 in) at 15 kW
Max Sheet Cutting Thickness Stainless Steel	5 mm (0.20 in) at 1 kW; 16 mm (0.63 in) at 6 kW; 40 mm (1.57 in) at 15 kW
Max Sheet Cutting Thickness Aluminum	3 mm (0.12 in) at 1 kW; 12 mm (0.47 in) at 6 kW; 40 mm (1.57 in) at 15 kW
Max Tube Cutting Thickness Mild Steel	12 mm (0.47 in) at 1 kW; 20 mm (0.79 in) at 3 kW; 25 mm (0.98 in) at 6 kW
Max Tube Cutting Thickness Aluminum	3 mm (0.12 in) at 1 kW; 6 mm (0.24 in) at 3 kW; 12 mm (0.47 in) at 6 kW

Specifications sourced from baykal.com.tr — verified 2026-10-05

Strengths & Limitations

Strengths

Sheet and tube cutting on one machine with one Precitec ProCutter 2.0 head
Sheet rapids of 115 m/min with 2.2G (22 m/s²) acceleration
Laser power from 1 kW to 15 kW; 50 mm (1.97 in) mild steel sheet at 15 kW
Tubes of 6,100 mm (240.2 in), with 8,100 mm (318.9 in) optional
Automatic unloading is standard

Limitations

Last part length is 220 mm (8.7 in), against 60 mm (2.4 in) on the BLT 6220
Round capacity of Ø214 mm (8.4 in) is below the Ø220 mm (8.7 in) of the BLT 6220
The tube capacity table ends at 6 kW
Automatic loading is optional
No H sections in the profile list, which the BLT 6220 includes

Best For

Shops with mostly sheet work and regular tube jobs Tube volumes too small to justify a dedicated tube laser Sheet formats up to 2,000 mm wide and 6,000 mm long Round tube up to Ø214 mm (8.4 in)

Frequently Asked Questions

01 What does the Baykal BLC combine?

A flat-sheet fiber laser and a tube and profile cutting station. The working area for sheet is 1,500 / 2,000 mm (59.1 / 78.7 in) wide and 3,000 / 4,000 / 6,000 mm (118.1 / 157.5 / 236.2 in) long, and the tube side takes bars of 6,100 mm (240.2 in), with 8,100 mm (318.9 in) as an option.

02 What tube sizes can the BLC cut?

Round tube from Ø16 mm (0.6 in) to Ø214 mm (8.4 in) and square from 16x16 mm to 214x214 mm, up to 240 kg (529 lb) per bar. Listed profile types are round, rectangular, triangular, C, U, L, ellipse, obround and custom shapes.

03 How does the BLC compare with a dedicated BLT tube laser?

The BLT 6220 has a shorter last part, 60 mm (2.4 in) against 220 mm (8.7 in) on the BLC, and a slightly larger round capacity of Ø220 mm (8.7 in). The BLC adds a full sheet working area and a power range up to 15 kW.

04 How thick can the BLC cut in sheet and in tube?

In sheet, mild steel is listed at 12 mm (0.47 in) with 1 kW, 25 mm (0.98 in) with 6 kW and 50 mm (1.97 in) with 15 kW. The tube table covers 1 kW to 6 kW only, with mild steel at 20 mm (0.79 in) for 3 kW and 25 mm (0.98 in) for 6 kW.
