Baykal BLS PRO

Specs verified 2026-10-05 · baykal.com.tr Updated 2026-10-05

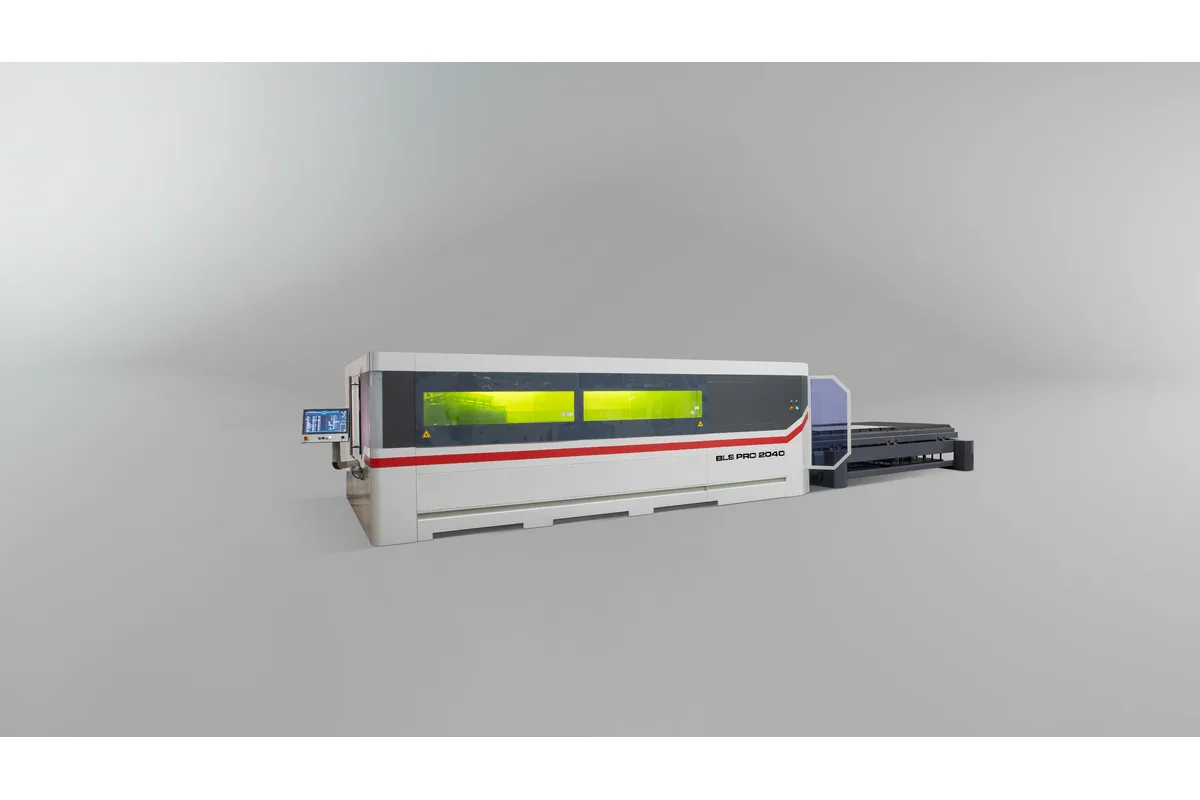

Image: baykal.com.tr, Baykal

Key Specifications

Rapid Traverse

115 m/min; 150 m/min on the X + Y linear version

Accuracy

±0.02 mm; ±0.01 mm on the X + Y linear version

Repeatability

±0.02 mm; ±0.01 mm on the X + Y linear version

working area width

2,000 to 4,000 mm (78.7 to 157.5 in)

working area length

3,000 to 15,000 mm (118.1 to 590.6 in)

laser power

6 kW - 15 kW

How much does the Baykal BLS PRO cost?

Price estimate

Uncertain

We do not have a price for the Baykal BLS PRO that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Baykal BLS PRO is Baykal's main production fiber laser, built in working areas from 2,000 to 4,000 mm (78.7 to 157.5 in) wide and 3,000 to 15,000 mm (118.1 to 590.6 in) long with 6 kW to 15 kW of laser power. It comes with one of two drive systems, and that choice changes most of the performance rows in the table.

The first version has a Wittenstein rack and pinion on X and a Bosch Rexroth linear motor on Y, with Beckhoff rotary servos. It is listed at 115 m/min rapid traverse, 165 m/min vector speed, 2.2G (22 m/s²) and ±0.02 mm for both positioning accuracy and repeatability. The second version uses linear motors on X and Y. Its figures are 150 m/min, 215 m/min, 3.0G (30 m/s²) and ±0.01 mm. Programmable feed rate is up to 100 m/min on the first and up to 125 m/min on the second.

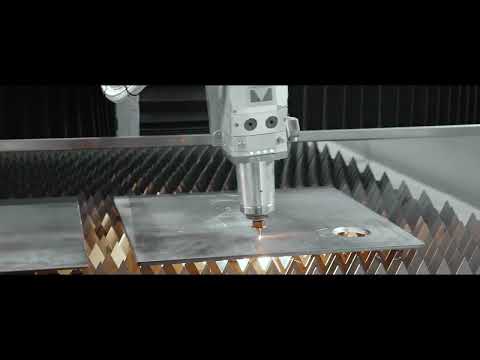

A Precitec ProCutter 2.0 is the standard head. With 6 kW the capacity table gives 25 mm (0.98 in) of mild steel and 16 mm (0.63 in) of stainless; with 15 kW it gives 45 mm (1.77 in) and 40 mm (1.57 in). Aluminum follows stainless closely at the higher powers. Baykal's product page speaks of 6 to 20 kW, while the data sheet's laser power row stops at 15 kW, so check which sources are current.

The transfer table is a motorized automatic exchange. It carries 2,500 kg (5,512 lb) in the 2000x4000 mm size and 3,500 kg (7,716 lb) in the 2000x6000 mm size. A bevel cutting head, an automatic nozzle changer and the fume extractor are all options.

Full Specifications

Parameter	Value
Working Area Width	2,000 to 4,000 mm (78.7 to 157.5 in)
Working Area Length	3,000 to 15,000 mm (118.1 to 590.6 in)
Laser Power	6 kW - 15 kW
Laser Source	IPG, nLIGHT or Max Photonics
Cutting Head	Precitec ProCutter 2.0 (Standard)
CNC Control	Beckhoff CNC (18.5" TFT, Windows 10)
Motion System	X axis rack and pinion (Wittenstein) with Y axis linear (Bosch Rexroth); or X + Y axis linear (Bosch Rexroth)
Motors and Drives	Beckhoff (Rotary Servo); Beckhoff (Linear Servo) on the X + Y linear version
Rapid Traverse Rate	115 m/min; 150 m/min on the X + Y linear version
Vector Speed	165 m/min; 215 m/min on the X + Y linear version
Acceleration	2.2G (22 m/s²); 3.0G (30 m/s²) on the X + Y linear version
Positioning Accuracy	±0.02 mm; ±0.01 mm on the X + Y linear version
Repeatability	±0.02 mm; ±0.01 mm on the X + Y linear version
Programmable Feed Rate	Up to 100 m/min; up to 125 m/min on the X + Y linear version
Transfer Table	Motorized - Automatic Exchange
Max Table Load	2,500 kg (5,512 lb) for 2000x4000 mm; 3,500 kg (7,716 lb) for 2000x6000 mm
Nesting Software	LANTEK Expert Cut II or Metalix AutoNest Pro
Nozzle Cleaning and Calibration	Automatic
Bevel Cutting Head	Optional
Automatic Nozzle Changer	Optional
Fume Extractor	Optional
Max Cutting Thickness Mild Steel	25 mm (0.98 in) at 6 kW; 35 mm (1.38 in) at 10 kW; 45 mm (1.77 in) at 15 kW
Max Cutting Thickness Stainless Steel	16 mm (0.63 in) at 6 kW; 30 mm (1.18 in) at 10 kW; 40 mm (1.57 in) at 15 kW
Max Cutting Thickness Aluminum	12 mm (0.47 in) at 6 kW; 30 mm (1.18 in) at 10 kW; 40 mm (1.57 in) at 15 kW
Max Cutting Thickness Copper	8 mm (0.31 in) at 6 kW; 10 mm (0.39 in) at 10 kW; 15 mm (0.59 in) at 15 kW
Max Cutting Thickness Brass	10 mm (0.39 in) at 6 kW; 16 mm (0.63 in) at 10 kW; 20 mm (0.79 in) at 15 kW

Specifications sourced from baykal.com.tr — verified 2026-10-05

Strengths & Limitations

Strengths

Two drive versions: rack and pinion X with linear Y, or linear motors on X + Y
The X + Y linear version reaches 150 m/min rapid traverse and 3.0G (30 m/s²)
Laser power from 6 kW to 15 kW with a Precitec ProCutter 2.0 head as standard
Working areas from 2,000 to 4,000 mm (78.7 to 157.5 in) wide and up to 15,000 mm long
Motorized automatic exchange table rated 3,500 kg (7,716 lb) for 2000x6000 mm
45 mm (1.77 in) mild steel and 40 mm (1.57 in) stainless at 15 kW

Limitations

The bevel cutting head, automatic nozzle changer and fume extractor are all optional
The rack and pinion version is held to ±0.02 mm, twice the ±0.01 mm of the linear version
Table load is given only for the 2000x4000 mm and 2000x6000 mm sizes
Baykal's page and its data sheet disagree on the top laser power

Best For

Production cutting of plate from 6 kW to 15 kW Thin sheet at high feed, on the X + Y linear version at up to 125 m/min Large-format sheet up to 4,000 mm (157.5 in) wide Lines that will add a bevel head or nozzle changer

Frequently Asked Questions

01 What are the two drive versions of the BLS PRO?

One has a Wittenstein rack and pinion on the X axis and a Bosch Rexroth linear motor on Y, with Beckhoff rotary servos. The other has Bosch Rexroth linear motors on X and Y with Beckhoff linear servo drives. The linear version is the faster and more accurate of the two.

02 How fast is the BLS PRO?

The rack and pinion version is listed at 115 m/min rapid traverse, 165 m/min vector speed and 2.2G (22 m/s²). The X + Y linear version is listed at 150 m/min, 215 m/min and 3.0G (30 m/s²). Programmable feed rates are up to 100 m/min and up to 125 m/min.

03 What sizes is the BLS PRO built in?

The working area is 2,000 to 4,000 mm (78.7 to 157.5 in) wide and 3,000 to 15,000 mm (118.1 to 590.6 in) long. Table load is 2,500 kg (5,512 lb) for the 2000x4000 mm size and 3,500 kg (7,716 lb) for 2000x6000 mm.

04 What thickness can the BLS PRO cut?

At 6 kW: 25 mm (0.98 in) mild steel, 16 mm (0.63 in) stainless, 12 mm (0.47 in) aluminum. At 15 kW: 45 mm (1.77 in) mild steel and 40 mm (1.57 in) in both stainless and aluminum. Copper is listed at 15 mm (0.59 in) and brass at 20 mm (0.79 in) with 15 kW.

05 Is bevel cutting available on the BLS PRO?

Yes, as an option. The data sheet lists a bevel cutting head, an automatic nozzle changer and a fume extractor as optional, while automatic nozzle cleaning and calibration and the Precitec ProCutter 2.0 head are standard.
