Baykal BLT 6220

Q: How much does the Baykal BLT 6220 cost?

The price estimate for the Baykal BLT 6220 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/baykal-blt-6220#price; the request is passed to Baykal or an authorised dealer.

Specs verified 2026-10-05 · baykal.com.tr Updated 2026-10-05

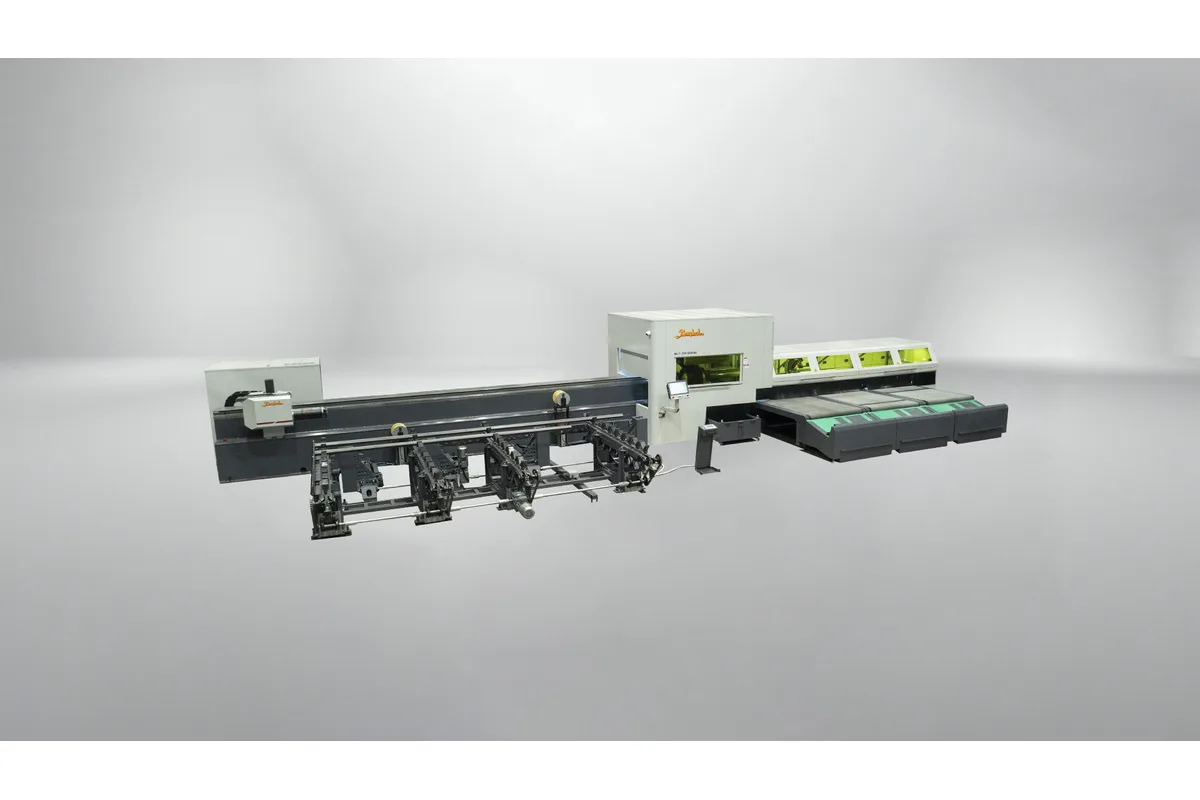

Baykal BLT series tube laser cutting machine

Image: baykal.com.tr, Baykal

Key Specifications

Rapid Traverse

90 m/min

Accuracy

± 0.01 mm

Repeatability

± 0.02 mm (X & Y Axis)

laser power

1 kW - 4 kW

laser source

IPG, nLIGHT or Max Photonics

cutting head

Precitec LightCutter 3D

How much does the Baykal BLT 6220 cost?

Price estimate

Uncertain

We do not have a price for the Baykal BLT 6220 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Baykal BLT 6220 is a tube and profile laser that takes stock up to 6,100 mm (240.2 in) long, the shorter of the two bed lengths in Baykal's BLT table. It cuts round tube from Ø16 mm (0.6 in) to Ø220 mm (8.7 in) and square section from 16x16 mm to 220x220 mm, with a tube weight limit of 240 kg (529 lb).

Laser power is 1 kW to 4 kW through a Precitec LightCutter 3D head, and bevel cutting is an option. The driver chuck turns at 560°/s with 7000 Deg/s² of acceleration, which is what sets the pace on parts with many features around the circumference. Linear rapid speed is 90 m/min and vector speed 130 m/min. Positioning accuracy is ± 0.01 mm and repeatability ± 0.02 mm on X and Y.

Three length figures matter when planning parts. Finished parts can be up to 4,000 mm (157.5 in) long. The last part of each bar can be as short as 60 mm (2.4 in), so little is thrown away. And automatic loading, which is optional, needs stock at least 2,000 mm (78.7 in) long. Wall thickness starts at 0.8 mm (0.03 in).

Baykal lists round, rectangular and triangular tube, H, C, U and L sections, ellipse, obround and custom shapes. In mild steel the capacity table gives 12 mm (0.47 in) at 1 kW and 22 mm (0.87 in) at 4 kW. Shops that buy tube in longer mill lengths should look at the BLT 8220, which is the same machine with 8,100 mm (318.9 in) of tube length.

Full Specifications

Parameter	Value
Laser Power	1 kW - 4 kW
Laser Source	IPG, nLIGHT or Max Photonics
Cutting Head	Precitec LightCutter 3D
CNC Control	Beckhoff CNC (18.5" TFT, Windows 10)
Bevel Cutting	Optional
Max Tube Length	6,100 mm (240.2 in)
Max Part Length	4,000 mm (157.5 in)
Min Auto Loading Length	2,000 mm (78.7 in)
Driver Chuck Acceleration	7000 Deg/s²
Driver Chuck Speed	560°/s
Profile Types	Round, Rectangular, Triangular, H, C, U, L, Ellipse, Obround, Custom Shapes
Round Tube Diameter	Ø16 mm (0.6 in) min. / Ø220 mm (8.7 in) max.
Square Tube Size	Min. 16x16 mm / Max. 220x220 mm
Length of Last Part	60 mm (2.4 in)
Max Tube Weight	240 kg (529 lb)
Min Material Thickness	0.8 mm (0.03 in)
Rapid Traverse Rate	90 m/min
Vector Speed	130 m/min
Positioning Accuracy	± 0.01 mm
Repeatability	± 0.02 mm (X & Y Axis)
Programmable Feed Rate	Up to 50 m/min; actual feed rate depends on material and thickness
Automatic Loading	Optional
Automatic Unloading	Optional
Fume Extractor	Optional
Max Cutting Thickness Mild Steel	12 mm (0.47 in) at 1 kW; 16 mm (0.63 in) at 2 kW; 22 mm (0.87 in) at 4 kW
Max Cutting Thickness Stainless Steel	5 mm (0.20 in) at 1 kW; 6 mm (0.24 in) at 2 kW; 12 mm (0.47 in) at 4 kW
Max Cutting Thickness Aluminum	3 mm (0.12 in) at 1 kW; 4 mm (0.16 in) at 2 kW; 10 mm (0.39 in) at 4 kW

Specifications sourced from baykal.com.tr — verified 2026-10-05

Strengths & Limitations

Strengths

Tube length up to 6,100 mm (240.2 in) with finished parts up to 4,000 mm (157.5 in)
Round tube from Ø16 mm (0.6 in) to Ø220 mm (8.7 in) and square up to 220x220 mm
Driver chuck speed of 560°/s with 7000 Deg/s² acceleration
Last part of a bar can be as short as 60 mm (2.4 in)
Handles H, C, U and L sections as well as closed tube

Limitations

Automatic loading and automatic unloading are both optional
Bevel cutting and the fume extractor are optional
Tube weight is limited to 240 kg (529 lb)
Stock longer than 6,100 mm (240.2 in) needs the BLT 8220

Best For

Tube and profile parts cut from 6 m stock Round tube up to Ø220 mm (8.7 in) and square up to 220x220 mm Thin-wall tube from 0.8 mm (0.03 in) Open sections such as C, U and L profiles

Frequently Asked Questions

01 What tube sizes does the BLT 6220 take?

Round tube from Ø16 mm (0.6 in) to Ø220 mm (8.7 in) and square tube from 16x16 mm to 220x220 mm, up to 6,100 mm (240.2 in) long and 240 kg (529 lb) in weight. The minimum material thickness is 0.8 mm (0.03 in).

02 What is the difference between the BLT 6220 and the BLT 8220?

Maximum tube length. The BLT 6220 takes 6,100 mm (240.2 in) and the BLT 8220 takes 8,100 mm (318.9 in). Every other row of Baykal's table, including the 4,000 mm (157.5 in) maximum part length and the 1 kW - 4 kW power range, is shared.

03 Which profiles can the BLT 6220 cut?

Baykal lists round, rectangular and triangular tube, H, C, U and L sections, ellipse, obround and custom shapes. Bevel cutting with the Precitec LightCutter 3D head is offered as an option, so confirm it is on the quotation if you need weld preparations.

04 Does the BLT 6220 load tubes automatically?

Automatic loading and automatic unloading are both listed as optional. With automatic loading the shortest bar that can be loaded is 2,000 mm (78.7 in). Without it, bars are loaded by hand or by crane up to the 240 kg (529 lb) limit.
