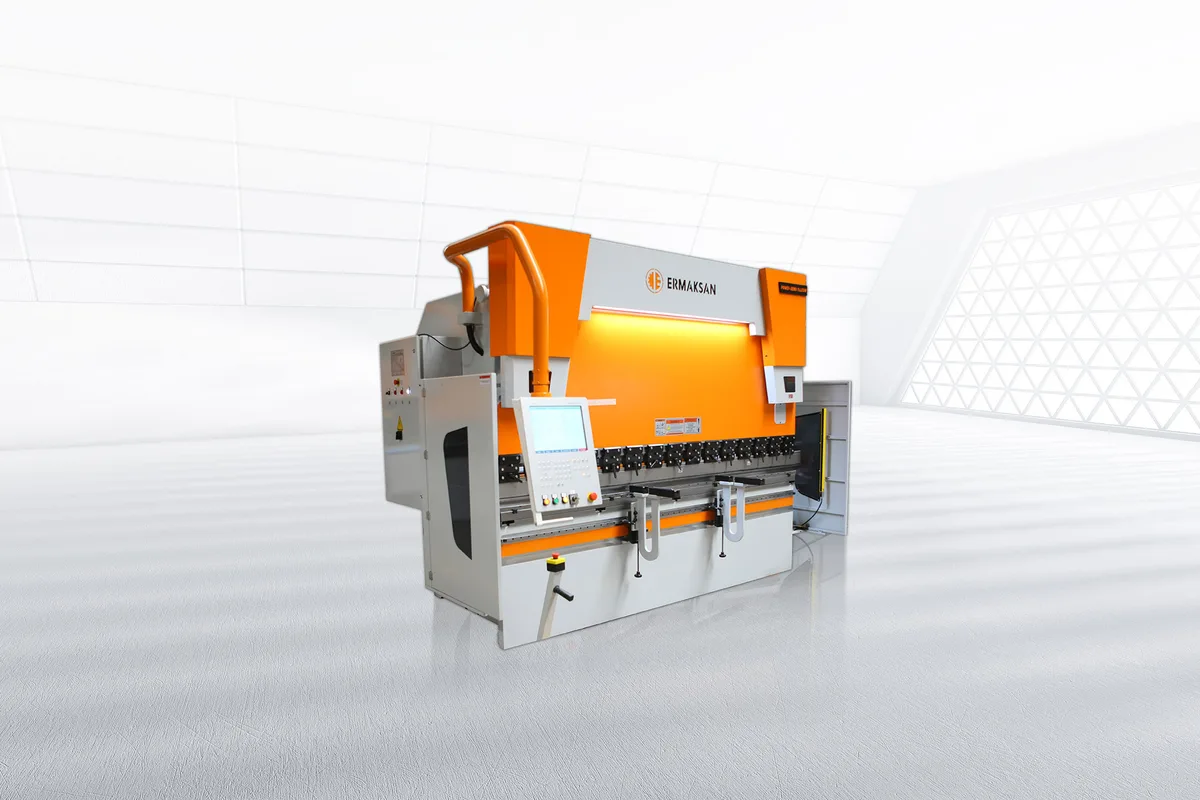

Ermak Power-Bend Falcon 2600-60
Image: ermaksan.com.tr, Ermak
Key Specifications
bending length
bending power
distance between columns
y rapid speed
y working speed
y return speed
How much does the Ermak Power-Bend Falcon 2600-60 cost?
Price estimate
We do not have a price for the Ermak Power-Bend Falcon 2600-60 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Quick strokes on light parts are the strength of the Ermak Power-Bend Falcon 2600-60. Its ram comes down at 200 mm/s, the highest rapid speed Ermak prints for any Falcon, and the bending length of 2,600 mm (102.4 in) covers the common two-and-a-half-metre sheet with a margin.
Bending power is 60 Ton (66 US tons). Spread over this length that is a thin-sheet rating, so the machine belongs with cabinet makers and panel shops and not with plate fabricators. Working speed is 10 mm/s and the return 165 mm/s.
Behind the tooling sits a backgauge with 500 mm of X travel. That is the short gauge of the series. The Power-Bend Falcon 2600-100 has 800 mm of X travel on an identical 2,600 mm bed, which is worth knowing if flanges longer than half a metre are gauged from the back.
Ram and frame figures follow the series pattern: 275 mm stroke, 530 mm daylight, 410 mm throat, and 2,200 mm (86.6 in) between the columns. Crowning is motorized.
The machine is 4,450 mm long, 1,800 mm wide and 2,580 mm high, and weighs 5,700 kg. A 7.5 kW motor and a 150 L tank make up the hydraulic supply. Ermak fits 2 sheet supports and 2 backgauge finger blocks.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Length | 2,600 mm (102.4 in) |
| Bending Power | 60 Ton (66 US tons) |
| Distance Between Columns | 2,200 mm (86.6 in) |
| Y Rapid Speed | 200 mm/s (7.87 in/s) |
| Y Working Speed | 10 mm/s (0.39 in/s) |
| Y Return Speed | 165 mm/s (6.5 in/s) |
| Crowning | Motorized |
| X Axis Travel | 500 mm (19.7 in) |
| X Axis Speed | 500 mm/s (19.69 in/s) |
| R Axis Travel | 250 mm (9.8 in) |
| R Axis Speed | 350 mm/s (13.78 in/s) |
| Backgauge Finger Blocks | 2 |
| Sheet Supports | 2 |
| Oil Capacity | 150 L (39.6 US gal) |
| Motor Power | 7.5 kW (10.1 hp) |
| Stroke | 275 mm (10.8 in) |
| Daylight | 530 mm (20.9 in) |
| Throat Depth | 410 mm (16.1 in) |
| Table Height | 900 mm (35.4 in) |
| Table Width | 90 mm (3.5 in) |
| Length | 4,450 mm (175.2 in) |
| Height | 2,580 mm (101.6 in) |
| Width | 1,800 mm (70.9 in) |
| Machine Weight | 5,700 kg (12,566 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 200 mm/s rapid approach, the fastest in the Falcon table
- 2,600 mm bending length takes two-and-a-half-metre sheet
- 1,800 mm wide and 5,700 kg: easy to place
- 2,200 mm between the columns
Limitations
- 60 Ton over 2,600 mm restricts the work to thin sheet
- 500 mm X travel on the backgauge
- Only 2 finger blocks as standard
- Laser bend line and LED bar guiding are optional
Best For
Frequently Asked Questions
01
For long, light parts. It offers 2,600 mm of bending length with a 200 mm/s rapid approach and motorized crowning, in a machine weighing 5,700 kg with a 7.5 kW motor.
02
The Power-Bend Falcon 2600-100 raises bending power to 100 Ton and X-axis travel to 800 mm, and weighs 6,273 kg. This model has 60 Ton, 500 mm of X travel and a 10 mm/s working speed.
03
Ermak's table gives bending power, not a thickness chart. 60 Ton over the full 2,600 mm is a light-gauge rating; thicker material is possible on shorter bends with a suitably wide die.
04
Ermak lists pneumatic rear supports, a sheet extraction system, an LED bar guiding system and a laser bend line as options. The standard machine comes with 2 front sheet supports.
