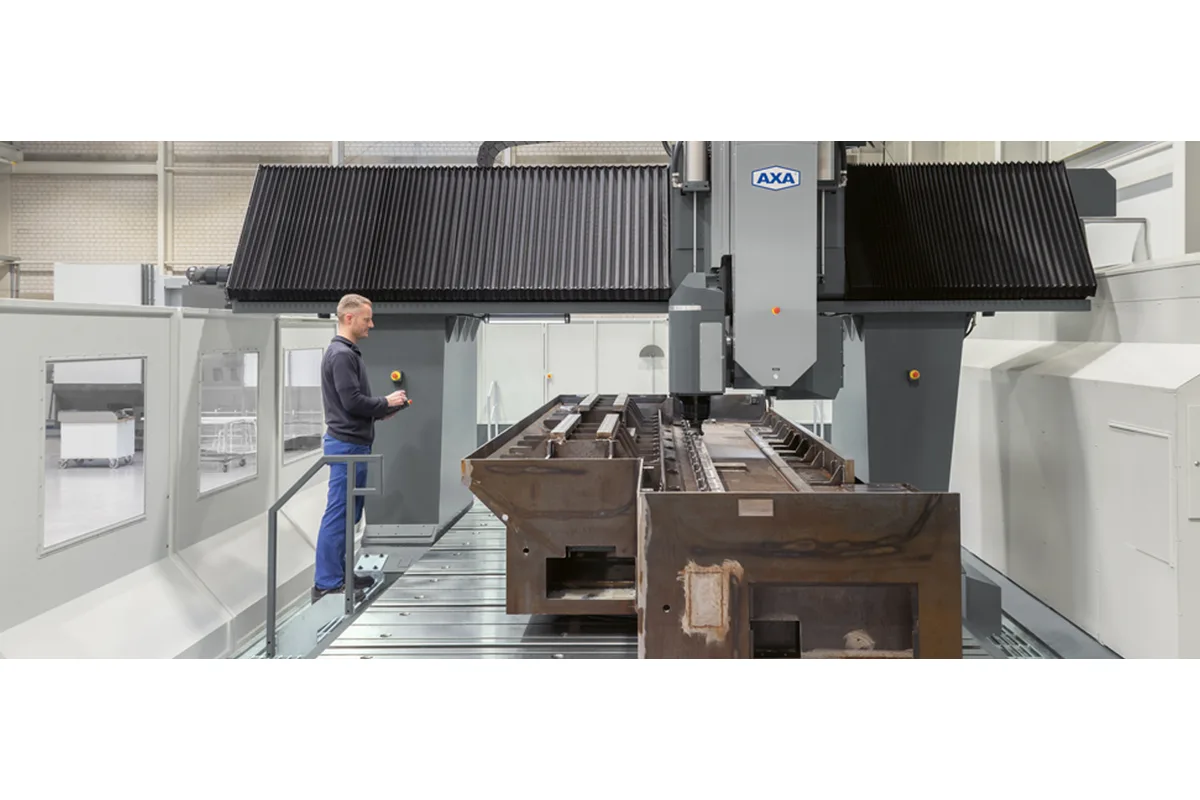

AXA UPFZ 50
Image: axa-maschinenbau.de, AXA
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Spindle Power
Accuracy
Repeatability
How much does the AXA UPFZ 50 cost?
Price estimate
We do not have a price for the AXA UPFZ 50 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A heavy spindle hanging from a 2-axis head puts a long lever on a gantry, and AXA answers it on the UPFZ 50 with a different portal. This model has the portal in an inclined bed version, which AXA says reduces the distance between the Y-guideway and the swivel head and so increases overall stability. The UPFZ 50 is the SK 50 member of AXA's large 5-side gantry series.
The standard spindle drive no. 161 delivers 540 Nm from 28 kW at 40% DC. Drive no. 163 keeps the 540 Nm and adds power, 57 kW. For faster work there are drives no. 131 with 286 Nm and no. 133 with 355 Nm, each with up to 9,000 rpm as an option. Unlike the three-axis PFZ 50, the UPFZ 50 does not list the 820 Nm drive no. 182. Feed force is 12,000 N.
The head covers 180° in A and 360° in B and indexes in 2.5° steps, with 1° and 0.001° optional. Turned horizontal, it costs 2 x 460 mm of X and Y travel; a shorter figure of 2 x 360 mm is also printed. The nominal ranges are 3,000 mm to 10,000 mm in X, 1,500 mm to 4,000 mm in Y and 800 mm to 1,500 mm in Z.
The table is rated at 1,500 kg/m², optionally 2,000 kg/m². Tools up to 110 mm in diameter come from a stationary changer with 22 pockets. AXA lists an NC-rotary table among its examples of use, which turns the machine toward ring and round parts.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 - 10,000 mm (118.1 - 393.7 in) |
| X Axis Travel Reduction Horizontal Spindle | 2 x 460 mm (18.1 in); optional 2 x 360 mm (14.2 in) |
| Y Axis Travel | 1,500 - 4,000 mm (59.1 - 157.5 in) |
| Y Axis Travel Reduction Horizontal Spindle | 2 x 460 mm (18.1 in); alternatively 2 x 360 mm (14.2 in) |
| Z Axis Travel | 800 - 1,500 mm (31.5 - 59.1 in) |
| Distance Spindle Nose to Table | 230 mm (9.1 in) horizontal / 230 mm (9.1 in) vertical, minimum; optional 230 mm (9.1 in) / 330 mm (13.0 in) |
| Table Width | 1,500 - 3,000 mm (59.1 - 118.1 in) |
| Table Length | approx. X-Weg (X travel) |
| T-Slot Width | 22 mm H9 (reference slot H7) |
| T Slot Spacing | 660 mm (26.0 in) |
| Max Table Load | 1,500 kg/m² (307 lb/ft²); optional 2,000 kg/m² (410 lb/ft²) |
| Rapid Traverse Xyz | 15/15/10 m/min (591/591/394 ipm) in X/Y/Z; optional 20/20/15 m/min (787/787/591 ipm) |
| Max Feed Force | 12,000 N (2,698 lbf) |
| Spindle Drive Standard | No. 161 |
| Spindle Drives Optional | No. 131, 133, 163 |
| Max Spindle Speed | 4,000 rpm; optional up to 7,500 rpm (standard drive no. 161) |
| Spindle Torque | 540 Nm (398.3 lb-ft) max. at 40% DC (standard drive no. 161) |
| Spindle Motor Power | 28 kW (37.5 hp) max. at 40% DC (standard drive no. 161) |
| Optional Spindle Drive 131 | 4,000 rpm (optional up to 9,000 rpm), 286 Nm (211.0 lb-ft), 45 kW (60.3 hp) max. at 40% DC |
| Optional Spindle Drive 133 | 4,000 rpm (optional up to 9,000 rpm), 355 Nm (261.8 lb-ft), 56 kW (75.1 hp) max. at 40% DC |
| Optional Spindle Drive 163 | 4,000 rpm (optional up to 7,500 rpm), 540 Nm (398.3 lb-ft), 57 kW (76.4 hp) max. at 40% DC |
| Spindle Taper | SK 50 (DIN ISO 7388-1 AD / DIN ISO 7388-3 AD); optional BT 50, HSK A100, C8 |
| A Axis Range | 180° |
| B Axis Range | 360° |
| Tilting Head Indexing | 2.5°; optional 1°, 0.001° |
| Tool Capacity | 22; optional expandable up to 60 (90) |
| Max Tool Diameter (full magazine) | 110 mm (4.3 in); 180 mm (7.1 in) with free adjacent pockets |
| Max Tool Length | 400 mm (15.7 in) |
| Positioning Accuracy | ± 0.02 mm per 1,000 mm per axis X/Y/Z (increased accuracy on request) |
| Repeatability | ± 0.0075 mm |
Specifications sourced from axa-maschinenbau.de — verified 2026-10-05
Strengths & Limitations
Strengths
- SK 50 spindle in a 2-axis head, with 540 Nm as standard
- Inclined bed portal that AXA says increases overall stability
- Feed force of 12,000 N, against 9,000 N on the UPFZ 40
- Head angles of 180° (A-axis) and 360° (B-axis) for 5-side machining
- Y travel range up to 4,000 mm and X up to 10,000 mm
- Table load of 2,000 kg/m² available as an option
Limitations
- Horizontal spindle reduces X and Y travel by 2 x 460 mm on the standard head
- Standard drive no. 161 has 28 kW; more power requires drive no. 163 or no. 133
- The 820 Nm drive no. 182 of the PFZ 50 is not listed for this model
- Head indexing of 2.5° as standard; rapids of 15/15/10 m/min
Best For
Frequently Asked Questions
01
AXA states that the UPFZ 50 has its portal in an inclined bed version for increased stability and rigidity. According to AXA, the inclined bed portal reduces the distance between the Y-guideway and the swivel head. The data sheet gives no separate figures for it.
02
No. 161 is standard: 4,000 rpm, up to 7,500 rpm optional, 540 Nm and 28 kW. Options are no. 163 with 540 Nm and 57 kW, no. 133 with 355 Nm and 56 kW, and no. 131 with 286 Nm and 45 kW. Ratings are at 40% DC. Holders are SK 50, optionally BT 50, HSK A100 or C8.
03
The row "with horizontal spindle minus" reads 2 x 460 mm for X and for Y, with 2 x 360 mm in brackets. In the X row the bracketed figure is marked as an optional feature. The minimum distance from table to spindle nose is 230 mm horizontal and vertical, or 230 mm / 330 mm optionally.
04
Positioning accuracy is ± 0.02 mm per 1,000 mm per axis X/Y/Z, and AXA notes that increased accuracy is available on request. Repeating accuracy is ± 0.0075 mm. Direct measuring systems are fitted on the X, Y and Z axes.
