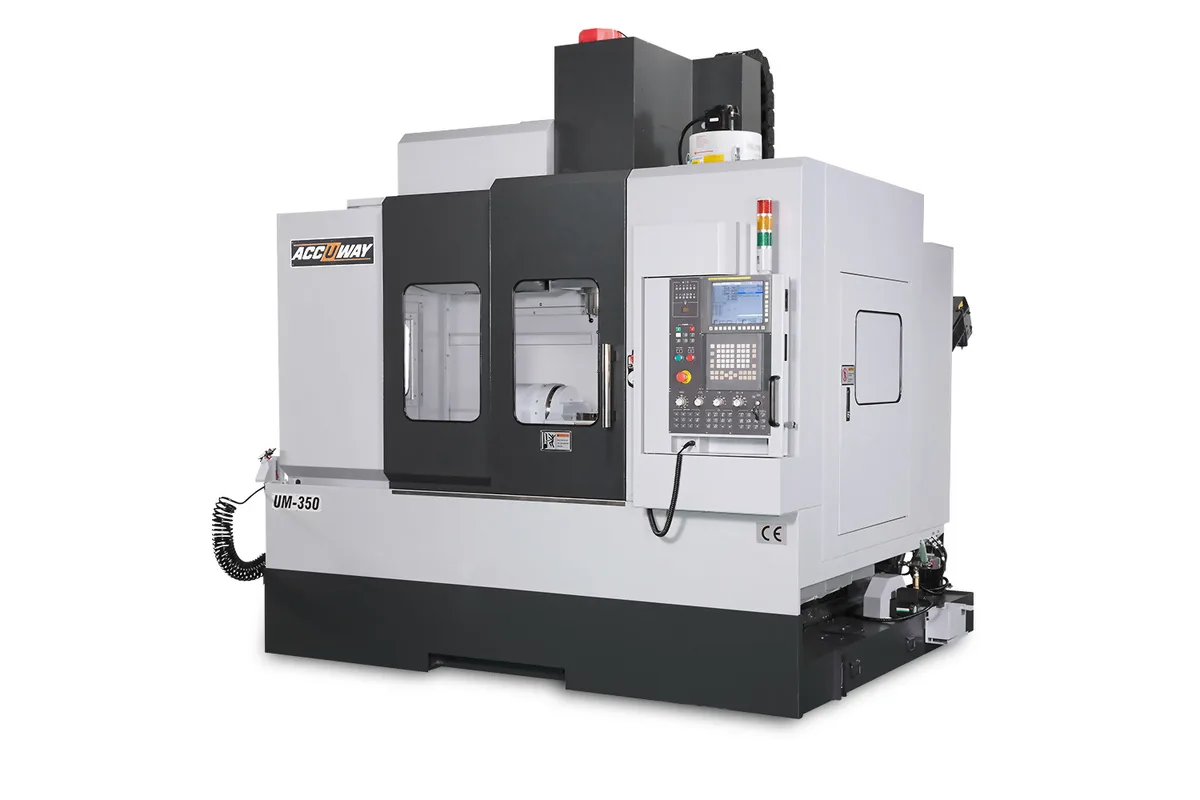

Accuway UM-350
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
control
How much does the Accuway UM-350 cost?
Price estimate
We do not have a price for the Accuway UM-350 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UM-350 is a trunnion-style 5-axis vertical machining center: a Ø350 mm (Ø13.8 in) rotary table on an A axis that tilts -120/+30 degrees, under a BT40 direct-drive spindle. Linear travels are 700 mm (27.6 in), 550 mm (21.7 in) and 550 mm (21.7 in).
Its base figures are those of the UM-85H, the maker's 3-axis high-speed frame. The dimensions match at 2.7 x 2.2 m of floor, the rapids are the same 42 m/min (1,654 in/min) in X and Y, and guideway bearings are Roller in both tables. What the UM-350 gives up to the tilting unit is X travel, 700 mm against the 850 mm (33.5 in) of the UM-85H, and its Z rapid is 30 m/min (1,181 in/min).
The table carries 200 kg (441 lb) with the table level and the same 200 kg with it tilted upright, so the rating does not fall when the part is tipped on its side. Maximum workpiece size is Ø350 x 280 mm (Ø13.8 x 11.0 in). The C axis turns at up to 40 rpm and the A axis at up to 33.3 rpm.
Spindle speed is 12,000 rpm with 15,000 rpm bracketed, on a 7.5/11 kW (10.1/14.8 hp) motor. The spindle nose comes within 40 mm of the table surface, the top of the range being 540 mm (21.3 in), which keeps tools short on low parts. The magazine row reads 24 (32/40). Standard equipment includes the FANUC 0i-M with AICC II and spindle oil cooling. Net weight is 7,500 kg (16,534 lb).
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-M |
| Max Spindle Speed | 12,000 (15,000) rpm |
| Spindle Taper | BT40 |
| Spindle Bearing Inner Diameter | 70 mm (2.8 in) |
| Spindle Drive | Direct |
| X Axis Travel | 700 mm (27.6 in) |
| Y Axis Travel | 550 mm (21.7 in) |
| Z Axis Travel | 550 mm (21.7 in) |
| A Axis Range | -120/+30 degrees |
| C Axis Range | 360 degrees |
| C Axis Speed | 40 rpm |
| A Axis Speed | 33.3 rpm |
| Max Table Load 0 Deg | 200 kg (441 lb) |
| Max Table Load 90 Deg | 200 kg (441 lb) |
| Distance Spindle Nose to Table | 40~540 mm (1.6~21.3 in) |
| Table Size | Ø350 mm (Ø13.8 in) |
| Max Workpiece Size | Ø350 x 280 mm (Ø13.8 x 11.0 in) |
| T Slot Size | 12 mm |
| Rapid Traverse X | 42 m/min (1,654 in/min) |
| Rapid Traverse Y | 42 m/min (1,654 in/min) |
| Rapid Traverse Z | 30 m/min (1,181 in/min) |
| Cutting Feed Rate | 12 m/min (472 in/min) |
| Ball Screw Diameter Xyz | X/Y/Z: 45/45/45 mm (1.8/1.8/1.8 in) |
| Guideway Bearing Type | Roller |
| Tool Capacity | 24 (32/40) |
| Max Tool Weight | 7 kg (15 lb) |
| Max Tool Diameter (full magazine) | 75 mm (3.0 in) |
| Max Tool Diameter Without Adjacent Tools | 150 mm (5.9 in) |
| Tool Change Method | Arm type |
| Max Tool Length | 300 mm (11.8 in) |
| Spindle Motor Power | Cont. / 30min: 7.5/11 kW (10.1/14.8 hp) |
| Feed Motor Xyz | X/Y/Z: 3/3/4 kW (4.0/4.0/5.4 hp) |
| Coolant Pump Motor | 50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp) |
| Air Supply | 5.5 kg/cm² |
| Machine Dimensions | L x W x H: 2.7 x 2.2 x 3.2 m (106.3 x 86.6 x 126.0 in) |
| Machine Weight | 7,500 kg (16,534 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Ø350 mm (Ø13.8 in) tilting rotary table with A travel of -120/+30 degrees
- 200 kg (441 lb) table load with the table level and with it tilted upright
- 42 m/min (1,654 in/min) rapids in X and Y on roller guideways
- Direct-drive BT40 spindle at 12,000 rpm
- Magazine listed as 24, with 32/40 in the brackets
Limitations
- Spindle motor is 7.5/11 kW (10.1/14.8 hp)
- Workpiece height is limited to 280 mm (11.0 in) at Ø350 mm
- Maximum tool weight of 7 kg (15 lb)
- Linear scales and the workpiece touch probe are optional accessories
Best For
Frequently Asked Questions
01
X is 700 mm (27.6 in), Y is 550 mm (21.7 in) and Z is 550 mm (21.7 in). The A axis tilts -120/+30 degrees and the C axis rotates 360 degrees. Spindle nose to table is 40~540 mm (1.6~21.3 in).
02
200 kg (441 lb). The table lists the same maximum loading with the table level and with it tilted upright. The table is Ø350 mm (Ø13.8 in) with a 12 mm T-slot size, and the largest workpiece is Ø350 x 280 mm (Ø13.8 x 11.0 in).
03
The rotary C axis reaches 40 rpm and the tilting A axis 33.3 rpm. The UM-500, the next size up, lists 16.6 rpm and 11.1 rpm for the same axes, so the UM-350 repositions considerably faster.
04
An arm type changer. Tool magazine capacity is printed as 24 (32/40). Tools may be up to 300 mm (11.8 in) long, 7 kg (15 lb), and 75 mm (3.0 in) in diameter, or 150 mm (5.9 in) without adjacent tools.
