AWEA MCP-12060
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the AWEA MCP-12060 cost?
Price estimate
We do not have a price for the AWEA MCP-12060 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Multi-face work is the reason to look at the AWEA MCP-12060. It is a bridge machine whose columns run 12,000 mm (472.4 in) along a stationary 12,000 x 4,800 mm (472.4 x 189.0 in) table, with a head that crosses 6,400 mm (252.0 in), and AWEA fits an automatic head changer and a two positions ATC system as standard.
Those two items belong together. Swapping the vertical spindle nose for an angle head lets the machine cut the four sides of a part in the setup that did the top. A tool then has to be loaded into a spindle that may point down or sideways, hence two change positions. The maker adds that a new generation of in-house made attachment heads is available; the table does not list them, so the head package is something to pin down when ordering.
Tool handling is helped by where the magazine sits. It is attached to the column and rides with it. On a 12,000 mm axis that matters: the columns do not travel back to a parked magazine for each change, wherever along the table the cut is. Capacity is 40T, with 60T optional. Each tool may be up to 400 mm (15.7 in) long and 20 kg (44 lb), and Ø125 mm (Ø4.9 in) across with neighbours in place or Ø200 mm (Ø7.9 in) beside empty pockets.
Side machining also explains the geometry. Y travel exceeds the table width, so a horizontal head can drop outside the part. Z is 1,400 mm (55.1 in), or 1,600 mm as an option, and sets how far down a side wall the head reaches. The spindle is BBT50 with a 22 / 26 kW (29.5 / 34.9 hp) motor.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 12,000 mm (472.4 in) |
| Y Axis Travel | 6,400 mm (252.0 in) |
| Z Axis Travel | 1,400 mm (55.1 in) (1,600 mm Opt.) |
| Table Size | 12,000 x 4,800 mm (472.4 x 189.0 in) |
| Distance Spindle Nose to Table | 800 ~ 2,200 mm (31.5 ~ 86.6 in) (600 ~ 2,200 mm Opt.) |
| Distance Between Columns with X Axis Covers | 5,700 mm (5,500 mm) |
| Spindle Taper | BBT50 |
| Spindle Motor Power | 22 / 26 kW (29.5 / 34.9 hp) |
| Spindle Speed Vertical | 4,000 Gear Spindle (Std.)；5,000 / 6,000 Gear Spindle (Opt.)；8,000 / 12,000 Built-in Spindle (Opt.) |
| Rapid Traverse Xyz | 10 / 10 / 10 m/min (394 / 394 / 394 ipm) |
| Cutting Feed Rate | 1 ~ 10 m/min (39 ~ 394 ipm) |
| Tool Capacity | 40T (60T Opt.) |
| Max Tool Diameter (full magazine) | Ø125 / Ø200 mm (Ø4.9 / Ø7.9 in) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 20 kg (44 lb) |
| Coolant Tank Capacity | 5,400 liter |
| Lubrication Tank Capacity | 6 liter |
| Hydraulic Tank Capacity | 100 liter |
| Air Pressure Requirement | 5 ~ 8 (5) kg/cm² |
| Power Requirement | 220 ± 10 % Vac / 80 kVA |
Specifications sourced from awea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Automatic head changer standard, so top and side faces are cut in one clamping
- Two positions ATC system standard for changing tools with different heads
- Magazine travels with the column: no X-axis move for a tool change on a 12,000 mm (472.4 in) stroke
- 40T magazine, 60T optional, for tools up to 400 mm (15.7 in) and 20 kg (44 lb)
- 6,400 mm (252.0 in) of Y against a 4,800 mm wide table leaves room for a side head
Limitations
- Attachment heads are described as available but are not itemised in the specification table
- Tool diameter is Ø125 mm (Ø4.9 in) with a full magazine; Ø200 mm (Ø7.9 in) needs empty adjacent pockets
- Z travel of 1,400 mm (55.1 in) limits side-face depth unless the 1,600 mm option is taken
- No horizontal spindle speed or head power is given for the attachment heads
Best For
Frequently Asked Questions
01
Through attachment heads. AWEA equips the series with an automatic head changer as standard, so the machine can exchange its vertical spindle nose for another head under program control. The Y axis has 6,400 mm (252.0 in) of travel over a 4,800 mm (189.0 in) wide table, which gives the head space to move beyond the part and work on its side faces.
02
Because the spindle axis changes when the head does. AWEA states that a two positions ATC system is standardly equipped for improved multi-face machining. The specification table does not describe the mechanism further. The magazine itself holds 40T, or 60T as an option.
03
On the column. AWEA says the tool magazine is attached to the column, which eliminates the need to move the X-axis for tool changes. With 12,000 mm (472.4 in) of X travel and a rapid rate of 10 m/min (394 ipm), a magazine fixed at one end of the bed would add a long trip to every change.
04
Maximum tool length is 400 mm (15.7 in) and maximum tool weight is 20 kg (44 lb). Maximum diameter is Ø125 mm (Ø4.9 in), rising to Ø200 mm (Ø7.9 in) when the adjacent pockets are left empty. The spindle taper is BBT50.
More from AWEA
Other 5-Axis Machining Centers

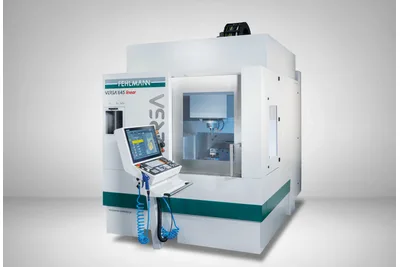

Fehlmann VERSA 645 linear
DN Solutions DCM 2750 U
Matec 30PPT | 40PPT
Chiron FZ 16S Five Axis

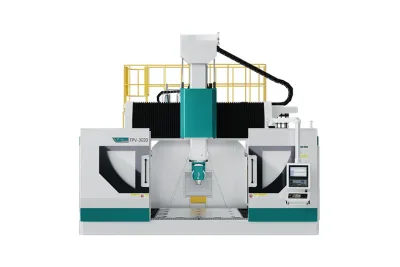

Feeler RG-9020
