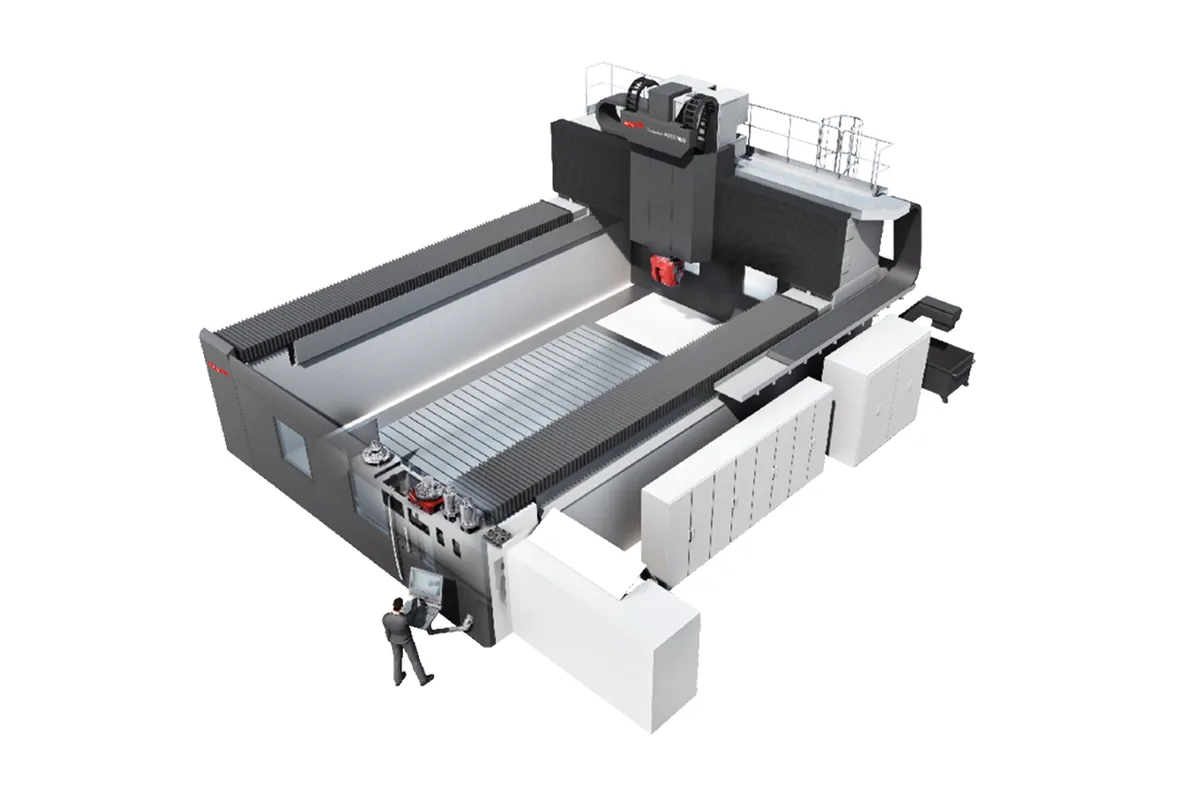

Starrag Droop+Rein FOGS Series
Key Specifications
X Travel
machine type
variants
spindle power hd
spindle torque hd
number of axes
Overview
The Starrag Droop+Rein FOGS Series is a family of overhead gantry-type 5-axis machining centers for high-speed and heavy-duty machining of large aerospace structures, molds and dies, landing gear components, and titanium airframe parts.
Available in two variants: FOGS NEO with roller-guided axes for high-speed aluminum/composite machining, and FOGS HD with hydrostatic guideways for heavy-duty titanium/steel roughing. The FOGS HD delivers up to 100 kW with 7,500 Nm torque.
Both variants feature continuous 5-axis with fork-type heads, X-axis configurable from 3,000 to 20,000+ mm. Overhead gantry enables dual work zone configurations. Optional rotary table for mill-turn.
Siemens SINUMERIK 840D sl or SINUMERIK ONE control. Starrag IPS / Industry 4.0 platform. New machines: $3,000,000 to $10,000,000+.
Full Specifications
| Parameter | Value |
|---|---|
| Machine Type | Overhead gantry, 5-axis |
| Variants | FOGS NEO (roller-guided) / FOGS HD (hydrostatic) |
| Spindle Power Hd | Up to 100 kW (134 HP) |
| Spindle Torque Hd | 7,500 Nm (5,531 ft-lb) |
| X-Axis Travel | 3,000 - 20,000+ mm (configurable) |
| Number Of Axes | 5 (continuous) |
| Head Type | Fork-type milling head |
| Work Zones | Single or dual |
| CNC Control | Siemens SINUMERIK 840D sl / SINUMERIK ONE |
Specifications sourced from starrag.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Two variants cover high-speed aluminum (NEO) to heavy-duty titanium (HD)
- 100 kW / 7,500 Nm on FOGS HD for aggressive titanium removal
- Overhead gantry with dual work zone configurations
- Hydrostatic guideways on HD eliminate stick-slip
- X-axis configurable to 20,000+ mm for largest panels
- Starrag IPS / Industry 4.0 monitoring
Limitations
- One of the most expensive machine tool investments
- Massive footprint requires specialized foundations
- Lead times of 12-24 months
- NEO and HD variants not interchangeable
Best For
Frequently Asked Questions
01
NEO: roller-guided for high-speed aluminum/composite. HD: hydrostatic with 100 kW / 7,500 Nm for titanium/steel.
02
X-axis from 3,000 to over 20,000 mm. Dual work zone doubles usable envelope.
03
Yes, with optional integrated rotary table for mill-turn.
04
Siemens SINUMERIK 840D sl or SINUMERIK ONE.
