Matsuura Machinery Vertical Machining Centers

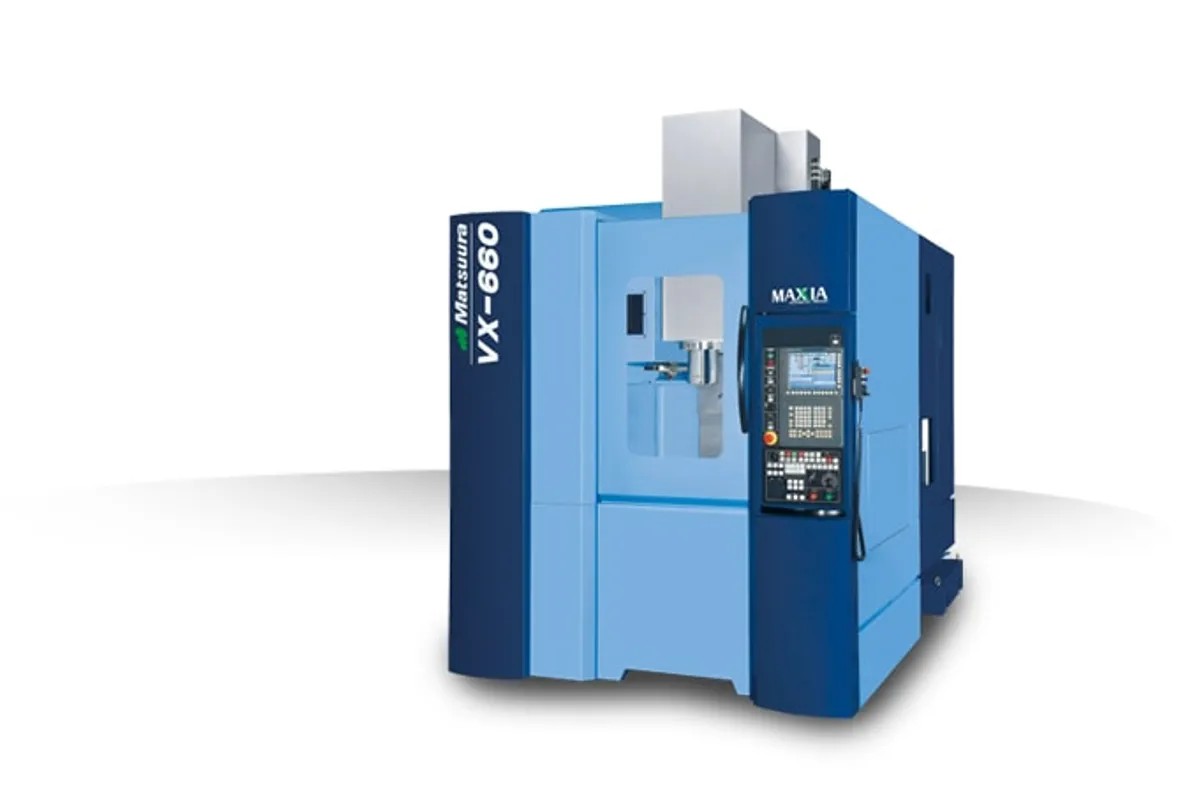

Matsuura VX-660

$120,000 - $200,000 Updated 2026-03-19

Key Specifications

X Travel

660 mm (26.0 in)

Y Travel

510 mm (20.1 in)

Z Travel

460 mm (18.1 in)

Max Spindle

12,000 RPM (optional 15,000 RPM)

Spindle Taper

BT40

Tool Capacity

24 standard (30 optional)

Overview

The Matsuura VX-660 is the smallest member of the VX series vertical machining centers, designed as a compact, rigid production VMC for shops machining small-to-medium parts in steel, cast iron, and aluminum. The VX series represents Matsuura's general-purpose VMC lineup, positioned below the automation-focused 5-axis MX and MAM72 families but sharing the same Matsuura build quality and Japanese manufacturing precision.

Axis travel measures 660 x 510 x 460 mm (26.0 x 20.1 x 18.1 in) on X/Y/Z. The table is 900 x 500 mm (35.4 x 19.7 in) with a load capacity of 500 kg (1,102 lb), providing ample room for multi-part fixturing or moderate-sized single workpieces. The standard spindle is a BT40 taper running at 12,000 RPM with 15 kW (20 hp) of power. A 15,000 RPM high-speed option is available for aluminum-dominant applications. Rapid traverse reaches 42 m/min on all three axes.

The VX-660 uses hardened and ground box-way construction on all axes for rigidity and vibration damping that surpasses linear-guide machines in heavy cutting stability. The tool magazine holds 24 tools standard with a 30-tool option. Tool-to-tool change time is 1.2 seconds. Through-spindle coolant runs at 15 bar standard. The machine runs on Matsuura's G-Tech 31i control (FANUC 31i-B5 based) with touchscreen interface.

At approximately 5,200 kg (11,464 lb) with a footprint of 2,500 x 2,200 mm, the VX-660 fits comfortably in shops with limited floor space. The machine competes in the mid-range VMC segment against the Haas VF-2, Okuma GENOS M460-VE, Mazak VCN-430A, and Brother Speedio S500Xd1. Matsuura's box-way construction and Japanese build quality are the primary differentiators in a crowded field of roller-guide competitors.

Full Specifications

Parameter	Value
X-Axis Travel	660 mm (26.0 in)
Y-Axis Travel	510 mm (20.1 in)
Z-Axis Travel	460 mm (18.1 in)
Table Size	900 x 500 mm (35.4 x 19.7 in)
Table Load Capacity	500 kg (1,102 lb)
Max Spindle Speed	12,000 RPM (optional 15,000 RPM)
Spindle Taper	BT40
Spindle Motor Power	15 kW (20 hp)
Spindle Torque	120 Nm
Tool Capacity	24 standard (30 optional)
Rapid Traverse Xyz	42 m/min (1,654 ipm)
Tool Change Time	1.2 sec (tool-to-tool)
Through Spindle Coolant	15 bar standard
Guideway Type	Box ways (hardened and ground)
Machine Weight	5,200 kg (11,464 lb)
Floor Space Required	2,500 x 2,200 mm
CNC Control	Matsuura G-Tech 31i (FANUC 31i-B5 based, touch screen)
Mx Series	MAM72 Series
Mx 330mx 330 Pc10mx 420 Pc10mx 520mx 520 Pc4mx 520tmx 850mx 850 Pc4	MAM72-35VMAM72-42VMAM72-52VMAM72-70VMAM72-100H
Max Work Sizemm	940×550 (37.01×21.65)
Spindle Speedrpm	50 - 15000
Travel Mm	660 (25.98) / 550 (21.65) / 560 (22.05)
Feed Ratem Min	1 - 48000
Industriesdie Mold	TechnologyVertical Machining Center ›

Specifications sourced from matsuurausa.com — verified 2026-03-28

Strengths & Limitations

Strengths

Box-way construction on all axes delivers superior rigidity and vibration damping compared to roller-guide competitors in heavy interrupted cuts
Compact 2,500 x 2,200 mm footprint fits into shops where larger VMCs cannot go while still providing 660 mm of X travel
Matsuura Japanese build quality and tight assembly tolerances ensure long-term accuracy retention under production conditions
G-Tech 31i touchscreen control provides the same user experience found on Matsuura's more expensive 5-axis platforms
500 kg table load capacity accommodates heavy fixtures and multi-part setups on the 900 x 500 mm table
15 bar through-spindle coolant is standard, not optional, supporting deep-hole drilling and tapping without additional cost

Limitations

24-tool standard magazine is limited for complex jobs requiring many tool changes; 30-tool option is a modest improvement
42 m/min rapid traverse is slower than roller-guide competitors that reach 48-60 m/min, adding cycle time on positioning-heavy jobs
460 mm Z-axis travel may be limiting for tall workpieces or long-reach tooling applications
Matsuura VMC resale values in North America trail Haas and Mazak due to a smaller installed base

Best For

Job shops running mixed steel and aluminum work where box-way rigidity provides better surface finish and tool life than roller-guide machines Automotive and hydraulic component manufacturers machining small production parts requiring consistent accuracy over long runs Mold and die shops doing secondary machining, electrode work, and small mold inserts on a rigid platform Shops with limited floor space that need a capable production VMC in the smallest possible footprint Production cells running repetitive small-part programs where Matsuura reliability minimizes unplanned downtime

Frequently Asked Questions

01 What does a Matsuura VX-660 cost?

New VX-660 pricing typically ranges from $120,000 to $200,000 depending on spindle speed option, tool magazine size, and accessories. This positions it competitively against the Haas VF-2 (slightly less expensive) while offering box-way construction that the Haas does not. Used machines trade between $50,000 and $120,000 depending on age and condition.

02 How does the VX-660 compare to the Haas VF-2?

The VX-660 offers box-way construction versus the Haas inline roller guides, providing better rigidity for heavy cutting in steel and cast iron. The Haas VF-2 has slightly more X travel (762 mm vs 660 mm) and a larger installed base with cheaper consumables. The Matsuura is the better choice for shops prioritizing cut quality and long-term accuracy; the Haas is more cost-effective for shops prioritizing value and ease of service.

03 Is the VX-660 suitable for aluminum high-speed machining?

The standard 12,000 RPM spindle handles aluminum adequately, and the 15,000 RPM option improves surface speed capability. However, the box-way construction and 42 m/min rapids mean this is not an optimized high-speed aluminum machine. For dedicated high-speed aluminum work, consider a roller-guide VMC with 20,000+ RPM spindle. The VX-660 excels when you need a versatile machine that does both steel and aluminum well.

04 What control does the VX-660 use?

The VX-660 runs Matsuura's G-Tech 31i control, which is based on the FANUC 31i-B5 platform with Matsuura's custom touchscreen interface. It provides the same look and feel as the controls on Matsuura's 5-axis MX and MAM72 machines. Programming is standard FANUC G-code, making it familiar to any operator with CNC experience.
