AWEA BM-2100 MAX

Q: How much does the AWEA BM-2100 MAX cost?

The price estimate for the AWEA BM-2100 MAX is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/awea-bm-2100-max#price; the request is passed to AWEA or an authorised dealer.

Specs verified 2026-10-04 · awea.com Updated 2026-10-04

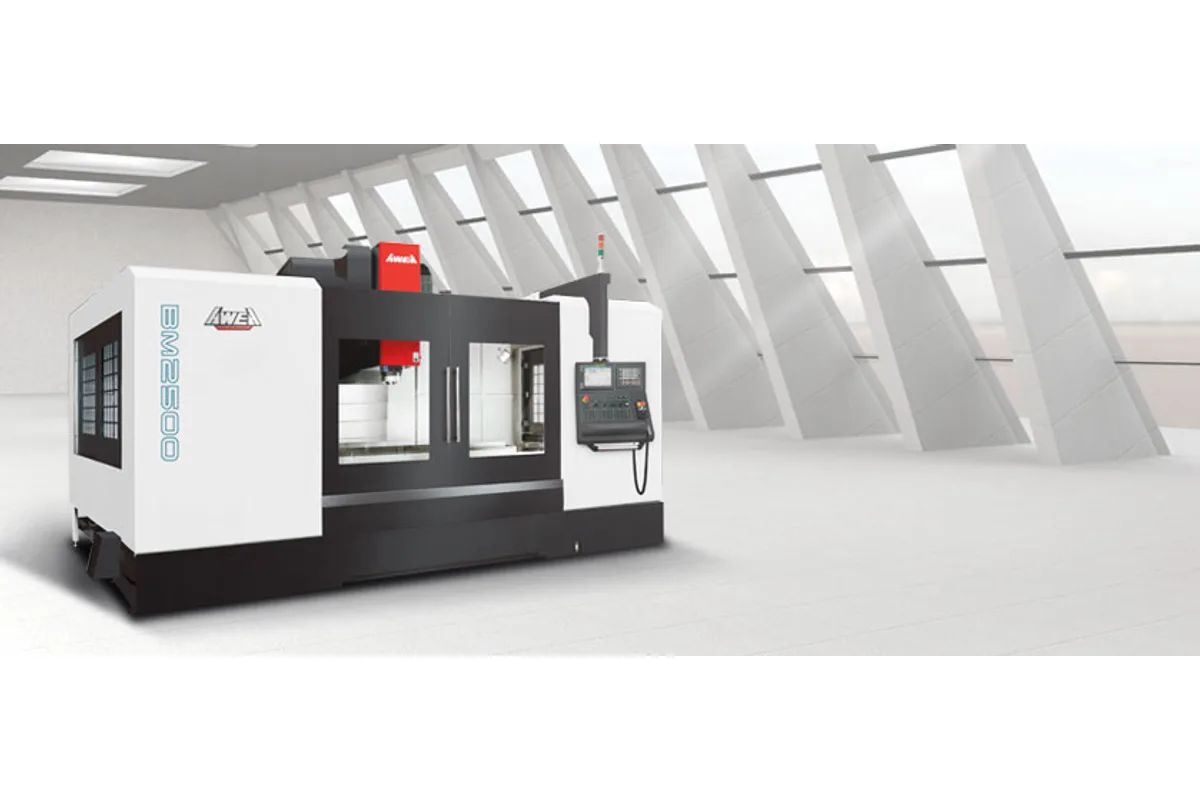

AWEA BM MAX series vertical machining center (BM-2500 MAX shown)

Image: awea.com, AWEA

Key Specifications

Max Spindle

Gear Spindle 6,000 rpm

Spindle Taper

BT50

Tool Capacity

24 T

Table Size

2,300 x 1,000 mm (90.6 x 39.4 in)

Spindle Power

15 / 18.5 kW (20.1 / 24.8 hp)

Accuracy

0.008 mm

How much does the AWEA BM-2100 MAX cost?

Price estimate

Uncertain

We do not have a price for the AWEA BM-2100 MAX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

With the AWEA BM-2100 MAX the BM series reaches one metre in Y and Z. This box-way vertical machining center travels 2,100 mm (82.7 in) in X and 1,000 mm (39.4 in) in each of the other two axes, on a 2,300 x 1,000 mm (90.6 x 39.4 in) table that carries 3,000 kg (6,614 lb).

A saddle with a metre of stroke under a three-tonne table is a hard thing to keep supported on a C-frame. AWEA equips the table base of this model and the BM-2500 MAX with 6 guideways, which the maker says solves the overhang problem and keeps the table fully supported. The spindle center sits 1,100 mm (43.3 in) from the column.

The spindle changes too. BT50 is the only taper listed, and the gear spindle's motor is 15 / 18.5 kW (20.1 / 24.8 hp), the largest in the BM line, at 6,000 rpm. Axis speeds drop again: 15 m/min (591 ipm) for X and Y rapids and 12 m/min (472 ipm) for Z. On a machine built to take long, heavy cuts, positioning time is a small part of the cycle.

Chip handling scales up as well, with five screw type augers on the two largest models according to AWEA's chart. The coolant tank holds 950 liter. Machine weight is 20,000 kg (44,092 lb), and the supply requirement is 40 kVA. The spindle nose can stand between 200 and 1,200 mm (7.9 ~ 47.2 in) above the table.

Full Specifications

Parameter	Value
X Axis Travel	2,100 mm (82.7 in)
Y Axis Travel	1,000 mm (39.4 in)
Z Axis Travel	1,000 mm (39.4 in)
Table Size	2,300 x 1,000 mm (90.6 x 39.4 in)
Max Table Load	3,000 kg (6,614 lb)
Distance Spindle Center to Column	1,100 mm (43.3 in)
Distance Spindle Nose to Table	200 ~ 1,200 mm (7.9 ~ 47.2 in)
Spindle Taper	BT50
Spindle Motor Power	15 / 18.5 kW (20.1 / 24.8 hp)
Max Spindle Speed	Gear Spindle 6,000 rpm
Rapid Traverse Xy	15 m/min (591 ipm)
Rapid Traverse Z	12 m/min (472 ipm)
Cutting Feed Rate	1 - 12 m/min (39 - 472 ipm)
Tool Capacity	24 T
Max Tool Length	250 mm (9.8 in)
Max Tool Weight	15 kg (33 lb)
Max Tool Diameter (full magazine)	Ø105 / Ø210 mm (Ø4.1 / Ø8.3 in)
Positioning Accuracy	0.008 mm
Repeatability	0.006 mm
CNC Control	FANUC Oi -MF Plus
Air Pressure Requirement	6 kg/cm²
Power Requirement	40 kVA
Coolant Tank Capacity	950 liter
Machine Weight	20,000 kg (44,092 lb)

Specifications sourced from awea.com — verified 2026-10-04

Strengths & Limitations

Strengths

1,000 mm (39.4 in) of travel in both Y and Z with 2,100 mm (82.7 in) of X
3,000 kg (6,614 lb) table load on a 2,300 x 1,000 mm (90.6 x 39.4 in) table
Table base on 6 guideways to prevent overhang
15 / 18.5 kW (20.1 / 24.8 hp) gear spindle in BT50, the largest motor in the BM line
Five screw type chip augers and a 950 liter coolant tank

Limitations

Rapids of 15 m/min (591 ipm) in X and Y and 12 m/min (472 ipm) in Z
BT50 only; no BT40 option is listed
24-tool standard magazine on a machine of this size
20,000 kg (44,092 lb) machine weight calls for a prepared foundation

Best For

Large die sets and mold bases up to 3,000 kg (6,614 lb) Deep, tall workpieces needing 1,000 mm (39.4 in) of Z Heavy roughing with BT50 tooling at low speed Machine frames and weldments up to 2,100 mm long

Frequently Asked Questions

01 How large is the AWEA BM-2100 MAX work envelope?

Travels are 2,100 mm (82.7 in) in X, 1,000 mm (39.4 in) in Y and 1,000 mm (39.4 in) in Z. The table is 2,300 x 1,000 mm (90.6 x 39.4 in) with a 3,000 kg (6,614 lb) rating. Spindle nose to table top distance is 200 ~ 1,200 mm (7.9 ~ 47.2 in).

02 How is the table supported on the BM-2100 MAX?

AWEA states that on the BM-2100MAX and BM-2500MAX the table base is equipped with 6 guideways to solve the overhang problem and provide full support for rigidity. The maker also describes a double ribbed table design and Bessel-point support of the Y-axis saddle for the series.

03 What spindle power does the BM-2100 MAX have?

The gear spindle motor is rated 15 / 18.5 kW (20.1 / 24.8 hp) and the top speed is 6,000 rpm. The taper is BT50. The BM-1800 MAX below it has an 11 / 15 kW (14.8 / 20.1 hp) motor.

04 What size tools does the BM-2100 MAX accept?

Up to 250 mm (9.8 in) long and 15 kg (33 lb), with a diameter of Ø105 mm in a full magazine or Ø210 mm with the adjacent pockets empty. The standard arm type magazine holds 24 tools; AWEA offers 30T and 40T magazines for the series.
