Hedelius FORTE 65 Single 1320 EL

Q: How much does the Hedelius FORTE 65 Single 1320 EL cost?

The price estimate for the Hedelius FORTE 65 Single 1320 EL is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/hedelius-forte-65-single-1320-el#price; the request is passed to Hedelius or an authorised dealer.

Specs verified 2026-10-04 · hedelius.de Updated 2026-10-04

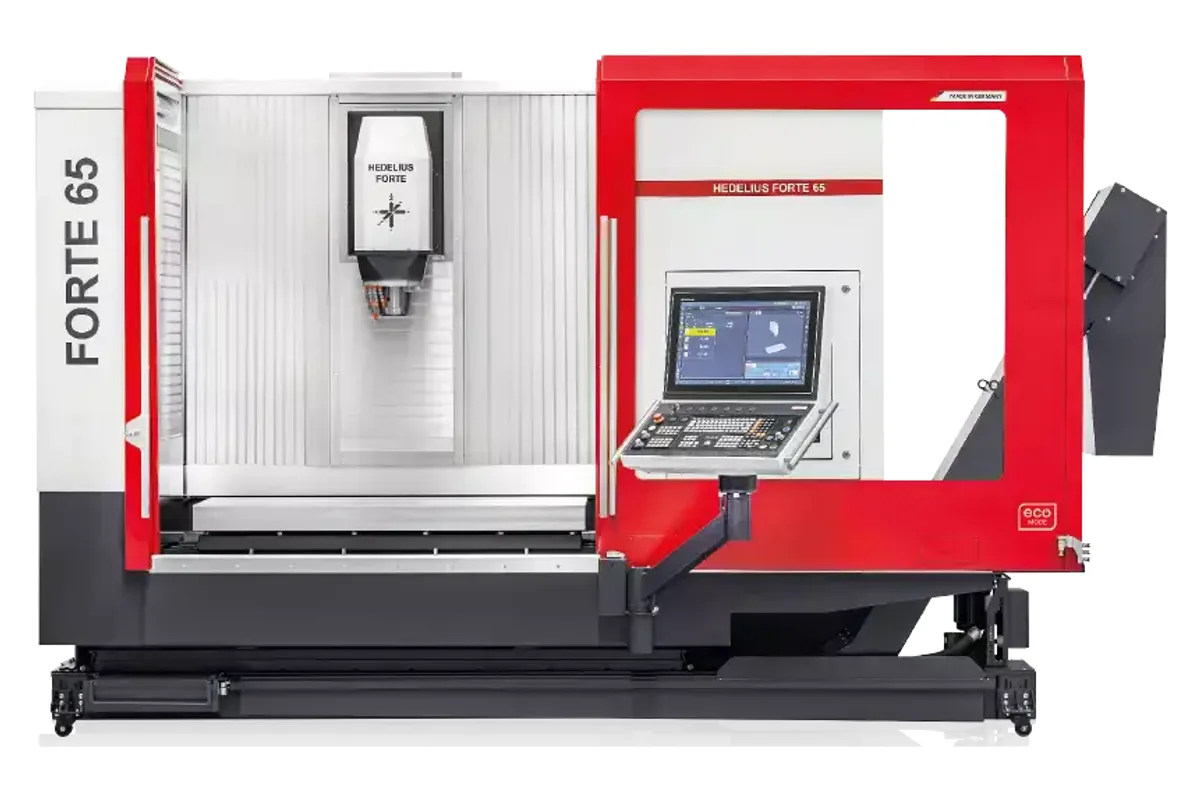

Hedelius FORTE 65 Single 1320 EL 3-axis travelling column machining centre

Image: hedelius.de, Hedelius

Key Specifications

Spindle Taper

SK 40, BT 40, HSK A63

Tool Capacity

65 / 135 / 180 / 245 / 329

Table Size

1,500 x 650 mm (59.1 x 25.6 in)

Spindle Power

22 / 29 / 50 / 35 / 30 kW (29.5 / 38.9 / 67.1 / 46.9 / 40.2 hp) (spindle options)

x axis travel

1,320 mm (52.0 in)

y axis travel

650 mm (25.6 in)

How much does the Hedelius FORTE 65 Single 1320 EL cost?

Price estimate

Uncertain

We do not have a price for the Hedelius FORTE 65 Single 1320 EL that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

For an automation project on three axes, Hedelius offers the FORTE 65 Single 1320 EL: the 1,320 mm travelling column machine with a pneumatically activated stainless steel loading door in its left-hand side and a prepared automation interface. The side opening is approx. 910 mm high. A pallet handling system or a robot loads through it, and the operator keeps the front of the machine.

Travel paths are 1,320 x 650 x 600 mm in X, Y and Z. The fixed machine table has a contact surface of 1,500 x 650 mm, and the page gives its maximum load as 1,200/2,000 kg without explaining the two figures. Hedelius points out that the dynamics of this design do not depend on the workpiece weight, which follows from the column moving while the table stands still. For a loader that is helpful too, since the transfer position never changes.

The spindle list is longer than on the smaller EL machine. Five units are shown: SK 40 / BT 40 at 14,000 rpm with 117 Nm and 22 kW or with 183 Nm and 29 kW, and HSK A63 at 15,000 rpm with 217 Nm and 50 kW, at 18,000 rpm with 136 Nm and 35 kW, or at 24,000 rpm with 123 Nm and 30 kW.

The page states 65 tools as standard and capacities of 65 / 135 / 180 / 245 / 329 with standby magazines. Hedelius does not print a data sheet column of its own for the EL, so weight, feed force and tool limits should be confirmed for this version before a cell is laid out around it.

Full Specifications

Parameter	Value
X Axis Travel	1,320 mm (52.0 in)
Y Axis Travel	650 mm (25.6 in)
Z Axis Travel	600 mm (23.6 in)
Spindle Motor Power	22 / 29 / 50 / 35 / 30 kW (29.5 / 38.9 / 67.1 / 46.9 / 40.2 hp) (spindle options)
Spindle Speed	14,000 / 15,000 / 18,000 / 24,000 min-1 (spindle options)
Spindle Taper	SK 40, BT 40, HSK A63
Tool Capacity	65 / 135 / 180 / 245 / 329
Table Size	1,500 x 650 mm (59.1 x 25.6 in)
Max Table Load	1,200/2,000 kg (2,646/4,409 lb)
Spindle Option 1	SK 40 / BT 40, CELOX 14,000 1/min, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp)
Spindle Option 2	SK 40 / BT 40, CELOX 14,000 1/min, 183 Nm (135 lb-ft), 29 kW (38.9 hp)
Spindle Option 3	HSK A63, CELOX 15,000 1/min, 217 Nm (160 lb-ft), 50 kW (67.1 hp)
Spindle Option 4	HSK A63, CELOX 18,000 1/min, 136 Nm (100 lb-ft), 35 kW (46.9 hp)
Spindle Option 5	HSK A63, CELOX 24,000 1/min, 123 Nm (90.7 lb-ft), 30 kW (40.2 hp)

Specifications sourced from hedelius.de — verified 2026-10-04

Strengths & Limitations

Strengths

Loading door on the left-hand side with an opening height of approx. 910 mm
Prepared automation interface, described as suitable for numerous pallet handling or robot systems
Five spindles, up to 217 Nm and 50 kW or 24,000 rpm with 30 kW
Fixed 1,500 x 650 mm table, so the transfer position for the loader never moves
65 tools as standard with listed capacities up to 329

Limitations

No separate data sheet column for the EL: weight, feed force and tool limits are not published for this version
The table load is printed as 1,200/2,000 kg with no explanation of which figure applies
The handling system is a separate purchase and needs floor space on the left
Three axes only, so multi-sided work needs re-clamping or an added rotary device

Best For

Automated 3-axis series work on parts up to 1,320 mm long Pallet or robot cells where the supplier of the automation is open Heavy cuts under automation with the 217 Nm, 50 kW spindle Mixed manual and unattended operation on one machine

Frequently Asked Questions

01 How is the FORTE 65 Single 1320 EL loaded automatically?

From the left-hand side of the machine through a pneumatically activated stainless steel loading door. The side loading opening is approx. 910 mm high. Hedelius states that this enables automatic loading of pallets or workpieces without restricting access to the machine work area.

02 What automation can be attached to the FORTE 65 Single 1320 EL?

Hedelius lists automation with a pallet handling system or a robot, a prepared automation interface, and suitability for numerous pallet handling or robot systems. The page speaks of a large selection of interfaces for different automation manufacturers.

03 What are the working dimensions of the FORTE 65 Single 1320 EL?

Travel paths of 1,320 x 650 x 600 mm (X/Y/Z), a contact surface of 1,500 x 650 mm on the fixed machine table, and a maximum table load printed as 1,200/2,000 kg. Tool fitting is SK 40, BT 40 or HSK A63.

04 Which spindle suits heavy cutting on the FORTE 65 Single 1320 EL?

The HSK A63 spindle at 15,000 rpm with 217 Nm and 50 kW has the most torque and power of the five listed. In SK 40 / BT 40 the stronger unit gives 183 Nm and 29 kW at 14,000 rpm. For small tools there is a 24,000 rpm HSK A63 spindle with 30 kW.
