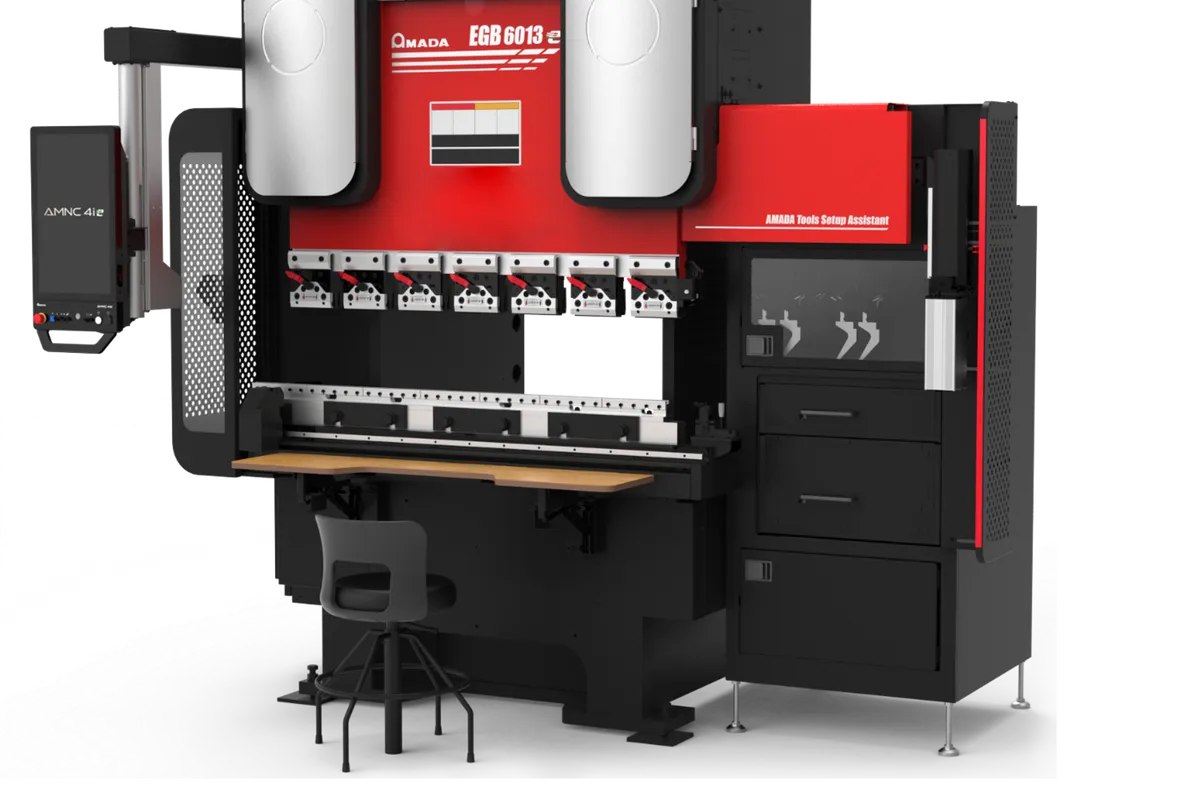

Amada EGB 6013e
Image: amada.com, Amada
Key Specifications
press capacity
bending length
stroke
open height
throat depth
approach speed
How much does the Amada EGB 6013e cost?
Estimated price range
Our best estimate for a cnc press brake in this class — not a quote from Amada. Configuration moves it a long way.
Overview
The Amada EGB 6013e is an all-electric servo press brake of 600 kN (60 metric tons, 67 US tons) with a 1,300 mm (51.2 in) bending length. The listed figures below should be confirmed with Amada before ordering.
It is a short, strong machine. 600 kN over 1,300 mm (51.2 in) is the same force the EGB 6020e spreads over 2150 mm, so thicker material is practical at full length. The envelope is tight: 150 mm (5.9 in) of stroke, 335 mm (13.2 in) of open height and a 215 mm (8.5 in) throat.
The ram approaches at 100 mm/s (3.9 in/s), presses at 10 mm/s (0.4 in/s) and returns at 120 mm/s (4.7 in/s), with a listed ram repeatability of ±0.001 mm (±0.00004 in). The drive is described as all-electric servo with no hydraulics, crowning compensation is electric, and the back gauge is multi-axis with independent servo drives. Control is the Amada AMNC 4ie, listed with a touchscreen and voice command.
Services are light: 200V and 12 kVA, a weight of approximately 3,700 kg (8,157 lb) and a noise level under 70 dB.
Full Specifications
| Parameter | Value |
|---|---|
| Press Capacity | 600 kN / 60 metric tons (67 US tons) |
| Bending Length | 1,300 mm (51.2 in) |
| Stroke | 150 mm (5.9 in) |
| Open Height | 335 mm (13.2 in) |
| Throat Depth | 215 mm (8.5 in) |
| Approach Speed | 100 mm/s (3.9 in/s) |
| Pressing Speed | 10 mm/s (0.4 in/s) |
| Return Speed | 120 mm/s (4.7 in/s) |
| Ram Repeatability | ±0.001 mm (±0.00004 in) |
| Drive System | All-electric servo (no hydraulics) |
| CNC Control | Amada AMNC 4ie (touchscreen with voice command) |
| Backgauge Axes | Multi-axis with independent servo drives |
| Crowning | Electric crowning compensation |
| Power Requirement | 200V, 12 kVA |
| Machine Weight | Approximately 3,700 kg (8,157 lb) |
| Noise Level | < 70 dB |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- 600 kN (60 metric tons) on a 1,300 mm (51.2 in) bending length gives high force for short parts
- All-electric servo drive with no hydraulics, and electric crowning compensation
- Listed ram repeatability of ±0.001 mm (±0.00004 in)
- Modest services: 200V, 12 kVA, with a noise level under 70 dB
Limitations
- Bending length stops at 1,300 mm (51.2 in); the EGB 6020e reaches 2150 mm at the same 600 kN
- 150 mm (5.9 in) stroke and 335 mm (13.2 in) open height limit tall tooling and deep boxes
- The 215 mm (8.5 in) throat restricts how deep a part can sit behind the tooling
- The back gauge is listed only as multi-axis; the number of axes is not stated
Best For
Frequently Asked Questions
01
The listed figures are 600 kN, shown as 60 metric tons or 67 US tons, and a bending length of 1,300 mm (51.2 in). That is a high force for the length, which favours thicker material on short parts.
02
The drive system is listed as all-electric servo with no hydraulics. Crowning compensation is electric as well, and the back gauge is described as multi-axis with independent servo drives.
03
Listed speeds are 100 mm/s (3.9 in/s) on approach, 10 mm/s (0.4 in/s) while pressing and 120 mm/s (4.7 in/s) on return. The stroke is 150 mm (5.9 in), so the travel on each cycle is short.
04
The power requirement is listed as 200V, 12 kVA, and the machine weight as approximately 3,700 kg (8,157 lb). Both are worth confirming with Amada for the exact configuration before the site is prepared.
