LVD PPEC 80/25

Q: How much does the LVD PPEC 80/25 cost?

The price estimate for the LVD PPEC 80/25 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/lvd-ppec-80-25#price; the request is passed to LVD or an authorised dealer.

Specs verified 2026-10-05 · lvdgroup.com Updated 2026-10-05

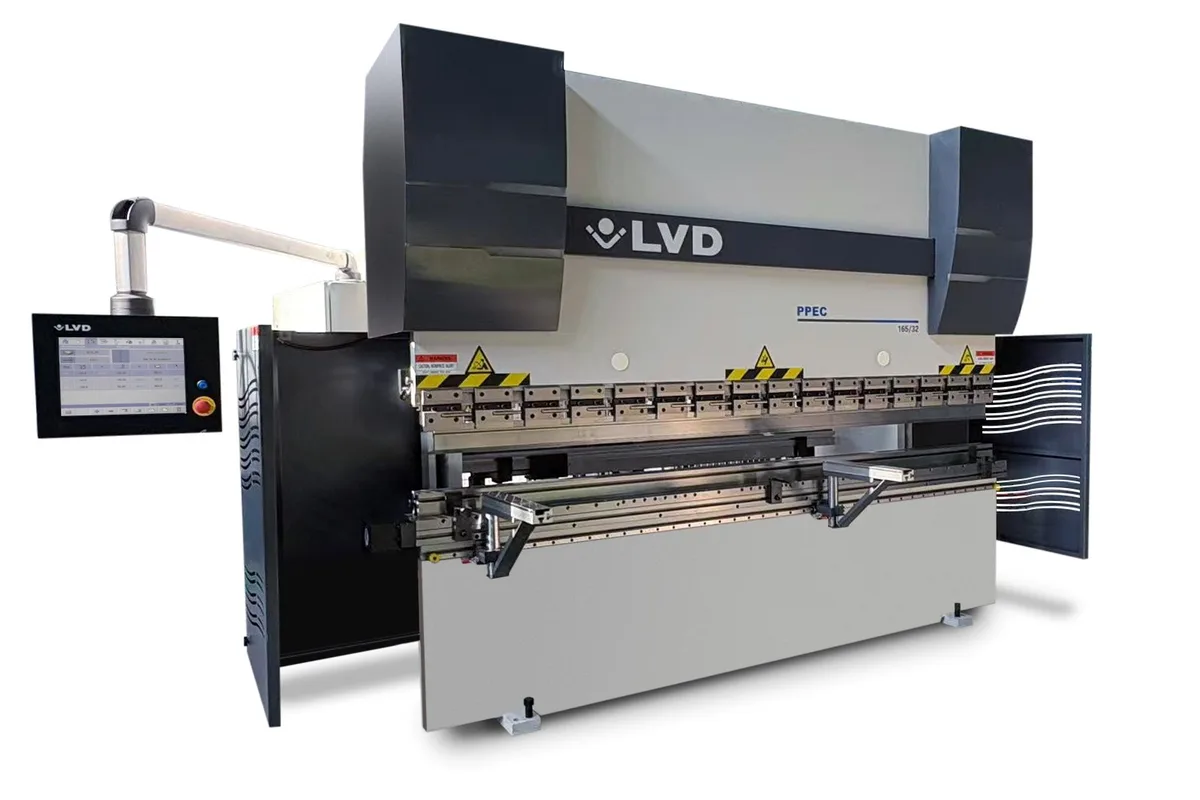

Image: lvdgroup.com, LVD

Key Specifications

pressing force

800 kN

bending length

2,550 mm (100.4 in)

width between columns

2,050 mm (80.7 in)

ram stroke

200 mm (7.9 in)

open height

440 mm (17.3 in)

throat depth

410 mm (16.1 in)

How much does the LVD PPEC 80/25 cost?

Price estimate

Uncertain

We do not have a price for the LVD PPEC 80/25 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The LVD PPEC 80/25 is the largest of the three PPEC-4 models: 800 kN, a 2,550 mm (100.4 in) working length and a throat of 410 mm (16.1 in). The series is offered only for non-CE markets, according to LVD.

The throat sets it apart from the two smaller sizes. The PPEC 50/20 has 305 mm. With 410 mm, and 2,050 mm (80.7 in) between the uprights, a full-length sheet can carry a deep flange into the side frames, which is how standard 2,500 mm sheet is usually bent on a machine of this width.

A curious row is the motor. The servo motor is rated 5.5 kW, exactly as on the PPEC 40/12,5 with half the force. The oil tank is larger, at 260 L, and the speeds a little lower: 200 mm/s approach, 14 mm/s working and 180 mm/s return.

Stroke is 200 mm (7.9 in) under 440 mm (17.3 in) of open height. The table is 60 mm (2.4 in) wide, narrow for an 800 kN machine, so check that the intended dies seat on it.

Overall the machine measures 2,650 mm (104.3 in) by 1,650 mm (65.0 in) and is 2,300 mm (90.6 in) high. Its axes are Y1-Y2-X-R. Options listed for the PPEC include hydraulic clamping, programmable sheet followers and LED status lighting.

Full Specifications

Parameter	Value
Pressing Force	800 kN
Bending Length	2,550 mm (100.4 in)
Width Between Columns	2,050 mm (80.7 in)
Ram Stroke	200 mm (7.9 in)
Open Height	440 mm (17.3 in)
Throat Depth	410 mm (16.1 in)
Table Width	60 mm (2.4 in)
Approach Speed	200 mm/s
Bending Speed	14 mm/s
Return Speed	180 mm/s
Servo Motor Power	5.5 kW
Oil Tank Capacity	260 L
Machine Length	2,650 mm (104.3 in)
Machine Width	1,650 mm (65.0 in)
Machine Height	2,300 mm (90.6 in)
Series Type	PPEC-4
Controlled Axes	Y1-Y2-X-R

Specifications sourced from lvdgroup.com — verified 2026-10-05

Strengths & Limitations

Strengths

410 mm (16.1 in) throat for deep flanges on full-length sheet
800 kN across 2,550 mm (100.4 in)
Runs on a 5.5 kW servo motor
200 mm/s approach and 180 mm/s return
Options for hydraulic clamping and sheet followers

Limitations

Not available in CE markets
Table only 60 mm (2.4 in) wide
Largest PPEC-4: no V axis in its axis list
2,050 mm (80.7 in) between the uprights

Best For

Standard 2,500 mm sheet with deep flanges Cabinet, duct and panel work outside CE markets Shops wanting 800 kN on a small motor

Frequently Asked Questions

01 What is the throat depth of the PPEC 80/25?

410 mm (16.1 in). The PPEC 50/20 has 305 mm. Parts longer than the 2,050 mm (80.7 in) between the uprights can reach that deep into the side frames.

02 What motor does it have?

A 5.5 kW servo motor with a 260 L oil tank. LVD describes the servo-controlled hydraulic system as giving programmable control of ram movement with energy-efficient operation.

03 What is the next size up?

The PPEC 110/32, a PPEC-5 with 1,100 kN, a 3,200 mm working length, a 100 mm wide table and the axes Y1-Y2-X-V-R.

04 Which options does LVD list?

Quick-change hydraulic clamping, programmable sheet followers, LED status lighting and tandem configuration. Front sheet supports are standard and need not be ordered.
