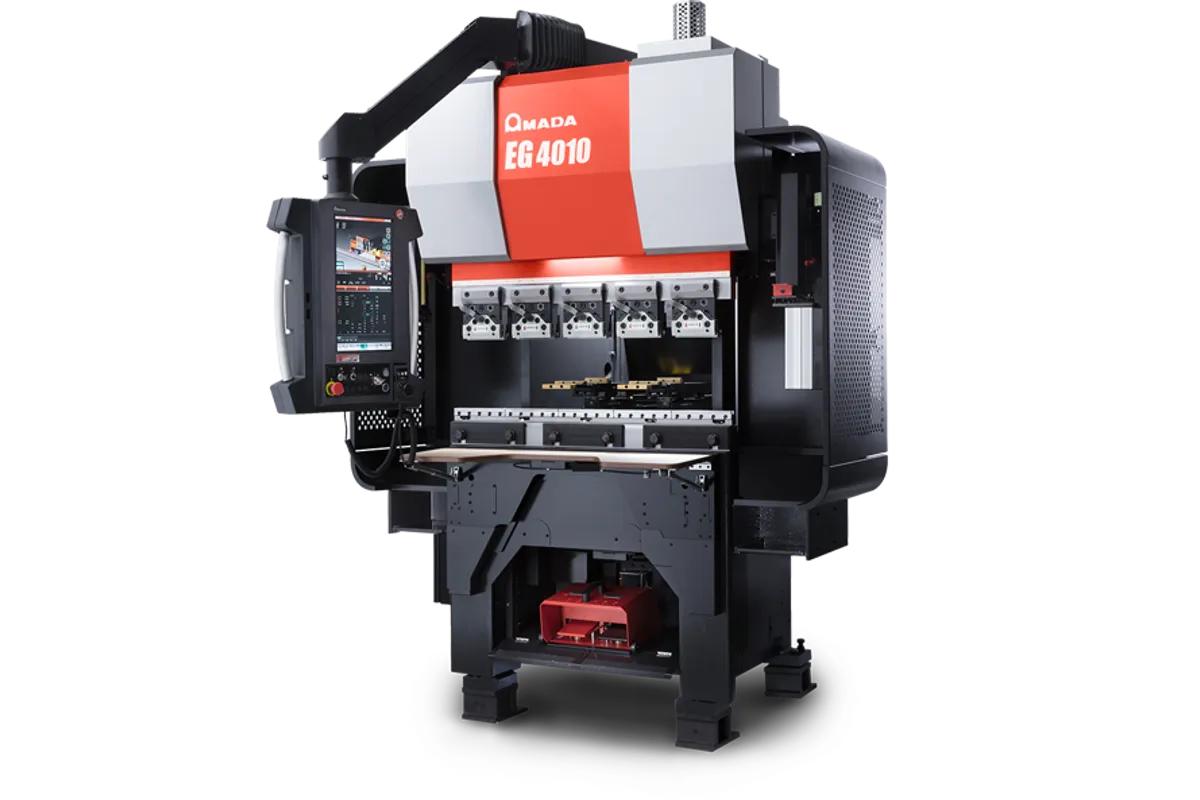

Amada EG-4010
Image: amada.com, Amada
Key Specifications
press capacity
press beam length
stroke
open height
throat depth
approach speed
How much does the Amada EG-4010 cost?
Estimated price range
Our best estimate for a cnc press brake in this class — not a quote from Amada. Configuration moves it a long way.
Overview
The Amada EG-4010 is a small electric press brake: 400 kN of press capacity, which the table also gives as 40 metric tons (45 US tons), on a 1,020 mm (40.2 in) beam. The drive is listed as dual AC servo electric with no hydraulics. These are the listed figures, and they should be confirmed against a quotation or the machine itself before a decision rests on them.
A beam this short defines the work. Parts longer than 1,020 mm (40.2 in) are out, and the 200 mm (7.9 in) throat depth limits how far a wider blank can pass beside the frame. Inside that envelope the ram has 150 mm (5.9 in) of stroke under a 295 mm (11.6 in) open height. That is the space shared by punch, die and the part being lifted out, so deep boxes and tall tooling need to be checked against both numbers together.
The ram figures suit short cycles on small parts. Approach is 100 mm/sec (3.9 in/sec), pressing 10 mm/sec (0.4 in/sec) and return 120 mm/sec (4.7 in/sec). Ram repeatability is listed at ±0.001 mm (±0.00004 in), and the backgauge is 4-axis. The control is the AMNC 3i with a 15.6-inch touchscreen.
Installation demands are light: 200V at 8 kVA, 2,800 kg (6,173 lb) and a listed noise level of < 70 dB. The EGB 6020e, by comparison, is listed at 5500 kg (approximate), so the EG-4010 is about half that mass.
Full Specifications
| Parameter | Value |
|---|---|
| Press Capacity | 400 kN / 40 metric tons (45 US tons) |
| Press Beam Length | 1,020 mm (40.2 in) |
| Stroke | 150 mm (5.9 in) |
| Open Height | 295 mm (11.6 in) |
| Throat Depth | 200 mm (7.9 in) |
| Approach Speed | 100 mm/sec (3.9 in/sec) |
| Pressing Speed | 10 mm/sec (0.4 in/sec) |
| Return Speed | 120 mm/sec (4.7 in/sec) |
| Ram Repeatability | ±0.001 mm (±0.00004 in) |
| Drive System | Dual AC servo electric (no hydraulics) |
| CNC Control | AMNC 3i (15.6-inch touchscreen) |
| Backgauge Axes | 4-axis |
| Power Requirement | 200V, 8 kVA |
| Machine Weight | 2,800 kg (6,173 lb) |
| Noise Level | < 70 dB |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Dual AC servo electric drive with no hydraulics
- Listed ram repeatability of ±0.001 mm (±0.00004 in)
- Runs on 200V at 8 kVA and weighs 2,800 kg (6,173 lb)
- 4-axis backgauge and AMNC 3i control with a 15.6-inch touchscreen
- Listed noise level of < 70 dB
Limitations
- The 1,020 mm (40.2 in) beam rules out longer parts
- 400 kN, or 40 metric tons (45 US tons), limits material thickness and bend length together
- Open height of 295 mm (11.6 in) with 150 mm (5.9 in) of stroke restricts tall tooling and deep boxes
- Pressing speed is listed at 10 mm/sec (0.4 in/sec)
Best For
Frequently Asked Questions
01
The listed press capacity is 400 kN, given also as 40 metric tons (45 US tons), over a press beam length of 1,020 mm (40.2 in). Throat depth is 200 mm (7.9 in).
02
Open height is listed at 295 mm (11.6 in) and stroke at 150 mm (5.9 in). Add up punch height, die height and the flange that has to clear on the way out, and compare the total with those two numbers before choosing tooling.
03
The drive system is listed as dual AC servo electric with no hydraulics. The listed power requirement is 200V and 8 kVA, and the listed noise level is < 70 dB.
04
The listed speeds are 100 mm/sec (3.9 in/sec) on approach, 10 mm/sec (0.4 in/sec) while pressing and 120 mm/sec (4.7 in/sec) on return. Ram repeatability is listed at ±0.001 mm (±0.00004 in).
