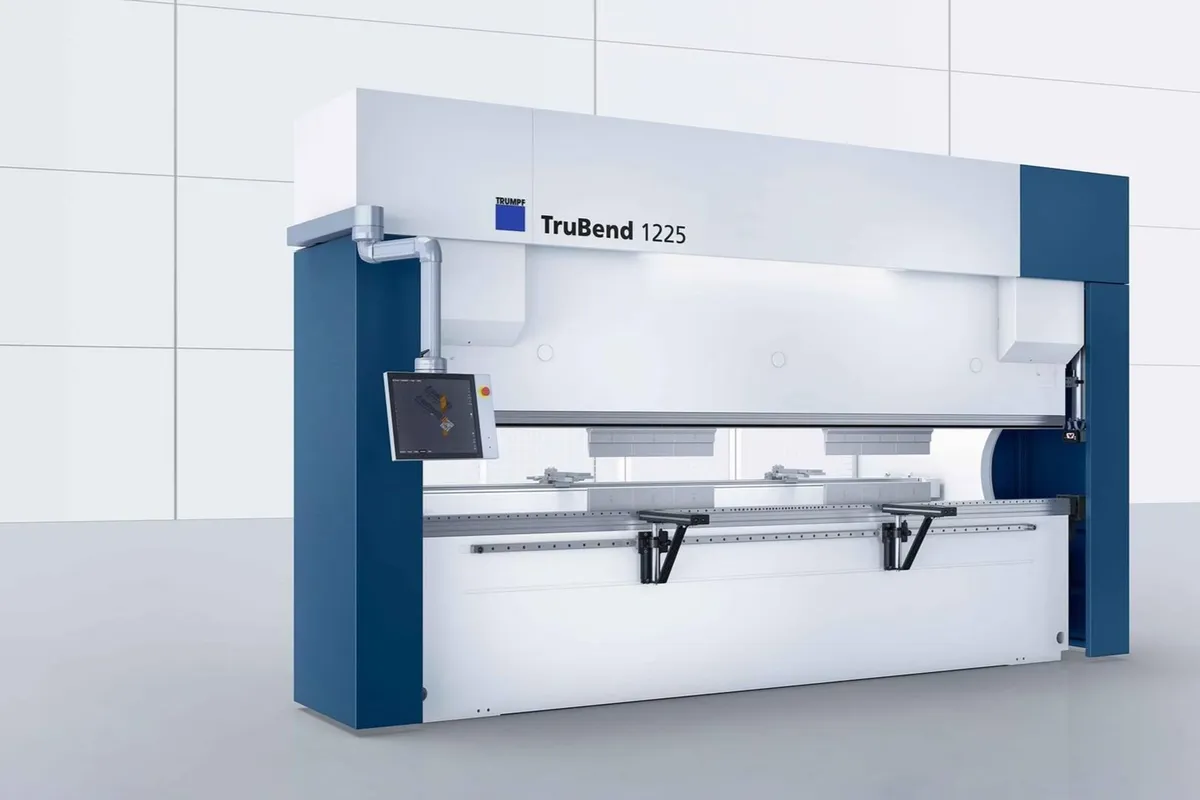

Trumpf TruBend Series 1000

Est. $80,000 - $200,000 (new, model dependent) Updated 2026-10-03

Key Specifications

press force range

600 kN - 3,200 kN (60 - 320 metric tons)

models

1060, 1150, 1225 (Classic/Comfort), 1320

bending length

2,050 - 4,100 mm (80.7 - 161.4 in)

width between columns

1,600 - 3,700 mm (63.0 - 145.7 in)

open height

380 - 505 mm (15.0 - 19.9 in)

throat depth

350 - 410 mm (13.8 - 16.1 in)

How much does the Trumpf TruBend Series 1000 cost?

Estimated price range

Est.$80,000 - $200,000 (new, model dependent)

Our best estimate for a cnc press brake in this class — not a quote from Trumpf. Configuration moves it a long way.

Overview

The TruBend Series 1000 is listed as a range of hydraulic press brakes covering press forces from 600 kN to 3,200 kN (60 - 320 metric tons) and bending lengths from 2,050 to 4,100 mm (80.7 - 161.4 in). The model row reads 1060, 1150, 1225 and 1320, with Classic and Comfort versions noted.

The two versions differ in the listed rows for crowning and clamping. CNC-controlled crowning is given for Comfort models, and tool clamping is hydraulic on Comfort against QuickClamp on Classic. A shop that changes tooling several times a shift, or bends long parts where beam deflection shows up as an open angle in the middle, should read those rows as the case for Comfort. The drive is hydraulic with synchronization cylinders, the back gauge is a 4-axis CNC unit, and the control is described as Trumpf numeric and graphic programming.

Because every dimension is a range, the listed figures frame the series without describing any one machine. Width between columns runs 1,600 - 3,700 mm (63.0 - 145.7 in), open height 380 - 505 mm (15.0 - 19.9 in) and throat depth 350 - 410 mm (13.8 - 16.1 in). Machine weight spans 5,900 - 20,800 kg (13,007 - 45,856 lb) and machine length 2,760 - 4,800 mm (108.7 - 189.0 in), so foundation and access planning depend entirely on the size chosen. Ask for the data of the individual model before committing.

Full Specifications

Parameter	Value
Press Force Range	600 kN - 3,200 kN (60 - 320 metric tons)
Models	1060, 1150, 1225 (Classic/Comfort), 1320
Bending Length	2,050 - 4,100 mm (80.7 - 161.4 in)
Width Between Columns	1,600 - 3,700 mm (63.0 - 145.7 in)
Open Height	380 - 505 mm (15.0 - 19.9 in)
Throat Depth	350 - 410 mm (13.8 - 16.1 in)
Back Gauge	4-axis CNC
CNC Control	Trumpf numeric and graphic programming
Drive System	Hydraulic with synchronization cylinders
Crowning	CNC-controlled (Comfort models)
Tool Clamping	Hydraulic (Comfort) / QuickClamp (Classic)
Machine Weight Range	5,900 - 20,800 kg (13,007 - 45,856 lb)
Machine Length Range	2,760 - 4,800 mm (108.7 - 189.0 in)
Machine Width Range	1,910 - 2,320 mm (75.2 - 91.3 in)
Machine Height Range	2,500 - 3,410 mm (98.4 - 134.3 in)

Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.

Strengths & Limitations

Strengths

Wide force range, from 600 kN to 3,200 kN (60 - 320 metric tons)
Bending lengths from 2,050 to 4,100 mm (80.7 - 161.4 in)
4-axis CNC back gauge listed for the series
Comfort models are listed with CNC-controlled crowning and hydraulic tool clamping
Open height of 380 - 505 mm (15.0 - 19.9 in), depending on size

Limitations

CNC-controlled crowning is listed for Comfort models only
Classic models use QuickClamp tool clamping in place of the hydraulic clamping on Comfort
Every dimension is given as a range, so the listed figures do not fix the envelope of any single model
The largest machines weigh up to 20,800 kg (45,856 lb) and stand up to 3,410 mm (134.3 in) high

Best For

General bending between 2,050 and 4,100 mm (80.7 - 161.4 in) of bending length Work needing 600 kN to 3,200 kN of press force Long parts on Comfort models, where CNC-controlled crowning is listed Jobs that a 4-axis CNC back gauge can position

Frequently Asked Questions

01 Which models are in the TruBend Series 1000?

The listed models are 1060, 1150, 1225 and 1320, with Classic and Comfort versions noted in the same row. Across them the press force runs from 600 kN to 3,200 kN (60 - 320 metric tons) and the bending length from 2,050 to 4,100 mm (80.7 - 161.4 in).

02 What is the difference between Classic and Comfort on the TruBend Series 1000?

Two rows separate them in the listed figures. Crowning is CNC-controlled on Comfort models. Tool clamping is hydraulic on Comfort and QuickClamp on Classic. No other differences between the versions appear in the table, so confirm the rest of the equipment for the version you are offered.

03 What back gauge and drive does the TruBend Series 1000 use?

The back gauge is listed as a 4-axis CNC unit. The drive system is hydraulic with synchronization cylinders, and the control is described as Trumpf numeric and graphic programming. The listed figures do not include gauge or ram speeds.

04 How large and heavy are the TruBend Series 1000 machines?

Machine weight ranges from 5,900 to 20,800 kg (13,007 - 45,856 lb). Length is 2,760 - 4,800 mm (108.7 - 189.0 in), width 1,910 - 2,320 mm (75.2 - 91.3 in) and height 2,500 - 3,410 mm (98.4 - 134.3 in). Check the hall height and door openings against the specific model.
