Haas Automation Vertical Machining Centers

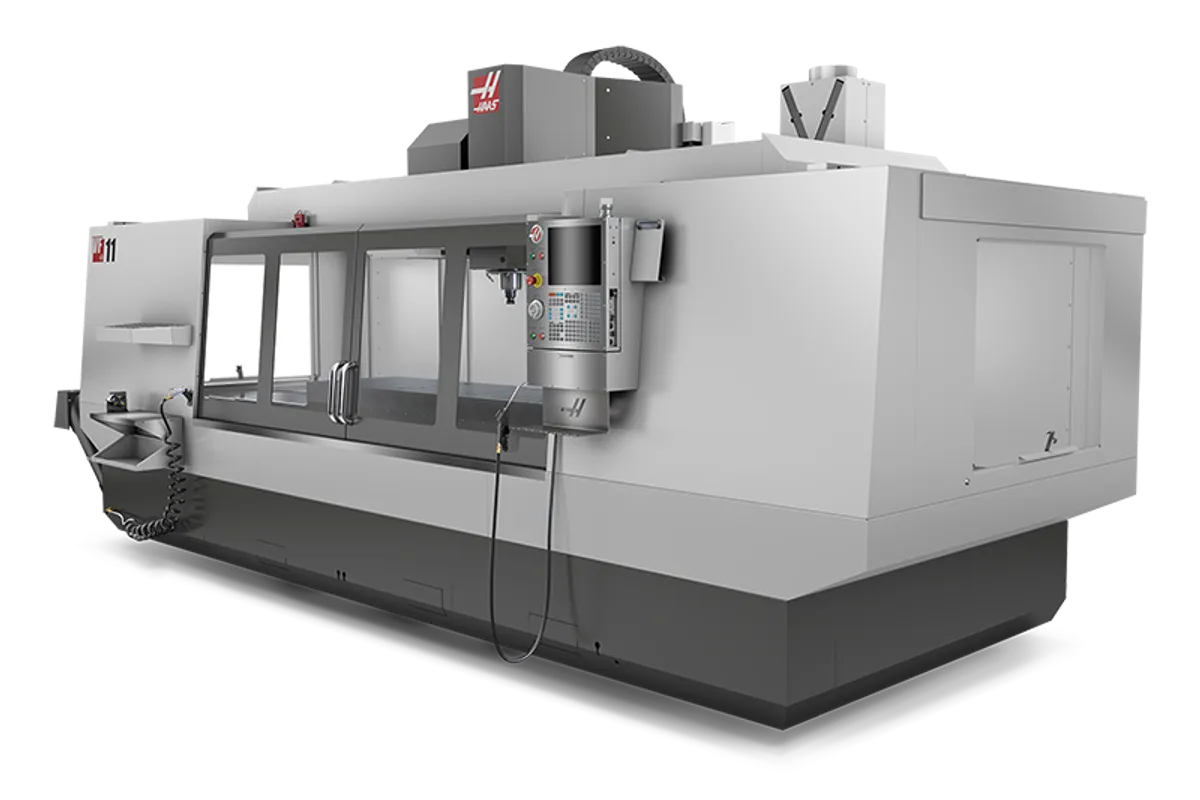

Haas VF-11/40

$320,000 - $390,000 Updated 2026-03-12

Key Specifications

X Travel

3,048 mm (120 in)

Y Travel

1,016 mm (40 in)

Z Travel

762 mm (30 in)

Max Spindle

8,100 RPM

Spindle Taper

CT40 / BT40 / HSK-A63

Tool Capacity

30+1 SMTC

Overview

The Haas VF-11/40 is the wide-Y counterpart to the VF-10/40, combining 3,048 mm (120 in) of X-travel with a full 1,016 mm (40 in) of Y and 762 mm (30 in) of Z. This is the machine you buy when your parts need both 10-foot X-reach and 40-inch Y-width in a single 40-taper setup, and you don't want to step up to a 50-taper or horizontal boring mill platform.

The spindle is the proven 22.4 kW (30 hp) inline direct-drive unit at 8,100 RPM with 122 Nm (90 ft-lbf) of torque at 2,000 RPM. The optional gearbox pushes torque to 339 Nm (250 ft-lbf) at 450 RPM for heavy face milling operations. It accepts CT40, BT40, or HSK-A63 tooling and runs liquid-cooled.

The 3,048 x 711 mm (120 x 28 in) table handles 1,814 kg (4,000 lb) across 5 T-slots on 125 mm centers. Like the VF-10/40, the extended X-axis means X-axis rapids run at 9.1 m/min (360 ipm) rather than the 15.2 m/min (600 ipm) of the shorter models. Y and Z rapids stay at 15.2 m/min (600 ipm).

The SMTC holds 30+1 tools with 2.8-second tool-to-tool and 3.6-second chip-to-chip times. An optional 50+1 SMTC is available for shops that need more tool capacity. At 15,150 kg (33,400 lb), the VF-11/40 is one of the heaviest machines in the entire VF lineup, which translates directly to cutting rigidity.

Starting at around $320,000, the VF-11/40 represents a significant step up from the VF-10/40 at $189,000. The price premium buys you 8 additional inches of Y-travel and the added rigidity of a substantially heavier casting. For shops where the VF-10/40's 32-inch Y-travel is a constraint, the VF-11/40 removes that limitation. But if your work fits within 32 inches of Y, the VF-10/40 saves you over $130,000. Specs sourced from Haas Automation published data.

Full Specifications

Parameter	Value
X-Axis Travel	3,048 mm (120 in)
Y-Axis Travel	1,016 mm (40 in)
Z-Axis Travel	762 mm (30 in)
Spindle Nose To Table Max	864 mm (34 in)
Spindle Nose To Table Min	102 mm (4 in)
Max Spindle Speed	8,100 RPM
Spindle Taper	CT40 / BT40 / HSK-A63
Spindle Motor Power	30.0 hp
Spindle Torque Max	122 Nm (90 ft-lbf) @ 2,000 RPM
Spindle Torque With Gearbox	339 Nm (250 ft-lbf) @ 450 RPM
Spindle Drive	Inline Direct-Drive
Spindle Cooling	Liquid Cooled
Tool Capacity	30+1 SMTC
Tool To Tool	2.80 s
Chip To Chip	3.60 s
Max Tool Diameter	2.5 in
Max Tool Weight	12.0 lb
Table Size	3,048 x 711 mm (120 x 28 in)
Table Load Max	1,814 kg (4,000 lb)
T Slots	5 slots, 125 mm (4.92 in) center distance
Max Cutting Feedrate	9.1 m/min (360 ipm)
Rapid Traverse X	9.1 m/min (360 ipm)
Rapid Traverse Y	15.2 m/min (600 ipm)
Rapid Traverse Z	15.2 m/min (600 ipm)
Max Thrust X	3400 lbf
Max Thrust Y	3400 lbf
Max Thrust Z	5600 lbf
Machine Weight	15,150 kg (33,400 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	95 gal
Air Required	4 scfm @ 100 psi
Electrical Low	220 VAC 3-phase, 70 A
Electrical High	440 VAC 3-phase, 35 A
Travels	S.A.E
X Axis	120.00 in
Y Axis	40.00 in
Z Axis	30.00 in
Spindle Nose To Table	4.0 in
Spindle	S.A.E
Max Rating	30.0 hp
Max Speed	8100 rpm
Max Torque	90.0 ft-lbf @ 2000 rpm
Max Torque W Opt Gearbox	250 ft-lbf @ 450 rpm
Drive System	Inline Direct-Drive
Taper	CT40 \| BT40 \| HSK-A63
Bearing Lubrication	Air / Oil Injection
Cooling	Liquid Cooled
Table	S.A.E
Length	120.0 in
Width	28.0 in
T Slot Width	0.626 in to 0.630 in
T Slot Center Distance	4.92 in
Number Of Std T Slots	5
Max Weight On Table	4000 lb
Feedrates	S.A.E
Max Cutting	360 ipm
Rapids On X	360 ipm
Rapids On Y	600 ipm
Rapids On Z	600 ipm
Axis Motors	S.A.E
Tool Changer	S.A.E
Type	SMTC
Capacity	30+1
Max Tool Diameter Large	5.0 in
Max Tool Diameter Extra Large	6.0 in
Max Tool Length	16.00 in
General	S.A.E
Air Requirements	S.A.E
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A
Dimensions Shipping	S.A.E
Domestic Pallet	288.0 in x 120.0 in x 128.5 in
Export Crate	288.0 in x 123.0 in x 130.5 in
Machine Weight	33400 lb
Domestic Pallet W Ec Option	288 in x 120 in x 135 in
Export Crate W Ec Option	288 in x 123 in x 139 in
Weight W Ec Option	33700 lb
Domestic Pallet W 501 Smtc	288 in x 120 in x 138 in
Export Crate W 501 Smtc	288 in x 123 in x 139 in
Weight W 501 Smtc	33700 lb
Domestic Pallet W Ec Option 501 Smtc	288 in x 120 in x 141 in
Export Crate W Ec Option 501 Smtc	288 in x 123 in x 143 in
Weight W Ec Option 501 Smtc	33700 lb
Haas Rotary	HAAS MACHINE
Ha2ts	VF-11/40
Ha5c	VF-11/40
Ha5c T	VF-11/40
Ha5c2	VF-11/40
Ha5c2 T	VF-11/40
Ha5c3	VF-11/40
Ha5c3 T	VF-11/40
Ha5c4	VF-11/40
Ha5c4 T	VF-11/40
Ha5cs	VF-11/40
Hqda5	VF-11/40
Hrc160	VF-11/40
Hrc210	VF-11/40
Hrt160	VF-11/40
Hrt160 2	VF-11/40
Hrt160sp	VF-11/40
Hrt160ss	VF-11/40
Hrt200hs	VF-11/40
Hrt210	VF-11/40
Hrt210 2	VF-11/40
Hrt210ht	VF-11/40
Hrt210m	VF-11/40
Hrt210sp	VF-11/40
Hrt210ss	VF-11/40
Hrt210vm	VF-11/40
Hrt310	VF-11/40
Hrt310sp	VF-11/40
Hrt310ss	VF-11/40
Hrt450	VF-11/40
Hrt630	VF-11/40
Hrta5	VF-11/40
Hrta6	VF-11/40
Lt260	VF-11/40
Lt350	VF-11/40
T5c	VF-11/40
T5c2	VF-11/40
T5c3	VF-11/40
T5c4	VF-11/40
Th240	VF-11/40
Th450	VF-11/40
Tr160	VF-11/40
Tr160 2	VF-11/40
Tr200y	VF-11/40
Tr210	VF-11/40
Tr310	VF-11/40
Tr500ss	VF-11/40
Trt100	VF-11/40
Trt160	VF-11/40
Trt210	VF-11/40
Trt310	VF-11/40
Trt70	VF-11/40

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

Combines 120 inches of X-travel with 40 inches of Y in a single 40-taper platform for maximum work envelope
15,150 kg (33,400 lb) machine weight is among the heaviest in the VF lineup, providing excellent cutting rigidity
120 x 28-inch table with 4,000 lb load capacity handles heavy, large-format fixtures and workpieces
SMTC standard with 30+1 tools and optional 50+1 capacity for complex, tool-intensive jobs
Upgraded standard features package includes chip auger, programmable coolant, and touchscreen jog handle
Same spindle and control platform as the entire VF/40 lineup simplifies training and spare parts

Limitations

Starting at $320,000, it costs over $130K more than the VF-10/40 for 8 additional inches of Y-travel
X-axis rapids at 9.1 m/min (360 ipm) add cycle time on parts requiring frequent long traverses
8,100 RPM max spindle speed limits high-speed aluminum work
33,400 lb shipping weight requires heavy rigging equipment and adequate floor capacity
5 T-slots despite the 40-inch Y-travel; wider table would benefit from more slots

Best For

Aerospace manufacturers machining large structural components that need both long reach and wide Y-clearance Mold and die shops working on oversized mold bases that exceed 32 inches in Y-direction Energy and power generation manufacturers machining large housings, manifolds, and structural frames Job shops serving defense and heavy industry that need a single machine for large-format 3-axis work Shops that have outgrown the VF-9/40's 84-inch X-travel and need the full 120-inch span with wide Y

Frequently Asked Questions

01 Why does the VF-11/40 cost so much more than the VF-10/40?

The VF-11/40 adds 8 inches of Y-travel (40 vs 32 in) and weighs 3,300 lb more than the VF-10/40. The wider Y-axis requires larger castings, beefier guideways, and more material throughout the machine. The price difference of roughly $130,000 reflects the substantially heavier construction.

02 Is the VF-11/40 a good alternative to a horizontal boring mill?

For flat or prismatic parts that can be fixtured on a horizontal table, yes. The VF-11/40 costs significantly less than most HBMs and offers comparable X and Y travel. However, HBMs are better for reaching around all sides of a workpiece and typically offer more Z-axis rigidity for deep boring work.

03 Can the VF-11/40 be automated?

Haas offers a provision for automatic pallet changers as a factory option on large VF/40 models. The 30+1 SMTC (or optional 50+1) supports extended unattended runs. Third-party automation integrators also support this platform. The 95-gallon coolant tank helps sustain long run times.

04 What floor space does the VF-11/40 need?

The machine ships on a 288 x 120-inch pallet (24 x 10 feet). With clearance for operator access, chip management, and service, plan for roughly 30 x 16 feet of dedicated floor space. The concrete floor should be at least 8 inches thick to support the 33,400 lb machine weight.
