Akira Seiki SL25MC
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
axes configuration
swing over bed
How much does the Akira Seiki SL25MC cost?
Price estimate
We do not have a price for the Akira Seiki SL25MC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Akira Seiki SL25MC is the smallest lathe in the SL Mill-Turn group. Its application row reads X+Z+C: a two-axis turning center with a C axis on the spindle and driven tools in the turret, so cross holes, flats and keyways can be machined without a second setup.
The driven tools run to 5,000 rpm with 3.7 kW (5.5 HP) at the turret. That is the fastest power-tool speed among the X+Z+C models; the SL30MC and the larger machines are listed at 4,000 rpm. The turret is a 12-station unit with VDI30 tooling and ER25 collets for the live holders, and it indexes in 0.52 s.
Turning capacity is a 530 mm (20.9 in) swing, a maximum cutting diameter of 280 mm (11 in) and a cutting length of 380 mm (15 in). The spindle is the SL25 unit: A2-6 nose, 5,000 rpm, 17 HP (12.7 kW) and 202 Nm (149 lb-ft) at peak, with a 52 mm (2 in) draw tube bore. X travel is 195 + 5 mm (7.6 + 0.2 in) and Z travel 435 mm (17.1 in).
The tailstock is an option here, with 410 mm (16.1 in) of travel and a 100 mm (3.9 in) quill. The machine weighs 4,050 kg (8,929 lb), measures 2,450 x 1,500 mm (97 x 59 in) and needs 30 kVA. The chuck row on the maker's page carries a typing error and is not shown; the two-axis SL25 lists an 8" chuck.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 (Fanuc G code compatible) |
| Axes Configuration | X+Z+C |
| Swing Over Bed | 530 mm (20.9 in) |
| Swing Over Cross Slide | 350 mm (13.8 in) |
| Max Turning Diameter | 280 mm (11 in) |
| Max Turning Length | 380 mm (15 in) |
| Draw Tube Bore | 52 mm (2 in) |
| Max Spindle Speed | 5,000 rpm |
| Spindle Motor Power | 17 HP (12.7 kW) |
| Spindle Torque | 202 Nm (149 lb-ft) |
| Spindle Nose | A2-6 |
| X Axis Travel | 195 + 5 mm (7.6 + 0.2 in) |
| Z Axis Travel | 435 mm (17.1 in) |
| Rapid Traverse Xz | 36 m/min (1,417 ipm) |
| Cutting Feed Rate | 10 m/min (394 ipm) |
| Turret Stations | 12 |
| OD Tool Size | VDI30 |
| Boring Bar Shank | ER25 |
| Live Tool Power | 3.7 kW (5.5 HP) |
| Live Tool Speed | 5,000 rpm |
| Turret Index Time | 0.52 s |
| Quill Travel | 100 mm (3.9 in) (OPT) |
| Tailstock Travel | 410 mm (16.1 in) (OPT) |
| Coolant Tank Capacity | 160 L (42 gal) |
| Chip Disposal | Drawer (STD); Conveyor (OPT) |
| Power Requirement | 30 kVA |
| Machine Dimensions | 2,450 x 1,500 mm (97 x 59 in) |
| Machine Weight | 4,050 kg (8,929 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- C axis and driven tools at 5,000 rpm with 3.7 kW (5.5 HP)
- 12-station VDI30 turret with a 0.52 s index
- 202 Nm (149 lb-ft) of peak spindle torque
- Compact at 2,450 x 1,500 mm (97 x 59 in) and 4,050 kg (8,929 lb)
Limitations
- No Y axis: milling is limited to X+Z+C
- Maximum cutting diameter of 280 mm (11 in), below the 350 mm (13.8 in) of the two-axis SL25
- The tailstock is optional on this model
- Needs 30 kVA, more than the 25 kVA of the SL25
Best For
Frequently Asked Questions
01
It marks the mill-turn version. The application row lists X+Z+C, and the turret has power tooling rated 3.7 kW (5.5 HP) at up to 5,000 rpm. There is no Y axis.
02
Maximum cutting diameter is 280 mm (11 in) and maximum cutting length 380 mm (15 in), with a 530 mm (20.9 in) swing over the bed. Z travel is 435 mm (17.1 in).
03
The table lists VDI30 under OD tool size and ER25 under boring bar shank, on a 12-station turret. Tool change time with a neighbouring tool is 0.52 s.
04
The SL30MC is the next size: a 65 mm (2.6 in) bore, 305 Nm (225 lb-ft) of peak torque, a 330 mm (13 in) cutting diameter and VDI40 tooling, with driven tools at 4,000 rpm.
More from Akira Seiki
Other CNC Lathes / Turning Centers
Nakamura-Tome SC-200IIL

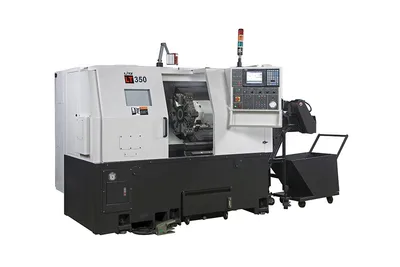

Litz LT-350
