Akira Seiki RMV250RT

Q: How much does the Akira Seiki RMV250RT cost?

The price estimate for the Akira Seiki RMV250RT is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/akira-seiki-rmv250rt#price; the request is passed to Akira Seiki or an authorised dealer.

Specs verified 2026-10-04 · akiraseiki.com Updated 2026-10-04

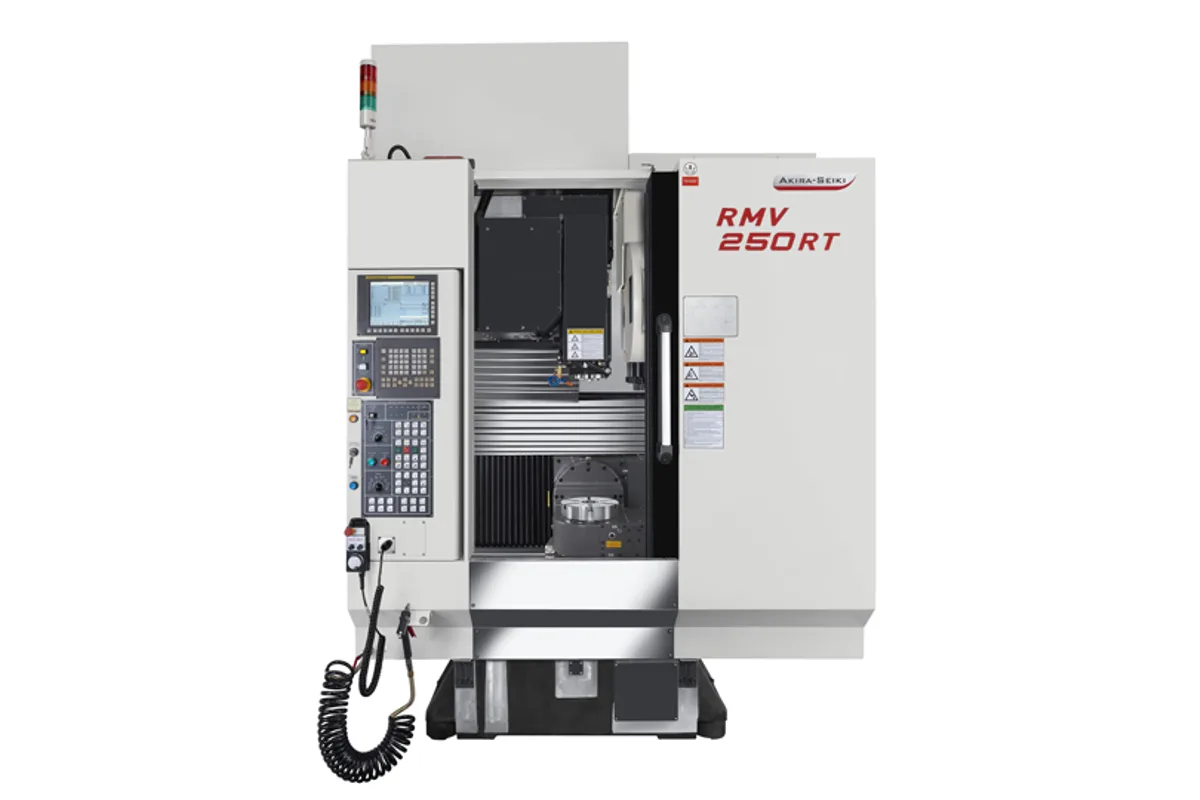

Image: akiraseiki.com, Akira Seiki

Key Specifications

Max Spindle

15,000 rpm (OPT)

Spindle Taper

BT40 / HSK63 (OPT)

Tool Capacity

Servo 24T+1; Servo 40T+1 (OPT)

Table Size

∅250 mm (∅9.8 in)

Spindle Power

12 HP (8.9 kW); acceleration: 15 HP (11.2 kW)

Accuracy

0.012 mm (0.00047 in)

How much does the Akira Seiki RMV250RT cost?

Price estimate

Uncertain

We do not have a price for the Akira Seiki RMV250RT that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A ∅250 mm (∅9.8 in) tilting rotary table and a BT40 spindle make the Akira Seiki RMV250RT the larger of the maker's two multi-face production machines. The table rotates 360° on C, swings +30 / -120 on B and carries 60 kg (132.28 lb).

Travels are 500 mm (19.69 in) in X, 250 mm (9.84 in) in Y and 400 mm (15.75 in) in Z, and the spindle nose stands 125~525 mm (4.92~20.67 in) from the table surface. Against the RMV160RT, every axis is longer and the table takes three times the load.

The move to BT40 widens the tool range to 75 mm (2.95 in) in diameter, 200 mm (7.87 in) in length and 4.5 kg (9.92 lb). HSK63 is optional. A servo 24T+1 magazine is standard and 40T+1 can be ordered. Expect a slower change than on the small machine: 1.9 s tool to tool, 3.4 s chip to chip.

Spindle power is 12 HP (8.9 kW), or 15 HP (11.2 kW) in acceleration, and the speed row on this model's page reads 15,000 rpm as an option. Rapid feed is 48 / 60 / 72 m/min (1,889 / 2,362 / 2,834 ipm). Listed accuracy is 0.012 mm (0.00047 in) positioning and ±0.005 mm (±0.0002 in) repeatability. The machine weighs 5,000 kg (11,023 lb), measures 1,900 x 2,677 mm (74.8 x 105.39 in) and requires 25 kVA.

Full Specifications

Parameter	Value
CNC Control	AKIRA Mi:845 / (FANUC G code compatible)
X Axis Travel	500 mm (19.69 in)
Y Axis Travel	250 mm (9.84 in)
Z Axis Travel	400 mm (15.75 in)
C Axis Range	360°
B Axis Range	+30 / -120
Distance Spindle Nose to Table	125~525 mm (4.92~20.67 in)
Table Size	∅250 mm (∅9.8 in)
Max Table Load	60 kg (132.28 lb)
Spindle Motor Power	12 HP (8.9 kW); acceleration: 15 HP (11.2 kW)
Max Spindle Speed	15,000 rpm (OPT)
Spindle Taper	BT40 / HSK63 (OPT)
Spindle Cooling	Air Cooling
Rapid Traverse Xyz	48 / 60 / 72 m/min (1,889 / 2,362 / 2,834 ipm)
Cutting Feed Rate	10 / 10 / 10 m/min (394 / 394 / 394 ipm)
Positioning Accuracy	0.012 mm (0.00047 in)
Repeatability	±0.005 mm (±0.0002 in)
Tool Capacity	Servo 24T+1; Servo 40T+1 (OPT)
Max Tool Diameter (full magazine)	75 mm (2.95 in)
Max Tool Length	200 mm (7.87 in)
Max Tool Weight	4.5 kg (9.92 lb)
Tool Change Time	T-T: 1.9 s; C-C: 3.4 s
Coolant Tank Capacity	150 L (39.63 gal)
Power Requirement	25 kVA
Air Pressure Requirement	0.5 MPa (72.5 psi)
Machine Dimensions	1,900 x 2,677 mm (74.8 x 105.39 in)
Machine Weight	5,000 kg (11,023 lb)

Specifications sourced from akiraseiki.com — verified 2026-10-04

Strengths & Limitations

Strengths

∅250 mm (∅9.8 in) tilting rotary table rated for 60 kg (132.28 lb)
BT40 spindle, HSK63 optional
Servo 24T+1 magazine with a 40T+1 option
Z rapid of 72 m/min within 48 / 60 / 72 m/min (1,889 / 2,362 / 2,834 ipm)

Limitations

12 HP (8.9 kW) spindle power outside acceleration
Tool change of 1.9 s, against 0.7 s on the RMV160RT
Y travel is 250 mm (9.84 in)
Requires 25 kVA, against 10 kVA for the RMV160RT

Best For

Multi-face aluminium parts up to 60 kg (132.28 lb) Small housings and manifolds finished in one clamping Non-ferrous production needing 40-taper tooling Composite parts machined on several faces

Frequently Asked Questions

01 What is the table size and load of the RMV250RT?

The table is ∅250 mm (∅9.8 in) and the maximum loading is 60 kg (132.28 lb). It rotates 360° on the C axis and swings +30 / -120 on the B axis.

02 What are the linear travels of the RMV250RT?

500 mm (19.69 in) in X, 250 mm (9.84 in) in Y and 400 mm (15.75 in) in Z. Rapid feed is 48 / 60 / 72 m/min (1,889 / 2,362 / 2,834 ipm).

03 Which spindle taper does the RMV250RT have?

BT40 as standard and HSK63 as an option, with air cooling. Spindle power is listed as 12 HP (8.9 kW), with 15 HP (11.2 kW) for acceleration.

04 How much room does the RMV250RT take?

Dimensions are 1,900 x 2,677 mm (74.8 x 105.39 in), width by depth, and weight is 5,000 kg (11,023 lb). Power requirement is 25 kVA and air 0.5 MPa (72.5 psi).
