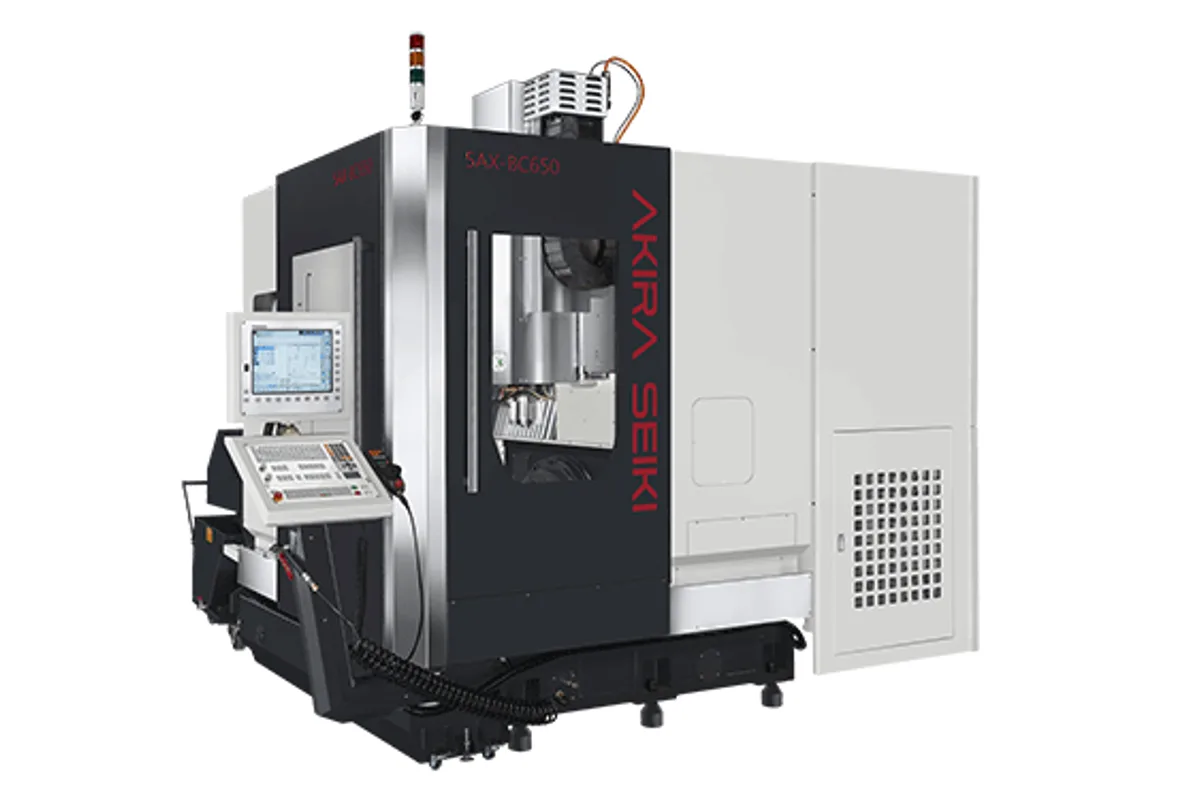

Akira Seiki 5AX-BC650
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Akira Seiki 5AX-BC650 cost?
Price estimate
We do not have a price for the Akira Seiki 5AX-BC650 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
On the 5AX-BC650, Akira Seiki tilts the table about a B axis and rotates it on C. B swings -50° ~ +110° and C turns a full 360°, with indexing of 0.001°. The table is ∅650 mm (∅25.6 in) and takes 300 kg (661 lb), a larger and stronger table than the one on the 5AX-AC650.
The linear axes are shorter in exchange: 620 mm (24.4 in) in X, 520 mm (20.4 in) in Y and 460 mm (18.1 in) in Z, on roller-type linear guides. All three rapid at 36 / 36 / 36 m/min (1,417 / 1,417 / 1,417 ipm), and the cutting feed rate is given as 20 m/min (787 ipm). Tilting and rotary axis speeds are 25 rpm / 25 rpm.
Spindle drive is where this model differs most from its sibling. It is in-line direct, with a built-in spindle listed as an option, where the 5AX-AC650 uses a belt. The taper is BBT40, the dual-contact form, which helps tool stiffness at the long reaches five-axis work often needs. Peak power is 22.8 HP (17.0 kW) at 12,000 rpm.
The changer is an arm type with 32T and a 2.2 s tool change. Machine dimensions are 3,145 x 3,890 x 2,930 mm (123.8 x 153.1 x 115.4 in), and weight is 10,360 kg (22,840 lb). The maker's page marks coolant tank capacity as to be announced and gives no power requirement.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 620 mm (24.4 in) |
| Y Axis Travel | 520 mm (20.4 in) |
| Z Axis Travel | 460 mm (18.1 in) |
| Guideways | Linear guide (Roller type) |
| B Axis Range | -50° ~ +110° |
| C Axis Range | 360° |
| Distance Spindle Nose to Table | 150-610 mm (5.9-24 in) |
| Table Size | ∅650 mm (∅25.6 in) |
| Max Table Load | 300 kg (661 lb) |
| Table Indexing | 0.001° |
| Spindle Motor Power | 22.8 HP (17.0 kW) |
| Max Spindle Speed | 12,000 rpm |
| Spindle Drive | In-line Direct (OPT: Built-in) |
| Spindle Taper | BBT40 |
| Rapid Traverse Xyz | 36 / 36 / 36 m/min (1,417 / 1,417 / 1,417 ipm) |
| Tilting Rotary Axis Speed | 25 rpm / 25 rpm |
| Cutting Feed Rate | 20 m/min (787 ipm) |
| Tool Capacity | 32T |
| Max Tool Diameter (full magazine) | ∅75 mm (3 in) |
| Max Tool Diameter Without Adjacent Tools | ∅150 mm (5.9 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Tool Change Time | 2.2 s |
| Machine Dimensions | 3,145 x 3,890 x 2,930 mm (123.8 x 153.1 x 115.4 in) |
| Machine Weight | 10,360 kg (22,840 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- ∅650 mm (∅25.6 in) table rated to 300 kg (661 lb)
- B axis swing of -50° ~ +110° with 360° C rotation
- In-line direct spindle with a BBT40 dual-contact taper
- Rapids of 36 / 36 / 36 m/min (1,417 / 1,417 / 1,417 ipm) on roller-type linear guides
- 32T arm-type tool changer
Limitations
- Z travel is 460 mm (18.1 in), less than the 560 mm (22.05 in) of the 5AX-AC650
- 22.8 HP (17.0 kW) peak, the lower of the two five-axis models
- No power requirement or coolant capacity is published for this model
- Only 12,000 rpm is listed
Best For
Frequently Asked Questions
01
X 620 mm (24.4 in), Y 520 mm (20.4 in), Z 460 mm (18.1 in). The B axis swings -50° ~ +110° and the C axis rotates 360°, both indexing to 0.001°.
02
An in-line direct spindle with a BBT40 taper, 12,000 rpm and 22.8 HP (17.0 kW) peak. A built-in spindle is listed as an option, without separate figures.
03
The 5AX-BC650 column of the maker's table lists 10,360 kg (22,840 lb), and dimensions of 3,145 x 3,890 x 2,930 mm (123.8 x 153.1 x 115.4 in) as width, depth and height.
04
32T. A tool may be ∅75 mm (3 in) with neighbours or ∅150 mm (5.9 in) without, and up to 7 kg (15 lb). Tool change time is 2.2 s, tool to tool.
