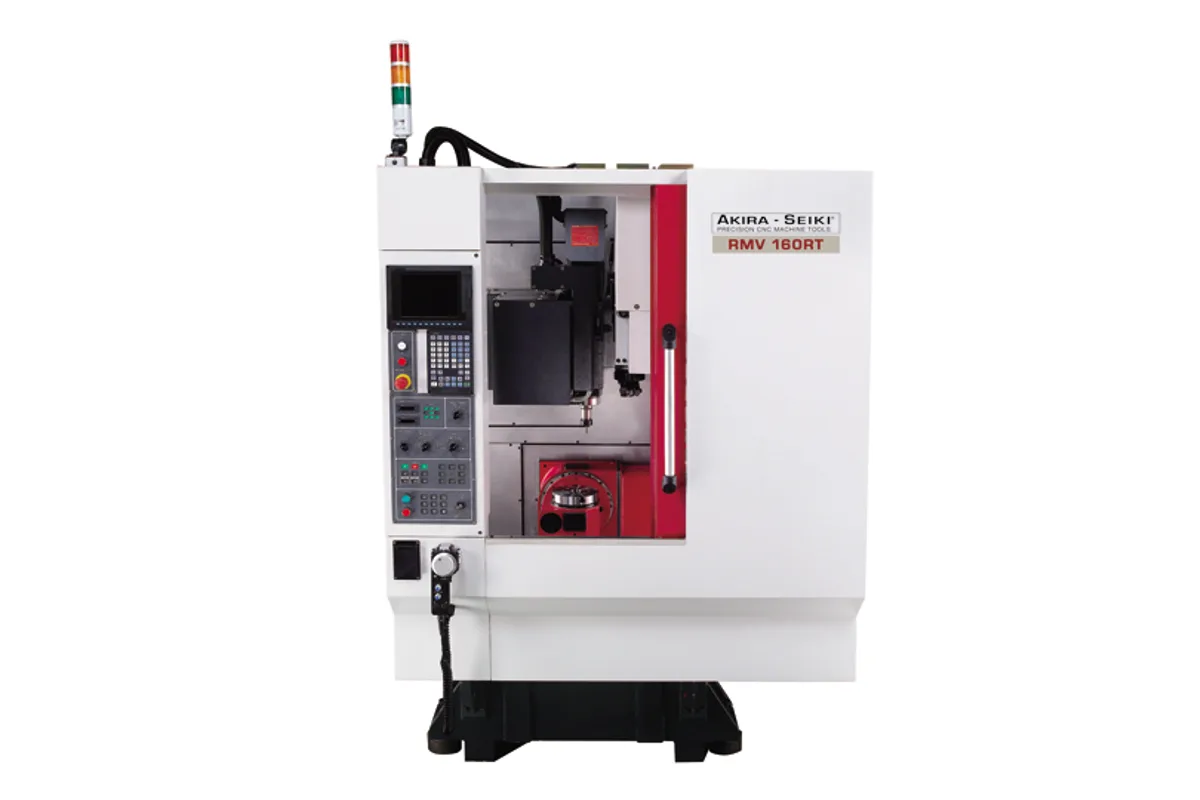

Akira Seiki RMV160RT
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Akira Seiki RMV160RT cost?
Price estimate
We do not have a price for the Akira Seiki RMV160RT that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Akira Seiki RMV160RT is a very small multi-face machining center. A ∅160 mm (∅6.3 in) rotary table rotates 360° on C and swings on B through +30 / -120, so a part can be reached from every side but its base in one clamping. Maximum loading is 20 kg (44.09 lb).
Linear travels are 380 mm (14.96 in) in X, 160 mm (6.3 in) in Y and 380 mm (14.96 in) in Z. The short Y is deliberate. With a tilting table doing the work of presenting faces to the spindle, the machine needs reach in X and Z to clear the trunnion and little else.
It belongs to the maker's production machining center family, described as being for light chips, non-ferrous metal and composite material. The spindle and changer are those of a fast 30-taper production machine: BT30 with HSK40A as an option, a servo 24T+1 magazine, and a tool change of 0.7 s tool to tool and 1.9 s chip to chip. Rapids are 60 / 60 / 72 m/min (2,362 / 2,362 / 2,834 ipm).
Spindle power is listed as 6 HP (4.5 kW), with 20 HP (14.9 kW) for acceleration, and the speed row shows 24,000 rpm as an option. The machine weighs 4,100 kg (9,039 lb), measures 1,600 x 2,322 mm (62.99 x 91.42 in) and needs 10 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 / (FANUC G code compatible) |
| X Axis Travel | 380 mm (14.96 in) |
| Y Axis Travel | 160 mm (6.3 in) |
| Z Axis Travel | 380 mm (14.96 in) |
| C Axis Range | 360° |
| B Axis Range | +30 / -120 |
| Distance Spindle Nose to Table | 100~480 mm (3.94~18.9 in) |
| Table Size | ∅160 mm (∅6.3 in) |
| Max Table Load | 20 kg (44.09 lb) |
| Spindle Motor Power | 6 HP (4.5 kW); acceleration: 20 HP (14.9 kW) |
| Max Spindle Speed | 24,000 rpm (OPT) |
| Spindle Taper | BT30 / HSK40A (OPT) |
| Spindle Cooling | Air Cooling |
| Rapid Traverse Xyz | 60 / 60 / 72 m/min (2,362 / 2,362 / 2,834 ipm) |
| Cutting Feed Rate | 10 / 10 / 10 m/min (394 / 394 / 394 ipm) |
| Positioning Accuracy | 0.012 mm (0.00047 in) |
| Repeatability | ±0.005 mm (±0.0002 in) |
| Tool Capacity | Servo 24T+1 |
| Max Tool Diameter (full magazine) | 50 mm (1.97 in) |
| Max Tool Length | 175 mm (6.89 in) |
| Max Tool Weight | 2.5 kg (5.51 lb) |
| Tool Change Time | T-T: 0.7 s; C-C: 1.9 s |
| Coolant Tank Capacity | 150 L (39.63 gal) |
| Power Requirement | 10 kVA |
| Air Pressure Requirement | 0.5 MPa (72.5 psi) |
| Machine Dimensions | 1,600 x 2,322 mm (62.99 x 91.42 in) |
| Machine Weight | 4,100 kg (9,039 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Tilting rotary table: 360° on C and +30 / -120 on B
- 0.7 s tool-to-tool change from a servo 24T+1 magazine
- Rapids of 60 / 60 / 72 m/min (2,362 / 2,362 / 2,834 ipm)
- 1,600 x 2,322 mm (62.99 x 91.42 in) footprint on a 10 kVA supply
Limitations
- Table load is 20 kg (44.09 lb) on a ∅160 mm (∅6.3 in) table
- Y travel of only 160 mm (6.3 in)
- 6 HP (4.5 kW) spindle power outside acceleration
- No rotary-axis accuracy or indexing figure is published
Best For
Frequently Asked Questions
01
The rotary table is ∅160 mm (∅6.3 in) and its maximum loading is 20 kg (44.09 lb). Travels are 380 mm (14.96 in) in X, 160 mm (6.3 in) in Y and 380 mm (14.96 in) in Z.
02
A C axis with 360° rotation and a B axis listed with a swing of +30 / -120. The table does not state indexing increments or whether the axes interpolate simultaneously.
03
The RMV250RT has a ∅250 mm (∅9.8 in) table that takes 60 kg (132.28 lb), a BT40 spindle and longer travels, including 250 mm (9.84 in) of Y. The RMV250RT weighs 5,000 kg (11,023 lb) and needs 25 kVA.
04
BT30 tools, or HSK40A as an option, up to 50 mm (1.97 in) in diameter, 175 mm (6.89 in) long and 2.5 kg (5.51 lb). The servo magazine holds 24T+1.
