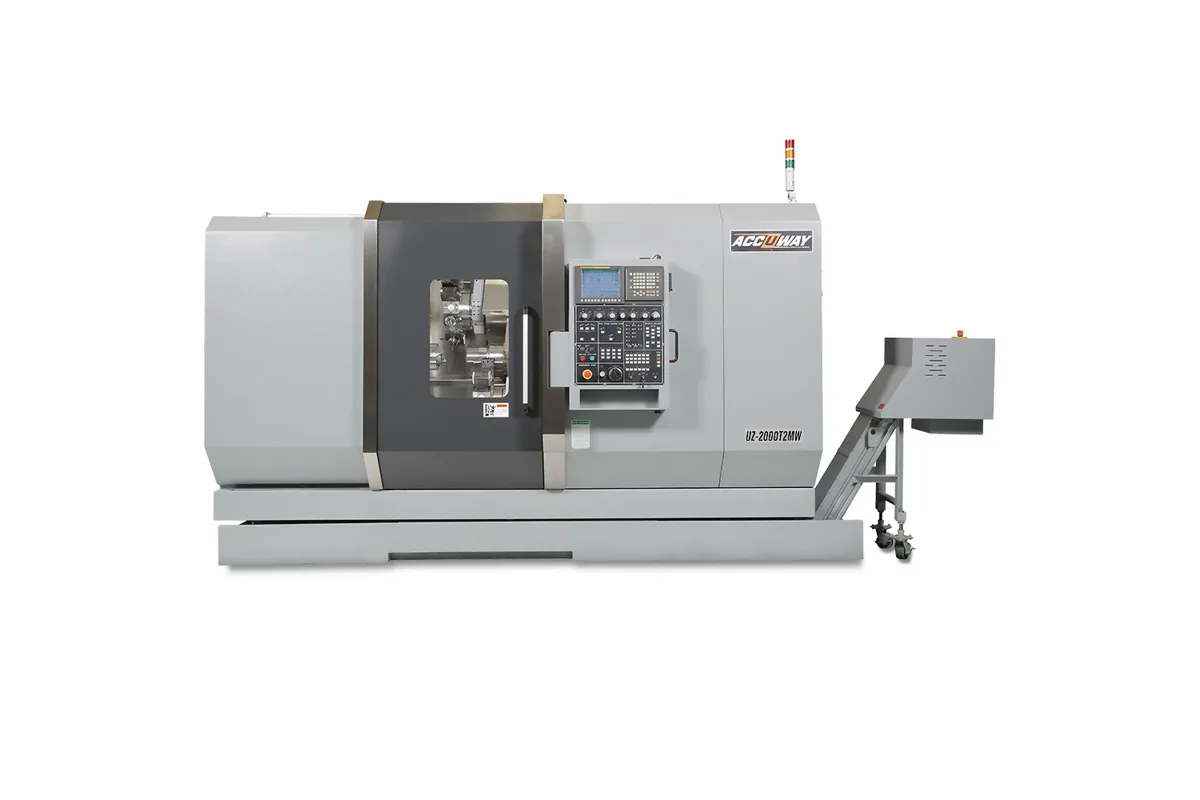

Accuway UZ-2000T2W
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UZ-2000T2W cost?
Price estimate
We do not have a price for the Accuway UZ-2000T2W that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Pure turning with two tools in the cut: the Accuway UZ-2000T2W is the two-turret shaft lathe of the UZ-2000 series without rotary tools. Its table is the UZ-2000T2MW's with the driven-tool rows empty and the rapids raised.
Those rapids are 24 m/min (945 in/min) in X1/X2 and 40 m/min (1,575 in/min) in Z1/Z2. For a part that only needs turning, grooving and threading, this is the faster of the two machines between cuts, and there is no live-tool drive to pay for or maintain.
The work zone holds a shaft up to 790 mm (31.1 in) long and 320 mm (12.6 in) in diameter between the chuck and a tailstock with 770 mm (30.3 in) of body travel. Each turret has 16 stations, 16+16 in total, on BMT-40 tooling with 20 mm (0.8 in) square and 32 mm (1.3 in) round shanks. Typical cycles pair the turrets: roughing from both sides at once, or one turret roughing ahead while the other finishes behind it.
Spindle options are the series' three. A built-in A2-5 spindle reaches 5,000 rpm with a 52 mm (2.0 in) bar capacity. Belt-driven A2-8 and A2-11 spindles reach 3,500 rpm and 2,500 rpm and pass 78 mm (3.1 in) and 105 mm (4.1 in). The motor is 11/15 kW (14.8/20.1 hp), with 15/18.5 kW (20.1/24.8 hp) in brackets. Guideways are Linear + Box. The machine is 5.1 x 2.4 x 2.4 m (200.8 x 94.5 x 94.5 in) and 10,500 kg (23,148 lb).
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 660 mm (26.0 in) |
| Swing Over Saddle | 620 mm (24.4 in) |
| Max Turning Diameter | 320 mm (12.6 in) |
| Max Turning Length | 790 mm (31.1 in) |
| Guideway Type | Linear + Box |
| Spindle Nose | A2-5 / A2-8 / A2-11 |
| Chuck Size | 6 / 10 / 15 in |
| Bar Capacity | 52 / 78 / 105 mm (2.0 / 3.1 / 4.1 in) |
| Max Spindle Speed | 5,000 rpm (Built-in) / 3,500 rpm (Belt) / 2,500 rpm (Belt) |
| Spindle Motor Power | 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp), Cont. / 30min |
| Tailstock Body Travel | 770 mm (30.3 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 85 mm (3.3 in) |
| Tailstock Quill Taper | MT#5 |
| X1 X2 Axis Travel | 210 mm (8.3 in) |
| Z1 Z2 Axis Travel | 840 mm (33.1 in) |
| Rapid Traverse X1 X2 | 24 m/min (945 in/min) |
| Rapid Traverse Z1 Z2 | 40 m/min (1,575 in/min) |
| Turret Tooling | BMT-40 |
| Turret Drive | Servo mechanical |
| Turret Stations | 16+16 |
| Square Tool Shank | 20 mm (0.8 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Machine Dimensions | L x W x H: 5.1 x 2.4 x 2.4 m (200.8 x 94.5 x 94.5 in) |
| Machine Weight | 10,500 kg (23,148 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Two turrets, 16+16 stations, cutting one shaft together
- Z1/Z2 rapid traverse of 40 m/min (1,575 in/min)
- 790 mm (31.1 in) turning length with a 770 mm (30.3 in) tailstock body travel
- Three spindle sizes up to A2-11 and 105 mm (4.1 in)
- Linear + Box guideways at 10,500 kg (23,148 lb)
Limitations
- No rotary tool rows: keyways and cross holes need another machine
- One spindle, so the second end needs re-chucking
- Tailstock quill diameter of 85 mm (3.3 in)
- No accessory lists on the maker's page
Best For
Frequently Asked Questions
01
No rotary tool speed or power is listed for it. The UZ-2000T2MW on the same page is the version with rotary tools at 6,000 rpm and 3.7/5.5 kW (5.0/7.4 hp).
02
X1/X2 rapid traverse is 24 m/min (945 in/min) and Z1/Z2 rapid traverse 40 m/min (1,575 in/min). Spindle speed is 5,000 rpm (Built-in), 3,500 rpm (Belt) or 2,500 rpm (Belt) depending on the spindle column.
03
X1/X2 travel is 210 mm (8.3 in) and Z1/Z2 travel 840 mm (33.1 in). The tailstock body travels 770 mm (30.3 in) and its quill 120 mm (4.7 in). Swing over bed is 660 mm (26.0 in).
04
Two turrets with 16+16 stations, BMT-40 tooling and servo mechanical drive. Tool shanks are 20 mm (0.8 in) square and 32 mm (1.3 in) round.
