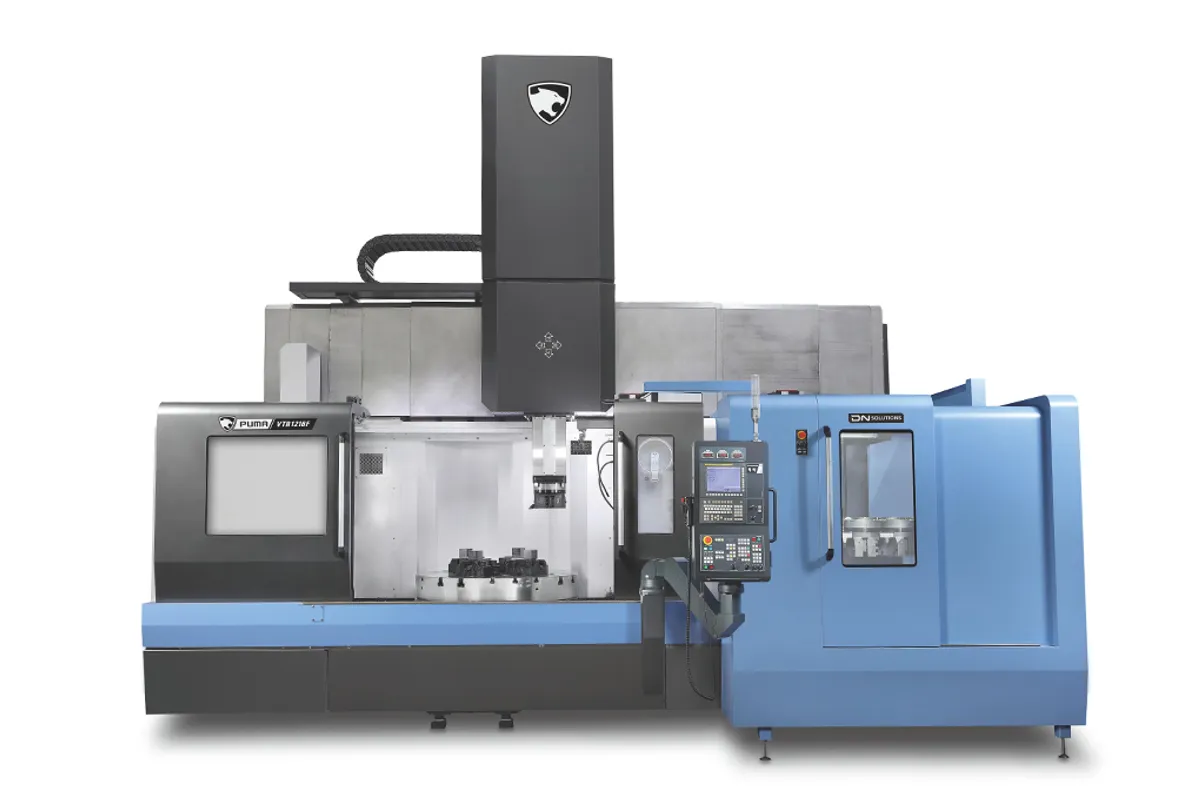

DN Solutions PUMA VTR 1216 F

$420,000 - $570,000 Updated 2026-03-19

Key Specifications

Max Spindle

400 RPM

Spindle Power

45 kW (60 hp)

Max Turn Length

950 mm

max turning diameter

Max. Turning Length

x axis travel

1,700 mm (67 in)

z axis travel

900 mm (35 in)

Overview

The DN Solutions PUMA VTR 1216 F is the fixed-head variant in the VTR 1216 family, trading some Z-axis travel for a more compact vertical profile. With 950 mm (37 in) of turning length versus the standard 1216's 1,200 mm, it's optimized for shorter, wider workpieces — large-diameter flanges, bearing races, and disc-type components where you need the full 1,600 mm (63 in) swing but don't need deep boring capability.

The spindle delivers the same 45 kW (60 hp) and 20,557 Nm (15,162 ft-lb) of torque at 400 RPM as the full-travel 1216. You're not giving up any cutting power — just vertical reach. For parts that fit within the 950 mm Z-envelope, there's no performance difference between this and the standard model. X-axis travel remains a generous 1,700 mm (67 in).

Z-axis travel is 900 mm (35 in), and rapids hold at 12 m/min on X and 10 m/min on Z. The fixed-head design contributes to slightly lower machine height at 5,065 mm versus the standard 1216's 5,610 mm — that's over half a meter less ceiling clearance you need, which matters in older facilities with height restrictions.

The machine weighs 27,500 kg (60,627 lb) — two tons lighter than the standard 1216, though still a substantial piece of iron on the same 5,590 mm by 4,066 mm footprint. The FANUC control runs standard turning cycles. For shops primarily machining flat, wide components like flanges, rings, and disc-type parts in the 63-inch diameter class, the VTR 1216 F delivers the right capability at a lower price point and with less demanding ceiling requirements than the full-travel variant.

Full Specifications

Parameter	Value
Max Turning Diameter	Max. Turning Length
Max Turning Length	950 mm
X Axis Travel	1,700 mm (67 in)
Z Axis Travel	900 mm (35 in)
Rapid Traverse X	12 m/min (472 in/min)
Rapid Traverse Z	10 m/min (394 in/min)
Max Spindle Speed	400 RPM
Spindle Motor Power	45 kW (60 hp)
Spindle Torque	20,557 Nm (15,162 ft-lb)
Machine Length	5,590 mm (220 in)
Machine Width	4,066 mm (160 in)
Machine Height	5,065 mm (199 in)
Machine Weight	27,500 kg (60,627 lb)
CNC Control	FANUC
Metric	IMPERIAL
Capacity	Max. Turning DiameterMax. Turning Length
Travels	X-Axis Rapid TraverseZ-Axis Rapid TraverseX-Axis Travel DistanceZ-Axis Travel Distance
Main Spindle	Max. Spindle SpeedMax. Spindle PowerMax. Spindle Torque
Turret	Rotary Tool r/min
Dimensions	LengthHeightWidthWeight
Favorites	PUMA VTR2025M
1250 Mm	695 mm
49 Inch	27 inch
1600 Mm	1250 mm
63 Inch	49 inch
2000 Mm	1800 mm
79 Inch	71 inch
2500 Mm	2000 mm
98 Inch	79 inch

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

Same 20,557 Nm torque and 60 HP spindle as the full-travel 1216 at a lower price point
5,065 mm machine height is over half a meter less than the standard 1216, fitting in height-restricted facilities
1,600 mm turning diameter handles the same large parts as the full-travel variant
2,000 kg lighter than the standard 1216, slightly easing foundation requirements
Optimized for disc-type and flange-type parts that don't need deep boring capability
FANUC control with automatic tool changing for unmanned multi-tool turning programs

Limitations

950 mm max turning length limits deep boring operations compared to the standard 1216's 1,200 mm
No live tooling or C-axis on the F variant — turning operations only
400 RPM max speed limits surface finish on smaller-diameter features
27,500 kg still requires engineered foundation and crane infrastructure
Same floor footprint as the full-travel 1216 despite reduced Z capability

Best For

Shops primarily machining large-diameter flanges, ring gears, and disc-type components Facilities with height restrictions that can't accommodate the taller standard VTR 1216 Power generation shops turning turbine discs and generator ring components under 37 inches tall Oil and gas manufacturers producing large pipe flanges and valve body faces Budget-conscious shops that need 63-inch turning diameter without full Z-axis travel Bearing manufacturers machining large-diameter races and housings

Frequently Asked Questions

01 What does the F designation mean?

F indicates a fixed-head configuration with reduced Z-axis travel — 900 mm vs 1,200 mm on the standard VTR 1216. The machine height drops from 5,610 mm to 5,065 mm as a result. Spindle power, torque, and turning diameter are identical to the standard model.

02 Should I get the VTR 1216 or 1216 F?

If your parts are under 950 mm (37 in) tall, the 1216 F saves money and needs less ceiling clearance. If you regularly bore deeper than 900 mm or turn taller parts, you need the standard 1216 with its 1,200 mm Z-travel. Check your part mix before deciding.

03 How much does the VTR 1216 F cost?

New machines typically run $420,000-$570,000, which is slightly less than the full-travel VTR 1216. The savings come from the shorter ram assembly and reduced machine height. Used machines are rare but can be found for $220,000-$380,000 when available.

04 Can the VTR 1216 F be upgraded to add milling?

The F variant doesn't include live tooling or C-axis. If you need milling capability, look at the VTR 1216 FM, which combines the fixed-head design with live tooling, or the VTR 1216 M for full-travel with milling. Retrofitting a C-axis isn't practical.
