Mazak QTE

Est. $60,000 - $170,000 Specs verified 2026-10-02 · mazak.com Updated 2026-10-02

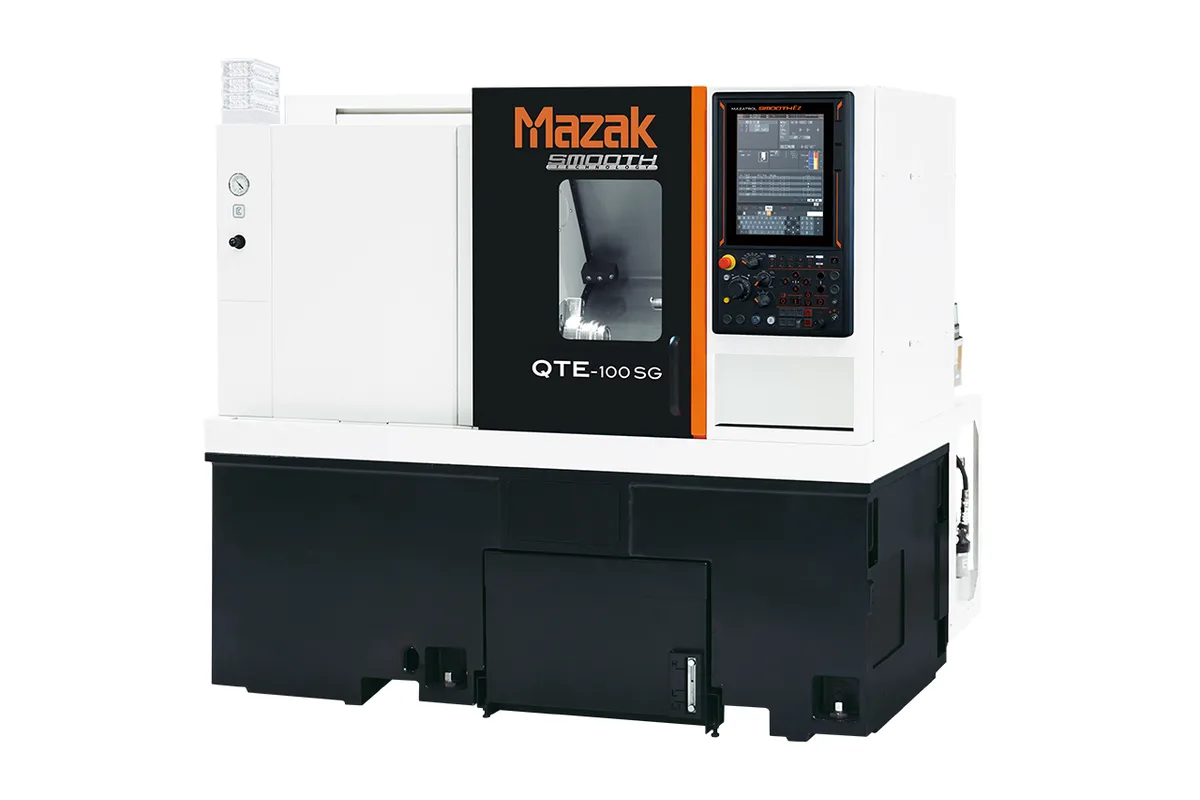

Image: mazak.com, Yamazaki Mazak

Key Specifications

X Travel

8 in (203 mm) to 9 in (229 mm)

Z Travel

13 in (330 mm) to 24 in (610 mm)

Max Spindle

5,000 rpm to 6,000 rpm

Tool Capacity

8 tools to 12 tools

Spindle Power

11 kW (15 HP) continuous

Max Turn Length

12 in (305 mm) to 22 in (559 mm)

How much does the Mazak QTE cost?

Estimated price range

Est.$60,000 - $170,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.

Overview

The Mazak QTE series is a compact turning center line in two sizes, QTE-100 and QTE-200, with 6 in and 8 in chucks, built-in motor spindles and a choice of turning-only, milling, Y-axis and second-spindle models. Eight models are listed, all carrying the SG designation, and all share a main spindle rated 15 kW (20 HP) at 40% ED and 11 kW (15 HP) continuous.

The plain turning model and the milling models are not the same machine with parts added. The QTE-200 SG, the plain turning model, has a Ø23 in (584 mm) swing, turns Ø14 in (356 mm), carries 8 tools and has 8 in (203 mm) of X with 13 in (330 mm) of Z. The QTE-200M has a Ø27 in (686 mm) swing, turns Ø13 in (330 mm), carries 12 tools and has 9 in (229 mm) of X with 24 in (610 mm) of Z. The bed classes in the table, 300U to 500U, and its 8-tool and 12-tool turrets reflect that split, and short chuck work belongs on the short machine.

In the smaller size, the QTE-100M runs a 6 in chuck to 6,000 rpm and turns Ø13 in (330 mm) by 22 in (559 mm) on 24 in (610 mm) of Z. The QTE-100MY and QTE-100MSY add 4 in (102 mm) of Y travel to that envelope. On Mazak's model list MY stands for milling with a Y-axis and MSY for milling, second spindle and Y-axis. Rotary tools across the series run to 4,500 rpm on a motor rated 5.5 kW to 7 kW at 40% ED.

Spindle speed is 5,000 rpm to 6,000 rpm and bar capacity Ø2 in (51 mm) to Ø3 in (76 mm). Mazak says the built-in motor spindle is designed for high torque in the low-speed range. Drum turrets have 8 or 12 positions, index without lifting and take 25 mm × 25 mm tool shanks.

Automation is optional: the Ez LOADER collaborative-robot system and a gantry loader with a choice of loader hands and work conveyors. Mazak notes that the Ez LOADER and the in-office digital setup function are supported only with the MAZATROL SmoothEz control.

Full Specifications

Parameter	Value
Models in Series	8 models: QTE-100 SG, QTE-100M SG, QTE-100MY SG, QTE-100MSY SG, QTE-200 SG, QTE-200M SG, QTE-200MY SG, QTE-200MSY SG
Bed Length Type	300U to 500U
Max Swing	Ø23 in (584 mm) to Ø27 in (686 mm)
Max Turning Diameter	Ø11 in (279 mm) to Ø14 in (356 mm)
Max Turning Length	12 in (305 mm) to 22 in (559 mm)
Max Bar Capacity	Ø2 in (51 mm) to Ø3 in (76 mm)
Chuck Size	6 in to 8 in
Max Spindle Speed	5,000 rpm to 6,000 rpm
Tool Capacity	8 tools to 12 tools
X-Axis Travel	8 in (203 mm) to 9 in (229 mm)
Z-Axis Travel	13 in (330 mm) to 24 in (610 mm)
Milling Spindle Speed	4,500 rpm
Rotary Tool Spindle Spindle Motor 40 Pct Ed	5.5 kW (40% ED) to 7 kW (40% ED)
Spindle Power Intermittent	15 kW (20 HP) (40% ED)
Spindle Motor Power	11 kW (15 HP) continuous

Specifications sourced from mazak.com — verified 2026-10-02

Strengths & Limitations

Strengths

Built-in motor main spindle rated 15 kW (20 HP) at 40% ED and 11 kW (15 HP) continuous on every model
Eight models covering turning, milling, Y-axis and second-spindle specifications in 6 in and 8 in chuck sizes
Y-axis models such as the QTE-100MY carry 4 in (102 mm) of Y travel
Non-lift drum turrets with 8 or 12 positions and 25 mm × 25 mm tool shanks
Rotary tools run to 4,500 rpm with 5.5 kW to 7 kW at 40% ED
Optional Ez LOADER and gantry loader automation, with digital setup on MAZATROL SmoothEz

Limitations

Maximum turning diameter is Ø11 in (279 mm) to Ø14 in (356 mm) and turning length at most 22 in (559 mm)
The QTE-200 SG has 13 in (330 mm) of Z and 8 tools, well short of the 24 in (610 mm) and 12 tools of the QTE-200M
Rotary tool power is 5.5 kW to 7 kW at 40% ED, with no continuous rating in the table
Ez LOADER and the digital setup function are supported only with MAZATROL SmoothEz
X travel is 8 in (203 mm) to 9 in (229 mm), so large-diameter facing is limited

Best For

Small chuck and bar parts on 6 in and 8 in chucks Bar work up to Ø3 in (76 mm) Short chuck work on the QTE-200 SG with its 13 in (330 mm) of Z Turned parts with milled and off-centre features on the MY and MSY models Cells fed by Ez LOADER or a gantry loader where floor space is tight

Frequently Asked Questions

01 Which models make up the QTE series?

Eight: the QTE-100 SG and QTE-200 SG turning models, and M, MY and MSY versions of each. Mazak's list gives MY as milling with a Y-axis and MSY as milling, second spindle and Y-axis. It also tags the M models with milling and a second spindle, so confirm with Mazak what a plain M model includes.

02 How does the QTE-200 SG differ from the QTE-200M?

The QTE-200 SG is a shorter turning-only machine: Ø23 in (584 mm) swing, Ø14 in (356 mm) turning diameter, 8 tools, 8 in (203 mm) of X and 13 in (330 mm) of Z. The QTE-200M has a Ø27 in (686 mm) swing, Ø13 in (330 mm) turning diameter, 12 tools, 9 in (229 mm) of X and 24 in (610 mm) of Z, with rapids of 1,181 ipm (30 m/min) in X and Z. Both have an 8 in chuck and 5,000 rpm.

03 What is the difference between QTE-100 and QTE-200 machines?

Chuck size and spindle speed. The QTE-100M has a 6 in chuck and runs to 6,000 rpm. The QTE-200M has an 8 in chuck and runs to 5,000 rpm. Both turn Ø13 in (330 mm) with a Ø27 in (686 mm) swing, 24 in (610 mm) of Z and 12 tools. Main spindle power is the same across the series at 11 kW (15 HP) continuous.

04 How capable is milling on a QTE?

Rotary tools run to 4,500 rpm on a motor rated 5.5 kW to 7 kW at 40% ED. That covers cross drilling, tapping, keyways and flats on turned parts. The QTE-100MY and QTE-100MSY add 4 in (102 mm) of Y travel for off-centre features. The table gives no continuous rating or torque for the rotary tools.

05 What automation is offered for the QTE?

Mazak lists the Ez LOADER, a collaborative-robot loader set up through dedicated software without robot teaching, and a gantry loader with different loader hands and work conveyors. Both are optional. The Ez LOADER, like the in-office digital setup function, is supported only with MAZATROL SmoothEz.
