Citizen Miyano GN5200
This model was not found in Citizen Machinery's current lineup when we checked on 2026-10-02 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.
Key Specifications
Rapid Traverse
Max Turn Length
max bar capacity
max turning diameter
main spindle speed
main spindle power
How much does the Citizen Miyano GN5200 cost?
Estimated price range
Our best estimate for a cnc lathes / turning center in this class — not a quote from Citizen Machinery. Configuration moves it a long way.
Overview
The Citizen Miyano GN5200 is a two-axis (X, Z) gang-tool lathe for chucked work, listed with a 52 mm (2.05 in) bar capacity, a 90 mm (3.54 in) maximum turning diameter and a 200 mm (7.87 in) maximum turning length. It is not in Citizen's current lineup and Citizen's current pages do not cover it, so the figures below are the listed ones and should be confirmed on any machine offered.
Instead of a turret, tools sit on a gang tool plate with up to 10 positions, depending on configuration. The machine does not use a guide bushing; it is a chucking machine. On a gang layout the next tool is reached by a short cross-slide move rather than a turret index, which keeps tool changes quick on small parts with simple tool lists, but the number of tools and their size are limited by the plate.
The spindle is listed at 6,000 RPM with 5.5 / 7.5 kW (7.4 / 10 HP) and a 57 mm (2.24 in) bore. Rapid traverse is given as 20 m/min on X and 24 m/min on Z. The control is a Mitsubishi M80 with Miyano software, and the electrical rating is 10 kVA.
The listed size is small: 1,600 x 1,400 x 1,650 mm (63 x 55.1 x 65 in) and 1,800 kg (3,968 lbs), so the GN5200 fits where a turret lathe would not. A buyer should check the plate layout and the tool holders that come with the machine, since those decide what it can run.
Full Specifications
| Parameter | Value |
|---|---|
| Max Bar Capacity | 52 mm (2.05 in) |
| Max Turning Diameter | 90 mm (3.54 in) |
| Max Turning Length | 200 mm (7.87 in) |
| Main Spindle Speed | 6,000 RPM |
| Main Spindle Power | 5.5 / 7.5 kW (7.4 / 10 HP) |
| Spindle Bore | 57 mm (2.24 in) |
| Number of Axes | 2-axis (X, Z) |
| Tooling Type | Gang tool plate |
| Gang Tool Positions | Up to 10 (configuration dependent) |
| Rapid Traverse Rate | 20 m/min (X), 24 m/min (Z) |
| Guide Bushing | No (gang-type lathe, chuck operation) |
| Power Consumption | 10 kVA rated |
| Machine Dimensions | 1,600 x 1,400 x 1,650 mm (63 x 55.1 x 65 in) |
| Machine Weight | 1,800 kg (3,968 lbs) |
| CNC Control | Mitsubishi M80 (Miyano software) |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Gang tool plate with up to 10 positions, so tool changes are a short slide move rather than a turret index
- 52 mm (2.05 in) bar capacity through a listed 57 mm (2.24 in) spindle bore
- Listed 6,000 RPM spindle with 5.5 / 7.5 kW (7.4 / 10 HP)
- Small footprint of 1,600 x 1,400 mm and a listed weight of 1,800 kg (3,968 lbs)
Limitations
- Two axes only (X, Z): no live tooling or Y axis is listed
- Tool count is limited to the gang plate, up to 10 positions depending on configuration
- Not covered by Citizen's current pages, so the listed figures need checking on the machine
Best For
Frequently Asked Questions
01
A two-axis gang-tool lathe for chuck work. Tools are mounted on a gang tool plate with up to 10 positions instead of a turret, and there is no guide bushing. It is listed for parts up to 90 mm in diameter and 200 mm long.
02
The spindle is listed at 6,000 RPM with 5.5 / 7.5 kW (7.4 / 10 HP) and a 57 mm (2.24 in) bore, giving a 52 mm (2.05 in) bar capacity. The control is a Mitsubishi M80 with Miyano software.
03
It is not in Citizen's current lineup, and Citizen's current pages do not cover it. Treat the listed figures as a guide and confirm capacity, spindle and control on the machine itself.
04
The listed dimensions are 1,600 x 1,400 x 1,650 mm (63 x 55.1 x 65 in) and the weight 1,800 kg (3,968 lbs). The electrical rating is 10 kVA.
More from Citizen Machinery
Other CNC Lathes / Turning Centers
Nakamura-Tome SC-100

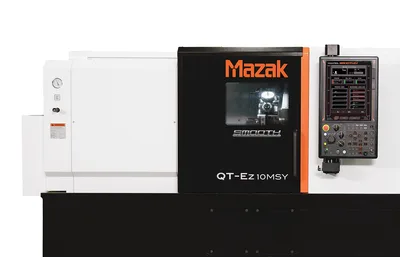

Mazak QT-Ez 10M

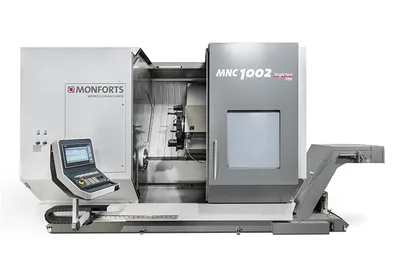

Monforts MNC 1000
