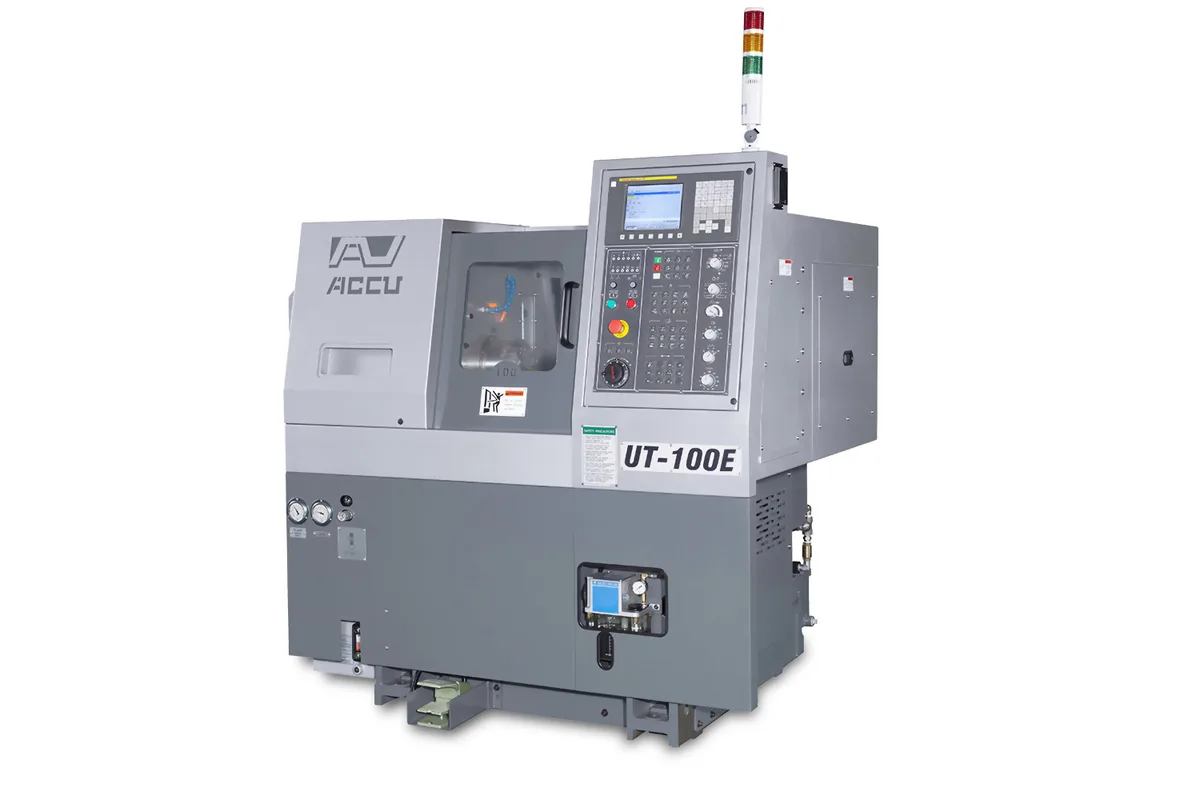

Accuway UT-100E
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-100E cost?
Price estimate
We do not have a price for the Accuway UT-100E that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Take the loader off the UT-100 and the result is the Accuway UT-100E: a plain, very compact two-axis lathe with a 6 in chuck, 1,800 kg (3,968 lb) in weight and 1.7 x 1.8 x 1.8 m (66.9 x 70.9 x 70.9 in) in size. Accuway lists it with its single-turret, single-spindle lathes.
Without the gantry on top the machine is lower, 1.8 m against 2.2 m for the UT-100, and the way parts arrive changes. The optional accessories here include a bar feeder, a bar feeder interface (7 or 24 pins) and a parts catcher with parts conveyor, none of which appear on the loader models. So the UT-100E is the bar-fed or hand-loaded member of the family. Bar capacity is 30 mm (1.2 in).
The turret rows are complete on this page: 12 stations, BOT tooling, Hydraulic/Servo drive, 20 mm (0.8 in) square and 32 mm (1.3 in) round shanks. Maximum turning diameter is 180 mm (7.1 in) and turning length 175 mm (6.9 in). Travels are 120 mm (4.7 in) in X and 230 mm (9.1 in) in Z, on box ways.
Spindle figures are the group's: A2-5, 6,000 rpm, 5.5/7.5 kW (7.4/10.1 hp). Rapid traverse is 12 m/min (472 in/min) in X and 18 m/min (709 in/min) in Z, modest numbers that matter little over such short strokes. The UT-100EM on the same page adds rotary tools.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 380 mm (15.0 in) |
| Swing Over Saddle | 320 mm (12.6 in) |
| Max Turning Diameter | 180 mm (7.1 in) |
| Max Turning Length | 175 mm (6.9 in) |
| Guideway Type | Box way |
| Spindle Nose | A2-5 |
| Chuck Size | 6 in |
| Bar Capacity | 30 mm (1.2 in) |
| Max Spindle Speed | 6,000 rpm |
| Spindle Motor Power | Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp) |
| X Axis Travel | 120 mm (4.7 in) |
| Z Axis Travel | 230 mm (9.1 in) |
| Rapid Traverse X | 12 m/min (472 in/min) |
| Rapid Traverse Z | 18 m/min (709 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic/Servo |
| Turret Stations | 12 |
| Square Tool Shank | 20 mm (0.8 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Machine Dimensions | L x W x H: 1.7 x 1.8 x 1.8 m (66.9 x 70.9 x 70.9 in) |
| Machine Weight | 1,800 kg (3,968 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Footprint of 1.7 x 1.8 x 1.8 m (66.9 x 70.9 x 70.9 in)
- Bar feeder and parts catcher offered as options
- 6,000 rpm spindle with 5.5/7.5 kW (7.4/10.1 hp)
- 12-station BOT turret on box ways
- 180 mm (7.1 in) turning diameter
Limitations
- Bar capacity of 30 mm (1.2 in)
- No integrated loader on this version
- No rotary tools; those need the UT-100EM
- Turning length of 175 mm (6.9 in) and no tailstock rows
Best For
Frequently Asked Questions
01
The UT-100 has an integrated loader and is 2.2 m high at 1,900 kg (4,189 lb). The UT-100E has no loader rows, is 1.8 m high at 1,800 kg (3,968 lb) and lists a bar feeder and a parts catcher and parts conveyor as optional accessories.
02
Maximum turning diameter 180 mm (7.1 in), maximum turning length 175 mm (6.9 in), swing over bed 380 mm (15.0 in), swing over saddle 320 mm (12.6 in). The spindle takes a 6 in chuck and a 30 mm (1.2 in) bar.
03
A 12-station turret with BOT tooling; the turret driven type row reads Hydraulic/Servo. Square tool shanks are 20 mm (0.8 in) and round shanks 32 mm (1.3 in). The table has no rotary tool rows for this model.
04
A 4-bar coolant system is a standard accessory. The optional accessories include a 15 bar high pressure coolant system, an oil mist collector and an oil-coolant skimmer.
