DN Solutions PUMA 2100 Y II

Est. $120,000 - $165,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

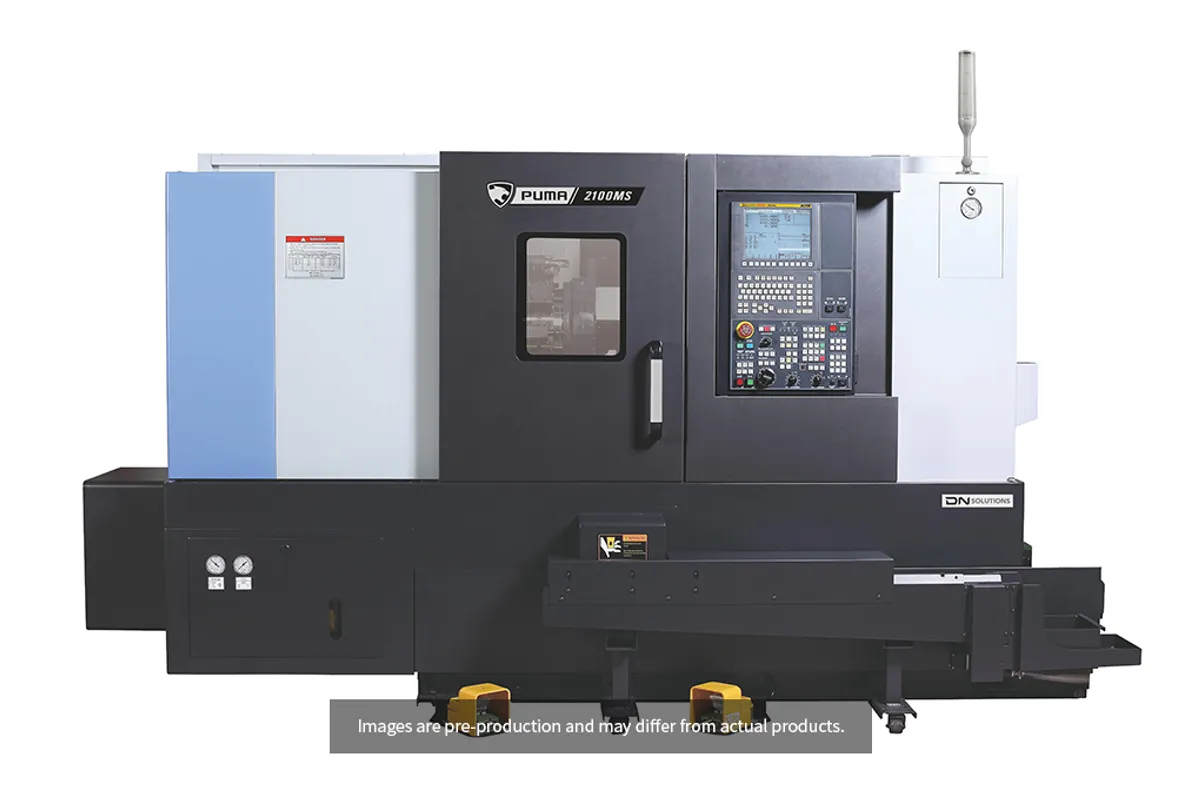

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

260 mm (10 in)

Y Travel

105 mm (4 in)

Z Travel

590 mm (23 in)

Max Spindle

5,000 rpm

Rapid Traverse

30 m/min (1,181 ipm)

Spindle Power

22 kW (29 hp)

How much does the DN Solutions PUMA 2100 Y II cost?

Estimated price range

Est.$120,000 - $165,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

The DN Solutions PUMA 2100 Y II is the most compact machine in DN's 8 in Y-axis lathe line: 520 mm (20 in) of turning length, 590 mm (23 in) of Z travel and a body 3,190 mm (126 in) long. It weighs 5,550 kg (12,236 lb).

For chucked parts and short bar work, a longer bed would only add floor space. The PUMA 2100 LY II takes the turning length to 760 mm (30 in), and it weighs 6,050 kg (13,338 lb). Width and height do not change with the bed, at 1,945 mm (77 in) and 2,163 mm (85 in).

Speed is the character of the spindle. It reaches 5,000 rpm with 22 kW (29 hp) and 358 N·m (264 ft-lb), and the live tools in the 12-station turret reach 5,000 rpm as well. Turning diameter is 406 mm (16 in), X travel is 260 mm (10 in), and the Y axis has 105 mm (4 in) of stroke. DN describes the Y axis as the feature that lets these models machine complex shapes, which in practice means flats, slots and off-centre holes without moving the part to a mill.

Two limits follow from the table. There are no sub-spindle rows in this column, so the cut-off side is a second operation; among the PUMA 2100 models here, the long-bed PUMA 2100 LSY II is the one listed with a 6,000 rpm, 15 kW (20 hp) sub-spindle. And when a job needs more turning torque than 358 N·m, the 10 in PUMA 2600 LSY II lists 599 N·m (442 ft-lb) at 4,000 rpm.

Full Specifications

Parameter	Value
Chuck Size	8 in
Max Turning Diameter	406 mm (16 in)
Max Turning Length	520 mm (20 in)
Rapid Traverse Rate	30 m/min (1,181 ipm)
X-Axis Travel	260 mm (10 in)
Y-Axis Travel	105 mm (4 in)
Z-Axis Travel	590 mm (23 in)
Max Spindle Speed	5,000 rpm
Spindle Motor Power	22 kW (29 hp)
Spindle Torque	358 N·m (264 ft-lb)
Turret Stations	12
Live Tool Speed	5,000 rpm
Floor Space Required	3,190 × 1,945 × 2,163 mm (126 × 77 × 85 in)
Machine Weight	5,550 kg (12,236 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

3,190 mm (126 in) long and 5,550 kg (12,236 lb), the smallest and lightest of the PUMA 2100 Y-axis models listed
5,000 rpm spindle with 22 kW (29 hp) and 358 N·m (264 ft-lb)
105 mm (4 in) Y axis and 5,000 rpm live tools on a 12-station turret
406 mm (16 in) turning diameter on an 8 in chuck machine
30 m/min (1,181 ipm) rapid traverse

Limitations

Turning length stops at 520 mm (20 in); longer parts need the PUMA 2100 LY II at 760 mm (30 in)
No sub-spindle is listed for this model
358 N·m (264 ft-lb) of torque is well below the 599 N·m (442 ft-lb) of the PUMA 2600 LSY II
DN's table gives no live-tool power, bar capacity or tool-size limits

Best For

Chucked parts and short shafts within 520 mm (20 in) of turning length Turn-mill work on parts that fit an 8 in chuck Shops short of floor space that still want a Y axis High-rpm turning of small diameters at up to 5,000 rpm

Frequently Asked Questions

01 What size parts fit the PUMA 2100 Y II?

The table lists a maximum turning diameter of 406 mm (16 in) and a maximum turning length of 520 mm (20 in), with an 8 in chuck. Travels are 260 mm (10 in) in X, 105 mm (4 in) in Y and 590 mm (23 in) in Z.

02 How much floor space does the PUMA 2100 Y II take?

The machine is 3,190 mm (126 in) long, 1,945 mm (77 in) wide and 2,163 mm (85 in) high, and weighs 5,550 kg (12,236 lb). The long-bed PUMA 2100 LY II is 6,050 kg (13,338 lb) by comparison.

03 Can the PUMA 2100 Y II mill as well as turn?

Yes. It has a Y axis with 105 mm (4 in) of travel and live tools that run to 5,000 rpm in a 12-station turret. DN's table does not state the live-tool motor power, so check that figure if the milling is more than light slotting and drilling.

04 Is there a version with a sub-spindle?

This column of DN's table has no sub-spindle rows. The PUMA 2100 LSY II lists a sub-spindle at 6,000 rpm and 15 kW (20 hp), on the longer bed with 760 mm (30 in) of turning length, and weighs 6,500 kg (14,330 lb).
