Accuway UA-330LY
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UA-330LY cost?
Price estimate
We do not have a price for the Accuway UA-330LY that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

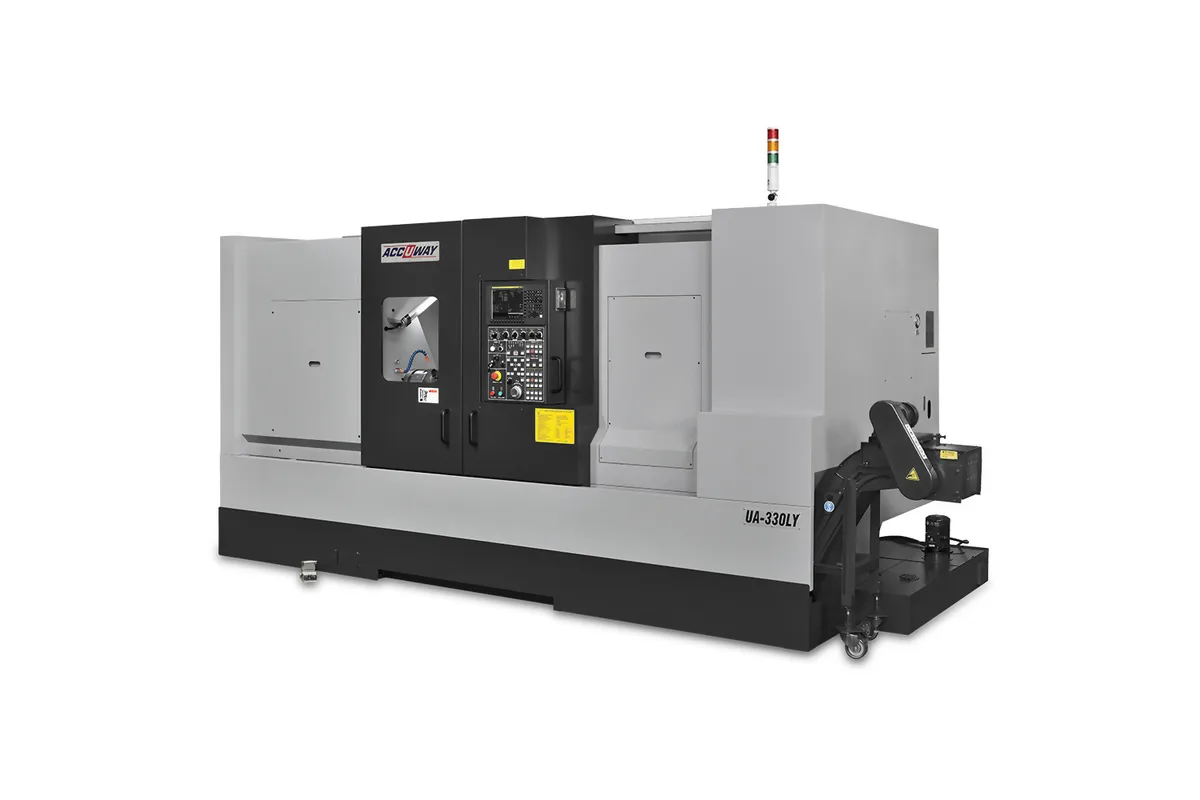

Fifteen turret stations and 6,000 rpm rotary tools set the Accuway UA-330LY apart from the UT-300 lathes it resembles in size. It is a long-bed, single-spindle Y-axis machine: 1,250 mm (49.2 in) of Z travel, ±50 mm (±2.0 in) of Y, and a tailstock.
The UT-300LSY and its relatives have 12 stations and rotary tools at 4,000 rpm; this one has 15 stations on BMT-55N tooling and half as much speed again at the tool. More stations mean fewer compromises when a part needs turning tools, drills, taps and several milling cutters in one setup. Higher tool speed suits small cutters.
The turning side is sized like a 10 or 12 in chuck lathe. Maximum turning diameter is 350 mm (13.8 in) and turning length 1,140 mm (44.9 in), with 290 mm (11.4 in) of X travel. The spindle has an A2-8 nose and a 75 mm (3.0 in) bar capacity, and its two columns give a 12 in chuck at 2,500 rpm or a 10 in chuck at 3,500 rpm. Motor power is 15/18.5 kW (20.1/24.8 hp).
For shaft work the tailstock body travels 1,040 mm (40.9 in), with a 110 mm (4.3 in) MT#5 quill. The rotary tool motor is 3.7/5.5 kW (5.0/7.4 hp). The machine weighs 7,500 kg (16,534 lb) and is 4.9 m long. Rotary tool holders and a gear box are optional accessories; a bar feeder and parts catcher are listed too.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 800 mm (31.5 in) |
| Swing Over Saddle | 600 mm (23.6 in) |
| Max Turning Diameter | 350 mm (13.8 in) |
| Max Turning Length | 1,140 mm (44.9 in) |
| Guideway Type | Box Way |
| Spindle Nose | A2-8 |
| Chuck Size | 12 / 10 in |
| Bar Capacity | 75 mm (3.0 in) |
| Max Spindle Speed | 2,500 / 3,500 rpm |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp) |
| X Axis Travel | 290 mm (11.4 in) |
| Z Axis Travel | 1,250 mm (49.2 in) |
| Y Axis Travel | ±50 mm (±2.0 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 24 m/min (945 in/min) |
| Rapid Traverse Y | 10 m/min (394 in/min) |
| Tailstock Body Travel | 1,040 mm (40.9 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 110 mm (4.3 in) |
| Tailstock Quill Taper | MT#5 |
| Turret Tooling | BMT-55N |
| Turret Drive | Servo mechanical |
| Turret Stations | 15 |
| Square Tool Shank | 25 mm (1.0 in) |
| Round Tool Shank | 40 mm (1.6 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Machine Dimensions | L x W x H: 4.9 x 2.4 x 2.2 m (192.9 x 94.5 x 86.6 in) |
| Machine Weight | 7,500 kg (16,534 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 15-station BMT-55N turret with 6,000 rpm rotary tools
- Y axis of ±50 mm (±2.0 in) over 1,250 mm (49.2 in) of Z travel
- 1,140 mm (44.9 in) turning length with tailstock
- 15/18.5 kW (20.1/24.8 hp) spindle, A2-8, 75 mm (3.0 in) bar
- 800 mm (31.5 in) swing over bed
Limitations
- Turning diameter of 350 mm (13.8 in)
- Y rapid traverse of 10 m/min (394 in/min)
- Single spindle: second side needs re-chucking
- Rotary tool holders and gear box are optional
Best For
Frequently Asked Questions
01
15 stations, with BMT-55N tooling and servo mechanical drive. Rotary tool speed is 6,000 rpm and rotary tool power 3.7/5.5 kW (5.0/7.4 hp). Shanks are 25 mm (1.0 in) square and 40 mm (1.6 in) round.
02
X 290 mm (11.4 in), Z 1,250 mm (49.2 in) and Y ±50 mm (±2.0 in). Rapid traverse is 20 m/min (787 in/min) in X, 24 m/min (945 in/min) in Z and 10 m/min (394 in/min) in Y.
03
The UT-300Y has 750 mm (29.5 in) of Z travel, 12 stations, rotary tools at 4,000 rpm and a 420 mm (16.5 in) turning diameter. The UA-330LY has 1,250 mm (49.2 in) of Z travel, 15 stations, rotary tools at 6,000 rpm and a 350 mm (13.8 in) turning diameter.
04
The table has two columns: a 12 in chuck at 2,500 rpm and a 10 in chuck at 3,500 rpm, both on an A2-8 nose with a 15/18.5 kW (20.1/24.8 hp) motor. A gear box is an optional accessory.
