DN Solutions PUMA 800 L II

Est. $320,000 - $440,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

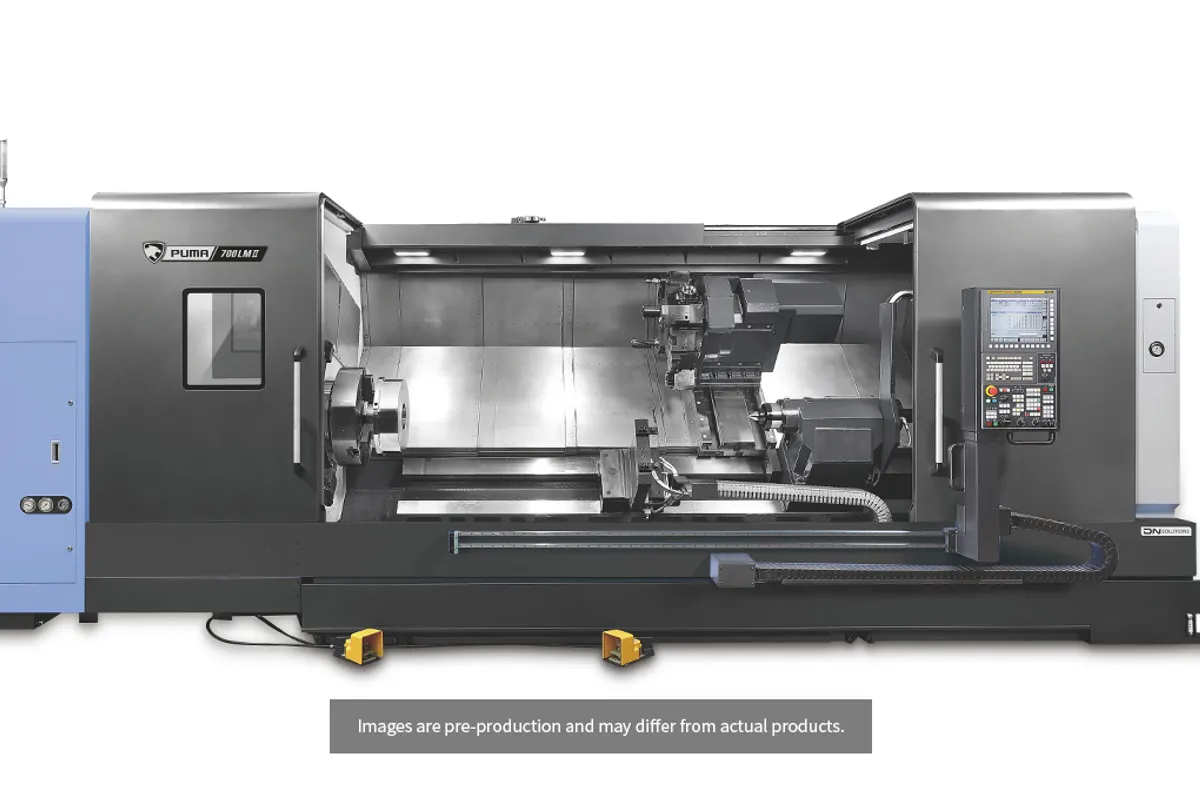

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

470 mm (19 in)

Z Travel

3,235 mm (127 in)

Max Spindle

750 rpm

Spindle Power

55 kW (74 hp)

Max Turn Length

3,200 mm (126 in)

chuck size

32 in

How much does the DN Solutions PUMA 800 L II cost?

Estimated price range

Est.$320,000 - $440,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

Twice the turning length of the base model is what the DN Solutions PUMA 800 L II offers: 3,200 mm (126 in) behind a 32 in chuck, at a maximum turning diameter of 900 mm (35 in). It is a two-axis horizontal turning center with 470 mm (19 in) of X travel, 3,235 mm (127 in) of Z travel and a 12-station turret.

The spindle rating is the one used across the family. It is 55 kW (74 hp) and 8,076 N·m (5,957 ft-lb), and in this model the speed is limited to 750 rpm. For a long, heavy shaft that combination works well: roughing a large-diameter forging needs torque far more than speed. Where it costs time is on the small-diameter ends of the same shaft, where 750 rpm keeps the cutting speed low.

Stretching the bed changes three rows. Weight rises from 16,500 kg (36,376 lb) on the PUMA 800 II to 22,000 kg (48,502 lb). Z rapid falls from the 16 m/min (630 ipm) of the PUMA 800 II to 10 m/min (394 ipm), while X stays at 12 m/min (472 ipm). And the machine becomes 7,354 mm (290 in) long, with a width of 2,713.5 mm (107 in) and a height of 2,590 mm (102 in).

Two alternatives share this bed length. The PUMA 700 L II has a 24 in chuck and 1,500 rpm for the same listed power and torque, which suits shafts that are long but not large in diameter. The PUMA 800 LB II has a made-to-order chuck and 500 rpm. If the work also needs milling, the live tool speed row belongs to the PUMA 800 LM II; this column has none.

On a 3,200 mm part, support matters as much as capacity. The table does not list a tailstock, steady rest or maximum workpiece weight, and it gives no spindle bore for this model. DN quotes a through hole of up to Ø375 mm for the series only. Ask for all four before sizing a job.

Full Specifications

Parameter	Value
Chuck Size	32 in
Max Turning Diameter	900 mm (35 in)
Max Turning Length	3,200 mm (126 in)
Rapid Traverse X	12 m/min (472 ipm)
Rapid Traverse Z	10 m/min (394 ipm)
X-Axis Travel	470 mm (19 in)
Z-Axis Travel	3,235 mm (127 in)
Max Spindle Speed	750 rpm
Spindle Motor Power	55 kW (74 hp)
Spindle Torque	8,076 N·m (5,957 ft-lb)
Turret Stations	12
Floor Space Required	7,354 × 2,713.5 × 2,590 mm (290 × 107 × 102 in)
Machine Weight	22,000 kg (48,502 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

3,200 mm (126 in) maximum turning length, double the 1,600 mm (63 in) of the PUMA 800 II
32 in chuck on a 900 mm (35 in) maximum turning diameter
55 kW (74 hp) spindle with 8,076 N·m (5,957 ft-lb) of torque
750 rpm, where the PUMA 800 LB II on the same bed is limited to 500 rpm

Limitations

Z rapid is 10 m/min (394 ipm) over 3,235 mm (127 in) of travel
750 rpm top speed; the PUMA 700 L II reaches 1,500 rpm with a 24 in chuck
No live tools in this column; milled features need the PUMA 800 LM II and its 3,000 rpm driven tools
Tailstock, steady rest and workpiece weight limits are not in the table and must be requested

Best For

Long, large-diameter shafts and rolls up to 3,200 mm (126 in) Heavy roughing of forgings with 8,076 N·m (5,957 ft-lb) of torque Parts that need the grip of a 32 in chuck on a long bed Turning-only work at spindle speeds up to 750 rpm

Frequently Asked Questions

01 How long a shaft can the PUMA 800 L II turn?

The maximum turning length is 3,200 mm (126 in) and Z travel is 3,235 mm (127 in), with a maximum turning diameter of 900 mm (35 in). DN's series text gives 5 m as the longest turning length in the PUMA 600/700/800 range, so a longer bed exists above this one.

02 PUMA 800 L II or PUMA 700 L II: which one fits my parts?

Both turn 900 mm (35 in) by 3,200 mm (126 in) with 55 kW (74 hp) and 8,076 N·m (5,957 ft-lb), and both weigh 22,000 kg (48,502 lb). The PUMA 800 L II has a 32 in chuck and 750 rpm; the PUMA 700 L II has a 24 in chuck and 1,500 rpm. Large-diameter parts favour the bigger chuck, and slender shafts favour the higher speed.

03 What changes compared with the standard PUMA 800 II?

Bed length. The PUMA 800 II turns 1,600 mm (63 in), has a 16 m/min (630 ipm) Z rapid and weighs 16,500 kg (36,376 lb). The PUMA 800 L II turns 3,200 mm (126 in), has a 10 m/min (394 ipm) Z rapid and weighs 22,000 kg (48,502 lb). Chuck, spindle, X travel and turret are unchanged.

04 Does the PUMA 800 L II include a steady rest or tailstock?

The table does not list either, and it does not give a maximum workpiece weight. On parts approaching 3,200 mm (126 in) those items decide what can really be machined, so have DN state what is standard and what is optional on the quotation for this model.

05 What are the installation dimensions?

7,354 × 2,713.5 × 2,590 mm (290 × 107 × 102 in), length by width by height, and 22,000 kg (48,502 lb) of machine weight. Plan the crane path along the bed, because long shafts are lowered in from above.
