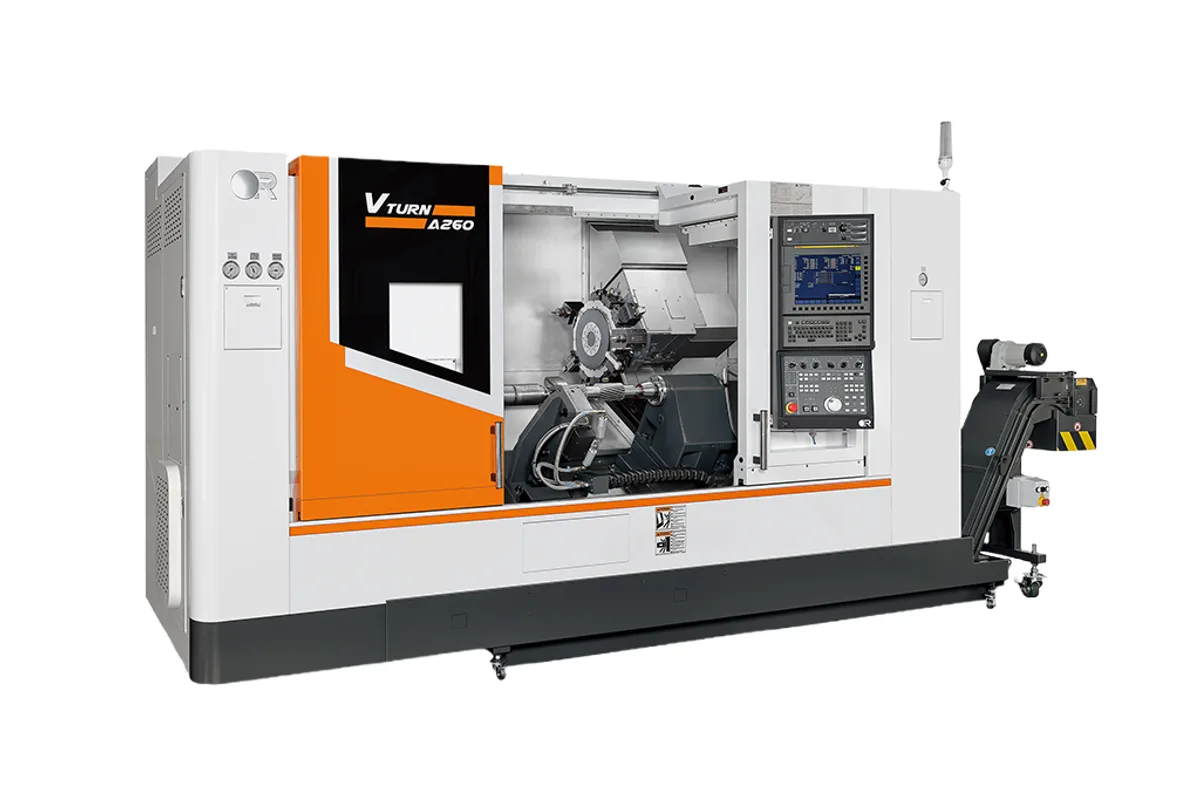

Victor Taichung Vturn-A260/130
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Max Turn Length
standard turning diameter
max turning diameter
swing over carriage
spindle nose
How much does the Victor Taichung Vturn-A260/130 cost?
Price estimate
We do not have a price for the Victor Taichung Vturn-A260/130 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vturn-A260/130 is the long-bed A series turning center: up to 1,400 mm (55.11 in) of turning length behind a 10 in chuck on an A2-8 nose. The main spindle is listed at 3,500 rpm and marked belt-driven.
Length is what sets it apart from the Vturn-A260/75. The table gives 1,400 mm (55.11 in) for the SM, YCM and YSCM columns and 1,360 mm (53.54 in) for the CM and SCM. Maximum turning diameter is Ø480 mm (Ø18.89 in) for the SM and Ø420 mm (Ø16.53 in) for the rest, with Ø358 mm (Ø14.09 in) standard. Weight runs from 8,200 kg (18,077.88 lb) to 8,500 kg (18,739.26 lb).
One thing about this page should be checked with the supplier before ordering. The maker's table fills in the same sub-spindle figures in all five columns (5,000 rpm, marked built-in, A2-6 nose with an 8 in chuck, Ø52 mm (Ø2.04 in) bar capacity) and the same M.T. #5 tailstock quill in all five as well. On the shorter A260 the two are alternatives. The table also has no bar capacity row for the main spindle. Ask which of the two a given configuration actually carries.
What is clear is the kind of work. A 12-tool turret on □25 mm shanks, Z rapid feed of 24 m/min and a long bed make this a machine for shafts that also need milling, with the YCM and YSCM adding a Y axis.
Full Specifications
| Parameter | Value |
|---|---|
| Standard Turning Diameter | Ø358 mm (Ø14.09 in) |
| Max Turning Diameter | SM: Ø480 mm (Ø18.89 in); CM, SCM, YCM, YSCM: Ø420 mm (Ø16.53 in) |
| Max Turning Length | SM, YCM, YSCM: 1,400 mm (55.11 in); CM, SCM: 1,360 mm (53.54 in) |
| Swing Over Carriage | SM: Ø620 mm (Ø24.4 in); CM, SCM, YCM, YSCM: Ø770 mm (Ø30.31 in) |
| Max Spindle Speed | 3,500 rpm (belt-driven) |
| Spindle Nose | A2-8 (10") |
| Sub Spindle Speed | 5,000 rpm (built-in) |
| Sub Spindle Nose | A2-6 (8") |
| Sub Spindle Bar Capacity | Ø52 mm (Ø2.04 in) |
| Turret Tools | 12 |
| Tool Shank Size | □25 mm |
| Tailstock Quill Taper | M.T. #5 |
| Machine Weight | SM: 8,200 kg (18,077.88 lb); CM, SCM: 8,300 kg (18,298.34 lb); YCM, YSCM: 8,500 kg (18,739.26 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Up to 1,400 mm (55.11 in) of turning length in a C-axis turning center
- Sub-spindle figures of 5,000 rpm with an 8 in chuck and Ø52 mm (Ø2.04 in) bar capacity
- M.T. #5 tailstock quill listed for shaft support
- 12-tool turret on □25 mm shanks
- Y-axis configurations available as YCM and YSCM
Limitations
- The maker's table gives no bar capacity for the main spindle of this model
- Sub-spindle and tailstock are both listed in every column, so the real equipment per configuration must be confirmed
- Maximum turning diameter is Ø420 mm (Ø16.53 in) outside the SM column
- At up to 8,500 kg (18,739.26 lb) it is well heavier than the 75 size
Best For
Frequently Asked Questions
01
1,400 mm (55.11 in) in the SM, YCM and YSCM columns and 1,360 mm (53.54 in) in the CM and SCM columns. Victor Taichung's series notes give the Z-axis travel as 1300 mm.
02
The table lists sub-spindle figures in every column: 5,000 rpm, built-in, with an A2-6 nose, an 8 in chuck and Ø52 mm (Ø2.04 in) bar capacity. It lists a tailstock quill in every column too, so confirm with the supplier what each configuration is delivered with.
03
The maker's table for this model has no bar capacity row for the main spindle. The only bar figure on the page is Ø52 mm (Ø2.04 in) for the sub-spindle. A large spindle bore is on the A series option list.
04
8,200 kg (18,077.88 lb) for the SM, 8,300 kg (18,298.34 lb) for the CM and SCM, and 8,500 kg (18,739.26 lb) for the YCM and YSCM.
