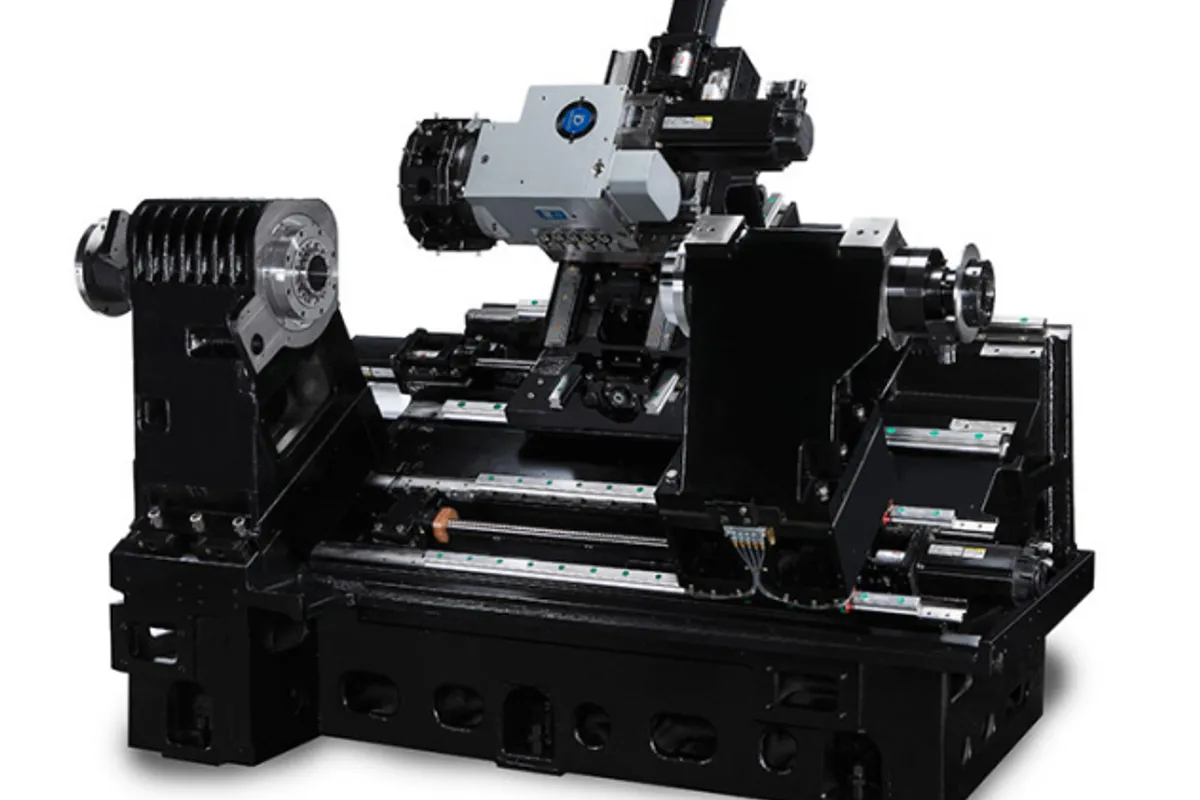

Hurco TMX8MYi

Est. $130,000 - $175,000 Specs verified 2026-10-03 · hurco.com Updated 2026-10-03

Key Specifications

X Travel

285.5 mm (11.24 in)

Y Travel

55 mm (2.17 in)

Z Travel

560 mm (22.05 in)

Max Spindle

4,500 rpm

Spindle Taper

BMT65

Tool Capacity

12 tools

How much does the Hurco TMX8MYi cost?

Estimated price range

Est.$130,000 - $175,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from Hurco. Configuration moves it a long way.

Overview

The Hurco TMX8MYi is the Y-axis, live-tooling version of the TMX8i turning center: a 210 mm (8.27 in) chuck, a 25 kW (33.5 hp) spindle to 4,500 rpm, 55 mm (2.17 in) of Y travel and a 12-station turret with 5,000 rpm driven tools. It turns parts up to 274.6 mm (10.81 in) in diameter and 527 mm (20.75 in) long, and weighs 7,500 kg (16,535 lb).

Set beside the TMX8i, the table shows what the milling capability costs. The TMX8i has a 37.5 kW (50.29 hp) spindle with 369.2 Nm (272.3 ft-lb) and turns up to 356 mm (14.01 in) in diameter. The TMX8MYi drops to 25 kW (33.5 hp) and 238.7 Nm (176.1 ft-lb), and its turning diameter to 274.6 mm (10.81 in). In return it gains the Y slide, driven tools and more X travel: 285.5 mm (11.24 in) against 203 mm (8 in) on the TMX8i. A shop whose parts carry off-center holes and milled flats saves a second setup; a shop doing mostly heavy plain turning is better served by the TMX8i.

The driven tools are rated 6.3 kW (8.5 HP) and 27.6 Nm (20.4 lb-ft). That is sized for drilling, tapping and moderate end milling rather than heavy pocketing. The turret takes 25 mm x 25 mm shanks and boring bars up to 40 mm (1.57 in), and its interface is listed as BMT65.

Rapids are 24 m/min (945 ipm) on X, 12 m/min (472 ipm) on Y and 30 m/min (1181 ipm) on Z and on the W axis, which travels 640 mm (25.2 in). Distance between centers is 754 mm (29.68 in), swing is 508 mm (20 in) over both bed and cross slide, and bar capacity is 64.5 mm (2.54 in). If the parts also need back-working, the TMX8MYSi adds a sub-spindle on the same frame. Control is Hurco WinMax, conversational plus NC.

Full Specifications

Parameter	Value
Rapid Traverse X	24 m/min / 945 ipm
Rapid Traverse Y	12 m/min / 472 ipm
Rapid Traverse Z	30 m/min / 1181 ipm
Rapid Traverse W	30 m/min / 1181 ipm
Distance Between Centers	754 mm (29.68 in)
Max Turning Diameter	274.6 mm (10.81 in)
Max Turning Length	527 mm (20.75 in)
Max Bar Capacity	64.5 mm (2.54 in)
Swing Over Bed	508 mm (20 in)
Swing Over Cross Slide	508 mm (20 in)
Machine Weight	7,500 kg (16,535 lb)
X-Axis Travel	285.5 mm (11.24 in)
Y-Axis Travel	55 mm (2.17 in)
Z-Axis Travel	560 mm (22.05 in)
W Axis Travel	640 mm (25.2 in)
Chuck Size	210 mm (8.27 in)
Spindle Motor Power	25 kW (33.5 hp)
Spindle Torque	238.7 Nm (176.1 ft-lb)
Max Spindle Speed	4,500 rpm
Spindle Taper	BMT65
Tool Capacity	12 tools
Live Tool Speed	5,000 rpm
Live Tool Torque	27.6 Nm (20.4 lb-ft)
Live Tool Power	6.3 kW (8.5 HP)
Turret Stations	12
Turret Tool Shank	25 mm x 25 mm (.98" x .98")
Max Boring Bar Diameter	40 mm (1.57 in)

Specifications sourced from hurco.com — verified 2026-10-03

Strengths & Limitations

Strengths

55 mm (2.17 in) of Y travel and 5,000 rpm driven tools for off-center features in one setup
285.5 mm (11.24 in) of X travel, against 203 mm (8 in) on the TMX8i
7,500 kg (16,535 lb) machine weight for a 210 mm (8.27 in) chuck lathe
Boring bars up to 40 mm (1.57 in) and 25 mm x 25 mm turning shanks
W axis with 640 mm (25.2 in) of travel at 30 m/min (1181 ipm)

Limitations

Main spindle is 25 kW (33.5 hp) and 238.7 Nm (176.1 ft-lb), well below the 37.5 kW (50.29 hp) of the TMX8i
Turning diameter is 274.6 mm (10.81 in), against 356 mm (14.01 in) on the TMX8i
Live tools rated 6.3 kW (8.5 HP) and 27.6 Nm (20.4 lb-ft) limit heavy milling
No sub-spindle; parts needing back-working go to the TMX8MYSi

Best For

Bar parts up to 64.5 mm (2.54 in) with off-center holes Chucked parts up to 274.6 mm (10.81 in) with milled flats Replacing a turn-then-mill routing with one setup Parts up to 527 mm (20.75 in) turning length

Frequently Asked Questions

01 What is the difference between the TMX8MYi and the TMX8i?

The TMX8MYi has 55 mm (2.17 in) of Y travel, 5,000 rpm live tools and 285.5 mm (11.24 in) of X travel. The TMX8i has no listed live tooling but a stronger 37.5 kW (50.29 hp), 369.2 Nm (272.3 ft-lb) spindle and a 356 mm (14.01 in) turning diameter, against 274.6 mm (10.81 in).

02 How does the TMX8MYi differ from the TMX8MYSi?

The TMX8MYSi adds a sub-spindle rated 6,000 rpm, 15 kW (20.1 HP) and 102.2 Nm (75.4 lb-ft), so the back of a part can be machined without a second setup. Travels, main spindle and turret are the same on both.

03 How strong are the TMX8MYi live tools?

The driven tools run to 5,000 rpm and are rated 6.3 kW (8.5 HP) with 27.6 Nm (20.4 lb-ft) of torque. The turret interface is listed as BMT65, and turning tools use 25 mm x 25 mm shanks.

04 What are the TMX8MYi travels and rapids?

X travel is 285.5 mm (11.24 in), Y 55 mm (2.17 in), Z 560 mm (22.05 in) and W 640 mm (25.2 in). Rapids are 24 m/min (945 ipm) on X, 12 m/min (472 ipm) on Y and 30 m/min (1181 ipm) on Z and W.
