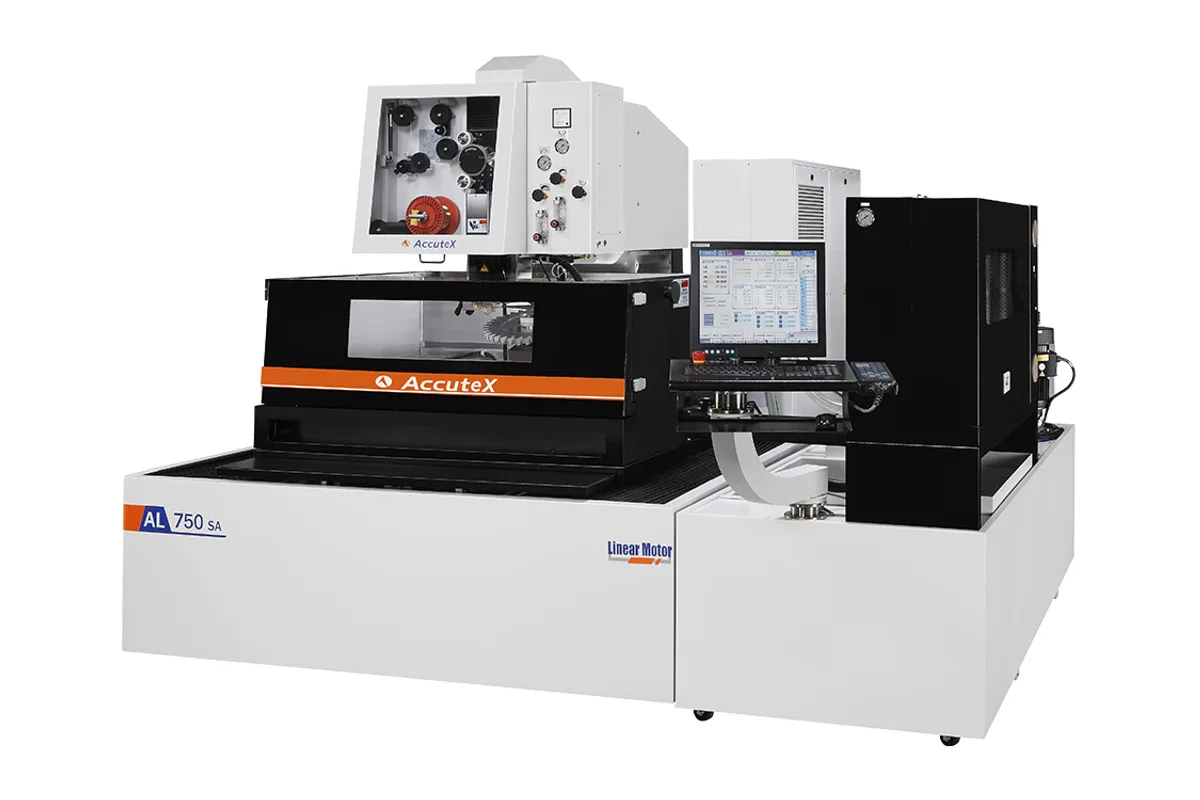

AccuteX AL-750SA
Image: accutex.com.tw, AccuteX
Key Specifications
max workpiece size
max workpiece weight
x axis travel
y axis travel
uv axis travel
z axis travel
How much does the AccuteX AL-750SA cost?
Price estimate
We do not have a price for the AccuteX AL-750SA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At 750 mm (29.5 in) by 500 mm (19.7 in), the AL-750SA is the largest of AccuteX's AL-series wire EDMs. The Z stroke is 300 mm (11.8 in), the same as the two mid-size AL models, so this machine adds plate area, not height. It accepts workpieces up to 1,190 x 720 x 295 mm (46.9 x 28.3 x 11.6 in) and 750 kg (1,653 lb).
Size brings weight and water. The AL-750SA weighs 4,300 kg (9,480 lb) and its water system holds 1,060 L, on a footprint of 3,000 x 3,200 x 2,250 mm (118.1 x 126.0 x 88.6 in). Plan the floor around the filled machine and the loaded table together.
AccuteX also lists the AU-750iA with identical X, Y and Z travels and the same 4,300 kg (9,480 lb) machine weight. The two differ in the details. The AU-750iA takes an 800 kg (1,764 lb) workpiece, a 16 kg (35 lb) wire spool and has a 1,240 L water system. The AL-750SA takes 750 kg (1,653 lb) and a 10 kg (22 lb) spool, and its page lists Auto Wire Threading (AWT), a water chiller and the SD Master board as standard accessories.
One option differs from the smaller AL models. AccuteX's optional list names MST for the AL-400SA, 500SA, 560SA and 600SA, and this model is not in that list. If MST is a requirement, raise it before ordering. The PCD / graphite cutting supply, the 0.1mm Wire Application, X/Y linear scales and the 6th Axis Package (W axis) are listed as options here.
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Size | 1,190 x 720 x 295 mm (46.9 x 28.3 x 11.6 in) (L x W x H) |
| Max Workpiece Weight | 750 kg (1,653 lb) |
| X Axis Travel | 750 mm (29.5 in) |
| Y Axis Travel | 500 mm (19.7 in) |
| Uv Axis Travel | 100 x 100 mm (3.9 x 3.9 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Max Cutting Taper | ±21° (H=100) |
| Wire Spool Weight | 10 kg (22 lb) |
| Machine Dimensions | 3,000 x 3,200 x 2,250 mm (118.1 x 126.0 x 88.6 in) (W x D x H) |
| Water System Capacity | 1,060 L |
| Machine Weight | 4,300 kg (9,480 lb) |
| Controller System | Windows |
| Control Device | 64-bit Industrial PC |
| Storage Device | ≥ 30GB SSD |
| Screen Display | Color TFT Touch Screen |
| Data Input | Keyboard, Mouse, USB, Ethernet, FTP |
| Controlled Axes | 5 Axes / 6 Axes (Opt. W Axis) |
| Simultaneous Axes | 4 Axes / 5 Axes (Opt. W Axis) |
| Min Command Unit | 0.0001 mm / 0.00001 inch |
| Max Command Range | ±9999.9999 mm |
| Cutting Data Memory | 99999 Sets |
| Power Type | MOSFET Non-electrolysis power |
| Ignition Power Supply | 32 Steps, 53V~138V |
| On Time Settings | 24 Steps |
| Off Time Settings | 43 Steps |
Specifications sourced from accutex.com.tw — verified 2026-10-05
Strengths & Limitations
Strengths
- Largest AL travel: 750 mm (29.5 in) by 500 mm (19.7 in) with a 300 mm (11.8 in) Z stroke
- Takes workpieces up to 1,190 x 720 x 295 mm (46.9 x 28.3 x 11.6 in) and 750 kg (1,653 lb)
- Auto Wire Threading (AWT), water chiller and SD Master are standard accessories
- A 45Kg Wire Jumbo Feeder is available for long cuts on large plates
Limitations
- The MST option is listed for the AL-400SA, 500SA, 560SA and 600SA only, not for this model
- Standard spool is 10 kg (22 lb), where the AU-750iA takes 16 kg (35 lb)
- U and V travel stays at 100 x 100 mm (3.9 x 3.9 in) and taper at ±21° (H=100) despite the larger table
- Needs 3,000 x 3,200 x 2,250 mm (118.1 x 126.0 x 88.6 in) of space and a 1,060 L water fill
Best For
Frequently Asked Questions
01
Cutting travel is 750 mm (29.5 in) in X and 500 mm (19.7 in) in Y. The workpiece itself can be up to 1,190 x 720 x 295 mm (46.9 x 28.3 x 11.6 in) and 750 kg (1,653 lb), so a plate longer than the travel can sit on the table and be cut in the area the wire reaches.
02
Travels and machine weight are the same. The AU-750iA carries 800 kg (1,764 lb), takes a 16 kg (35 lb) spool and has a 1,240 L water system. The AL-750SA carries 750 kg (1,653 lb) with a 10 kg (22 lb) spool and 1,060 L, and its page lists AWT and a water chiller as standard. Compare the delivered scope of each.
03
A 6th Axis Package (W axis) is in the optional accessory list. The controller table gives 5 Axes / 6 Axes (Opt. W Axis) controlled and 4 Axes / 5 Axes (Opt. W Axis) simultaneous, so the W axis interpolates with the others when it is fitted.
04
The machine weighs 4,300 kg (9,480 lb) and measures 3,000 x 3,200 x 2,250 mm (118.1 x 126.0 x 88.6 in) in width, depth and height. The water system holds 1,060 L. A transformer and an auto voltage stabilizer are optional accessories, so check the site voltage against the standard machine.
