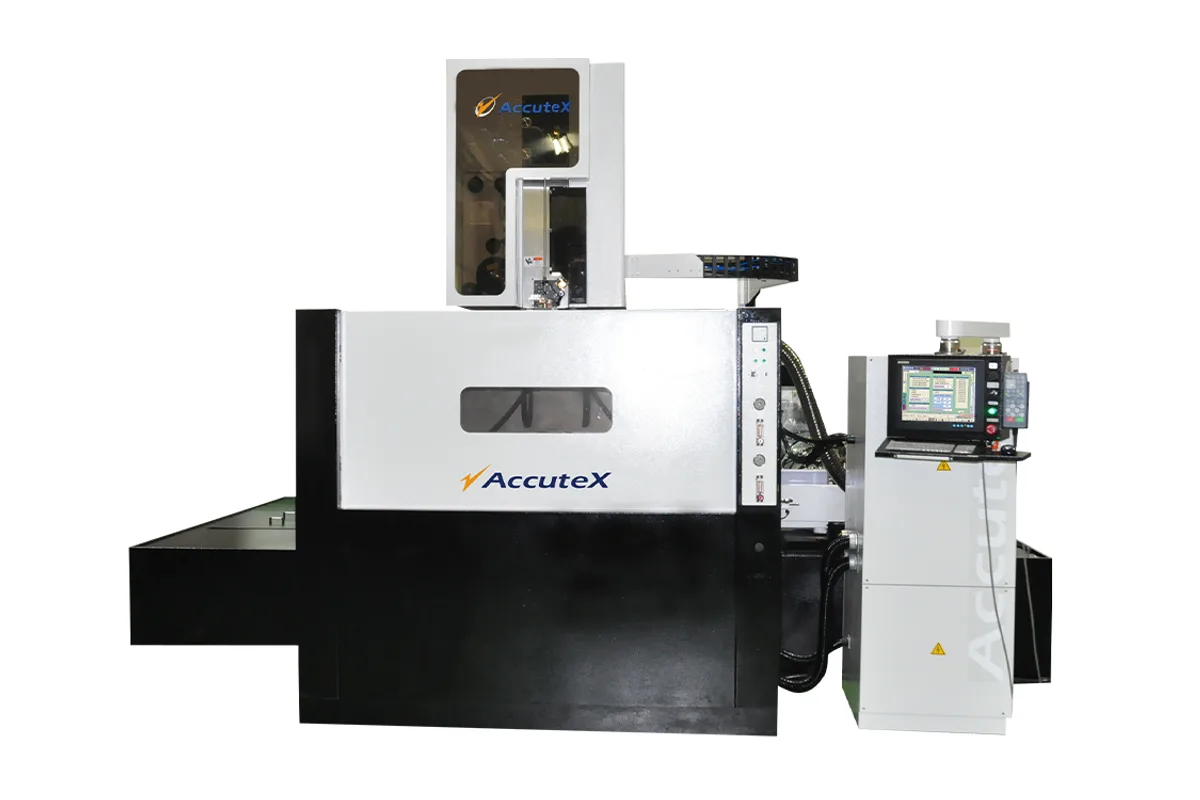

AccuteX AU-1400iA (Z800)
Image: accutex.com.tw, AccuteX
Key Specifications
max workpiece size
max cutting workpiece height
max workpiece weight
x axis travel
y axis travel
uv axis travel
How much does the AccuteX AU-1400iA (Z800) cost?
Price estimate
We do not have a price for the AccuteX AU-1400iA (Z800) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
An 800 mm (31.5 in) Z stroke and a 10,000 kg (22,046 lb) workpiece rating make the AccuteX AU-1400iA (Z800) the largest wire EDM the maker lists. X travel is 1,400 mm (55.1 in) and Y is 800 mm (31.5 in), so the cutting volume is as tall as it is deep.
AccuteX gives this version its own product page and its own figures. The workpiece envelope is 1,790 x 1,080 x 795 mm (70.5 x 42.5 x 31.3 in) and the maximum cutting height is 800 mm (31.5 in). The standard AU-1400iA, by contrast, has a 200 mm (7.9 in) Z stroke and a 4,000 kg (8,818 lb) rating. The two share a plan size and little else.
Work of this height is unusual: large extrusion dies, tall stacked plates, deep slots through forged or welded blocks, big structural parts. The series text promotes cutting such a part in one cycle instead of repositioning it. Threading through a tall workpiece is the practical difficulty. AccuteX's general AWT description speaks of threading directly in a workpiece of 300mm, well short of this machine's stroke, so ask the maker what to expect at full height.
The installation is on a different scale from the other AU models. The machine weighs 10,100 kg (22,266 lb) and measures 5,110 x 4,400 x 3,320 mm (201.2 x 173.2 x 130.7 in), which is a ceiling-height question as much as a floor-space one. Water is split between a main and a sub tank of 2,000 and 1,466 L. A fully loaded table adds up to 10,000 kg (22,046 lb) more. U and V travel 150 x 150 mm (5.9 x 5.9 in), with taper to ±30° / H100.
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Size | 1,790 x 1,080 x 795 mm (70.5 x 42.5 x 31.3 in) (L x W x H) |
| Max Cutting Workpiece Height | 800 mm (31.5 in) |
| Max Workpiece Weight | 10,000 kg (22,046 lb) |
| X Axis Travel | 1,400 mm (55.1 in) |
| Y Axis Travel | 800 mm (31.5 in) |
| Uv Axis Travel | 150 x 150 mm (5.9 x 5.9 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Max Cutting Taper | ±30° / H100 |
| Wire Spool Weight | 16 kg (35 lb) |
| Machine Dimensions | 5,110 x 4,400 x 3,320 mm (201.2 x 173.2 x 130.7 in) (W x D x H, Z800) |
| Water System Capacity | Main + Sub Tank: 2,000 + 1,466 L |
| Machine Weight | 10,100 kg (22,266 lb) |
| Controller System | Windows |
| Control Device | 64-bit Industrial PC |
| Storage Device | ≥ 30GB SSD |
| Screen Display | 21.5" Color TFT Touch Screen |
| Data Input | Keyboard, Mouse, USB, Ethernet, FTP |
| Controlled Axes | 5 Axes / 6 Axes (Opt. W Axis) |
| Simultaneous Axes | 4 Axes / 5 Axes (Opt. W Axis) |
| Min Command Unit | 0.0001 mm / 0.00001 inch |
| Max Command Range | ±9999.9999 mm |
| Cutting Data Memory | 99999 Sets |
| Power Type | MOSFET Non-electrolysis power |
| Ignition Power Supply | 32 Steps, 53V~138V |
| On Time Settings | 24 Steps |
| Off Time Settings | 43 Steps |
Specifications sourced from accutex.com.tw — verified 2026-10-05
Strengths & Limitations
Strengths
- 800 mm (31.5 in) Z stroke with a maximum cutting height of 800 mm (31.5 in)
- Workpiece rating of 10,000 kg (22,046 lb), the highest AccuteX lists
- 1,400 mm (55.1 in) by 800 mm (31.5 in) of X and Y travel
- 150 x 150 mm (5.9 x 5.9 in) of U and V travel and taper to ±30° / H100
- Envelope of 1,790 x 1,080 x 795 mm (70.5 x 42.5 x 31.3 in)
Limitations
- Machine height of 3,320 mm in a footprint of 5,110 x 4,400 x 3,320 mm (201.2 x 173.2 x 130.7 in)
- Weighs 10,100 kg (22,266 lb) before water and a workpiece of up to 10,000 kg (22,046 lb)
- Needs a main and a sub tank of 2,000 and 1,466 L
- AccuteX's AWT description refers to a workpiece of 300mm, so threading performance at full height is not documented
Best For
Frequently Asked Questions
01
AccuteX lists the maximum height of cutting workpiece as 800 mm (31.5 in), equal to the Z stroke. The largest workpiece is 1,790 x 1,080 x 795 mm (70.5 x 42.5 x 31.3 in), and it can weigh up to 10,000 kg (22,046 lb).
02
The standard AU-1400iA has a 200 mm (7.9 in) Z stroke, a 4,000 kg (8,818 lb) workpiece rating, a weight of 7,600 kg (16,755 lb) and a single main tank of 2,420 L. The AU-1400iA (Z800) has 800 mm (31.5 in) of Z, a 10,000 kg (22,046 lb) rating, weighs 10,100 kg (22,266 lb) and uses a main and a sub tank.
03
Space for 5,110 x 4,400 x 3,320 mm (201.2 x 173.2 x 130.7 in) in width, depth and height, and a foundation for a 10,100 kg (22,266 lb) machine, its water and a workpiece of up to 10,000 kg (22,046 lb). The water system is a main tank and a sub tank of 2,000 and 1,466 L.
04
The wire spool weight is 16 kg (35 lb). Maximum cutting taper is ±30° / H100, with 150 x 150 mm (5.9 x 5.9 in) of U and V travel. The control handles 5 axes, or 6 with the optional W axis.
