AccuteX AL-400SA

Q: How much does the AccuteX AL-400SA cost?

The price estimate for the AccuteX AL-400SA is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accutex-al-400sa#price; the request is passed to AccuteX or an authorised dealer.

Specs verified 2026-10-05 · accutex.com.tw Updated 2026-10-05

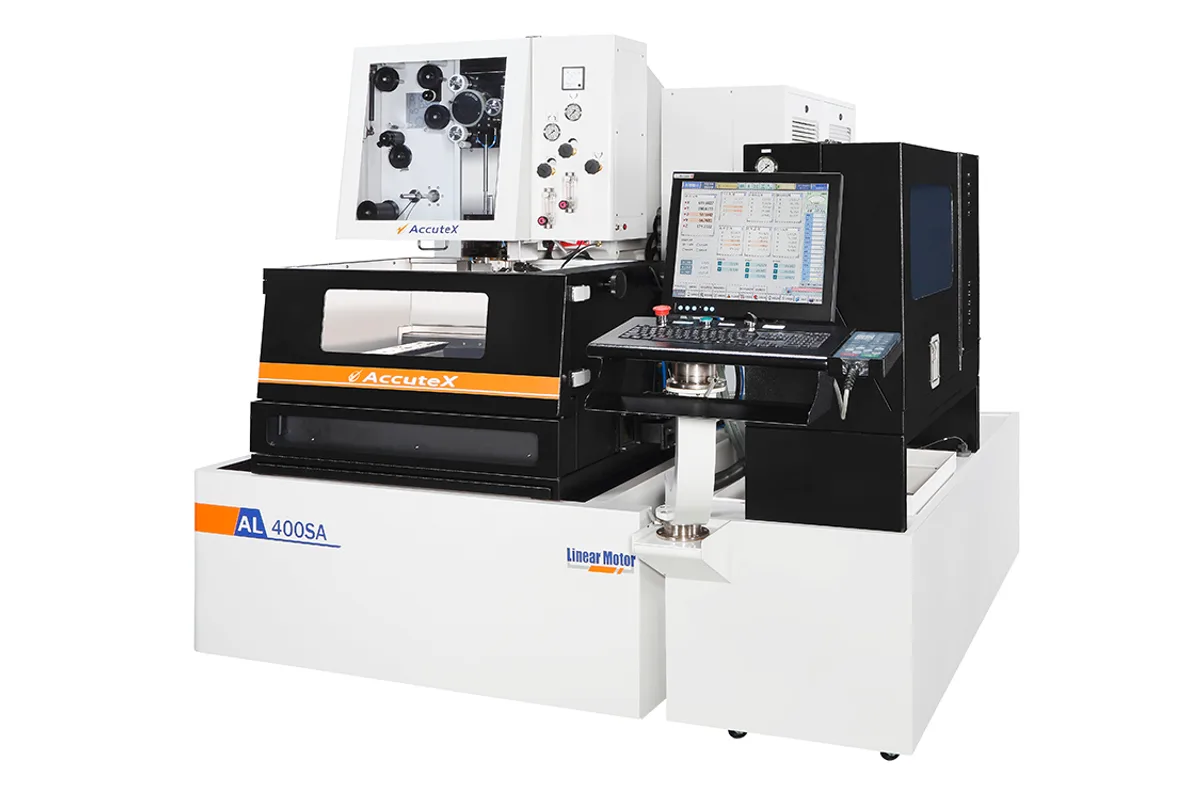

Image: accutex.com.tw, AccuteX

Key Specifications

max workpiece size

790 x 610 x 215 mm (31.1 x 24.0 x 8.5 in) (L x W x H)

max workpiece weight

400 kg (882 lb)

x axis travel

400 mm (15.7 in)

y axis travel

300 mm (11.8 in)

uv axis travel

100 x 100 mm (3.9 x 3.9 in)

z axis travel

220 mm (8.7 in)

How much does the AccuteX AL-400SA cost?

Price estimate

Uncertain

We do not have a price for the AccuteX AL-400SA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The AL-400SA is the smallest wire EDM in AccuteX's AL series, a 400 mm (15.7 in) by 300 mm (11.8 in) machine with a 220 mm (8.7 in) Z stroke. It takes a workpiece of up to 790 x 610 x 215 mm (31.1 x 24.0 x 8.5 in) and 400 kg (882 lb), and it weighs 3,000 kg (6,614 lb).

What separates the AL from AccuteX's other small machines is what arrives in the standard accessory list. Auto Wire Threading (AWT), the water chiller and the SD Master discharge board are all standard here. On the GA-43, which has the same X and Y travel, the threader and the chiller are options. The AL page also describes a linear shaft motor drive, which AccuteX credits with rapid servo control and a more sensitive discharge gap control.

Taper capacity sits in the middle of the range. U and V travel 100 x 100 mm (3.9 x 3.9 in) and the maximum cutting taper is ±21° (H=100). The GA-43 offers 60 mm (2.4 in) of U and V travel.

A note on height. AccuteX advises that, for stable cutting, the suggested maximum workpiece height is the Z axis stroke minus 30mm, so do not plan on using all 220 mm (8.7 in). The wire spool is limited to 10 kg (22 lb) unless the optional 45Kg Wire Jumbo Feeder is fitted, and X/Y linear scales, the 6th Axis Package (W axis) and the 0.1mm Wire Application are options as well.

Full Specifications

Parameter	Value
Max Workpiece Size	790 x 610 x 215 mm (31.1 x 24.0 x 8.5 in) (L x W x H)
Max Workpiece Weight	400 kg (882 lb)
X Axis Travel	400 mm (15.7 in)
Y Axis Travel	300 mm (11.8 in)
Uv Axis Travel	100 x 100 mm (3.9 x 3.9 in)
Z Axis Travel	220 mm (8.7 in)
Max Cutting Taper	±21° (H=100)
Wire Spool Weight	10 kg (22 lb)
Machine Dimensions	2,051 x 2,990 x 2,070 mm (80.7 x 117.7 x 81.5 in) (W x D x H)
Water System Capacity	630 L
Machine Weight	3,000 kg (6,614 lb)
Controller System	Windows
Control Device	64-bit Industrial PC
Storage Device	≥ 30GB SSD
Screen Display	Color TFT Touch Screen
Data Input	Keyboard, Mouse, USB, Ethernet, FTP
Controlled Axes	5 Axes / 6 Axes (Opt. W Axis)
Simultaneous Axes	4 Axes / 5 Axes (Opt. W Axis)
Min Command Unit	0.0001 mm / 0.00001 inch
Max Command Range	±9999.9999 mm
Cutting Data Memory	99999 Sets
Power Type	MOSFET Non-electrolysis power
Ignition Power Supply	32 Steps, 53V~138V
On Time Settings	24 Steps
Off Time Settings	43 Steps

Specifications sourced from accutex.com.tw — verified 2026-10-05

Strengths & Limitations

Strengths

Auto Wire Threading (AWT), a water chiller and the SD Master board are standard accessories
Linear shaft motor drive, described by AccuteX as giving rapid servo control and sensitive discharge gap control
100 x 100 mm (3.9 x 3.9 in) of U and V travel against 60 mm (2.4 in) on the GA-43, with taper to ±21° (H=100)
Compact for its class at 3,000 kg (6,614 lb) with a 630 L water system
MST is named in the optional accessory list for this size

Limitations

Z stroke is 220 mm (8.7 in), and AccuteX suggests keeping the workpiece to the Z stroke minus 30mm
X/Y Linear Scale is an optional accessory, not standard
The standard spool is 10 kg (22 lb); longer unattended runs need the optional 45Kg Wire Jumbo Feeder
High Pressure Water Jet Threading is not available together with Anti-Collision on Z Axis

Best For

Small die inserts, punches and electrodes within 400 mm (15.7 in) by 300 mm (11.8 in) Multi-opening jobs that rely on the standard automatic wire threader Shops that want a chiller and threader included on a small machine

Frequently Asked Questions

01 What comes as standard on the AccuteX AL-400SA?

The standard accessory list includes Auto Wire Threading (AWT), a water chiller, the SD Master board, upper and lower flushing nozzles, diamond guides, a conductor plate, brass wire, the ion resin tank with resin, a paper filter and a vertical alignment jig. Linear scales on X and Y are an option.

02 How tall a part can the AL-400SA cut?

The Z stroke is 220 mm (8.7 in) and the maximum workpiece height is listed as 215 mm within the 790 x 610 x 215 mm (31.1 x 24.0 x 8.5 in) envelope. AccuteX adds that for the most stable cutting the suggested maximum height is the Z axis stroke minus 30mm.

03 How does the AL-400SA compare with the AL-500SA?

The AL-500SA is longer in X at 500 mm (19.7 in) with the same 300 mm (11.8 in) of Y, and its Z stroke is 300 mm (11.8 in) against 220 mm (8.7 in) here. The AL-500SA takes 500 kg (1,102 lb) and weighs 3,600 kg (7,937 lb). U and V travel and taper capacity are the same on both machines.

04 What control does the AL-400SA have?

A Windows control on a 64-bit Industrial PC with a colour TFT touch screen. It handles 5 Axes / 6 Axes (Opt. W Axis) with 4 or 5 simultaneous, a minimum command unit of 0.0001 mm / 0.00001 inch and 99999 sets of cutting data. Data goes in by keyboard, mouse, USB, Ethernet or FTP.
