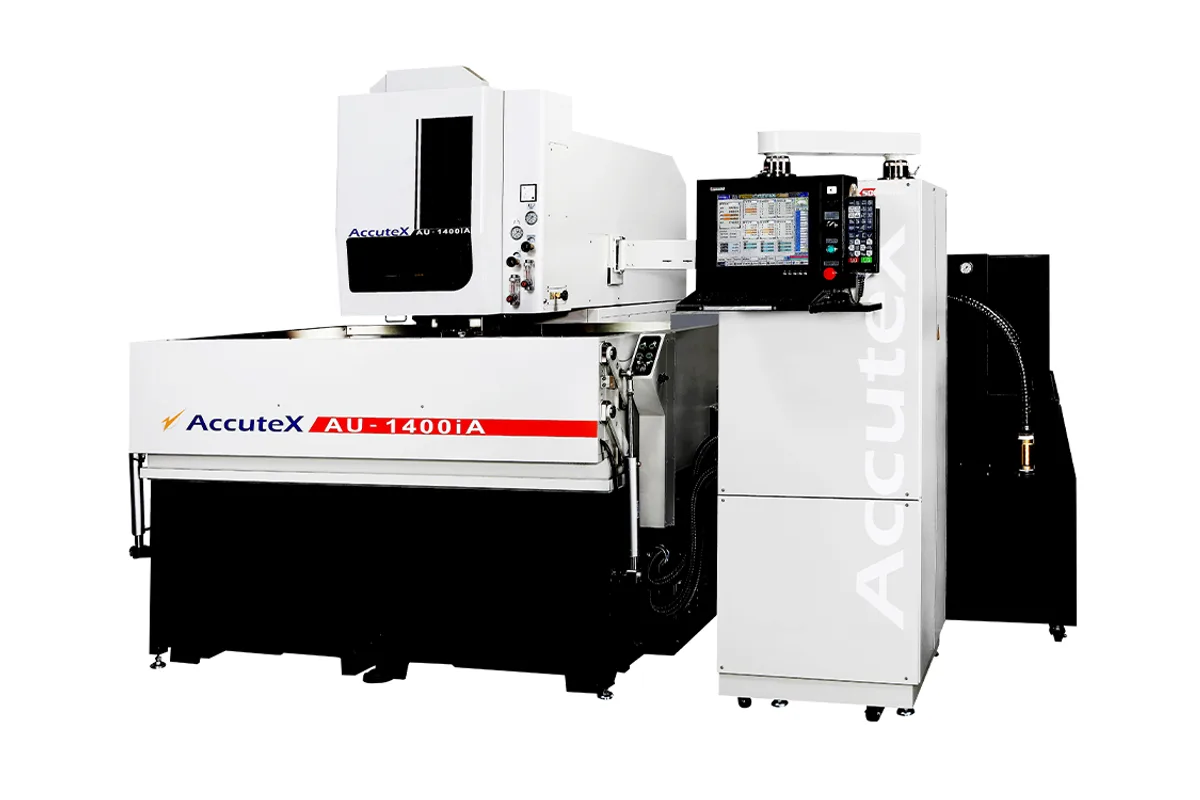

AccuteX AU-1400iA
Image: accutex.com.tw, AccuteX
Key Specifications
max workpiece size
max cutting workpiece height
max workpiece weight
x axis travel
y axis travel
uv axis travel
How much does the AccuteX AU-1400iA cost?
Price estimate
We do not have a price for the AccuteX AU-1400iA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The AccuteX AU-1400iA has the largest plan travel in the range, 1,400 mm (55.1 in) by 800 mm (31.5 in), paired with the shortest Z stroke of the large AU machines: 200 mm (7.9 in). It is a machine for big, flat work.
Think of plates, not blocks. The workpiece envelope is 1,740 x 1,080 x 195 mm (68.5 x 42.5 x 7.7 in) and the maximum cutting height 192 mm (7.6 in), with a weight limit of 4,000 kg (8,818 lb). Large stripper plates, die shoes, fixture plates and frame parts fit that description. A part taller than that calls for the AU-1400iA (Z800), which keeps the same X and Y travel on an 800 mm (31.5 in) Z stroke.
The short column keeps the installation manageable for a machine of this reach. Weight is 7,600 kg (16,755 lb), less than the 8,100 kg (17,857 lb) of the AU-1000iA, and the footprint is 4,330 x 3,950 x 2,500 mm (170.5 x 155.5 x 98.4 in). Water is held in a single main tank of 2,420 L.
U and V travel 150 x 150 mm (5.9 x 5.9 in), for a maximum taper of ±30° / H100, and the spool is 16 kg (35 lb). AccuteX states that the machine body is designed by finite element analysis and that each axis is compensated with a laser interferometer, which is the relevant assurance on an axis 1,400 mm (55.1 in) long. A linear scale is described as an option on the AU drive, and at this travel it is worth pricing.
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Size | 1,740 x 1,080 x 195 mm (68.5 x 42.5 x 7.7 in) (L x W x H) |
| Max Cutting Workpiece Height | 192 mm (7.6 in) |
| Max Workpiece Weight | 4,000 kg (8,818 lb) |
| X Axis Travel | 1,400 mm (55.1 in) |
| Y Axis Travel | 800 mm (31.5 in) |
| Uv Axis Travel | 150 x 150 mm (5.9 x 5.9 in) |
| Z Axis Travel | 200 mm (7.9 in) |
| Max Cutting Taper | ±30° / H100 |
| Wire Spool Weight | 16 kg (35 lb) |
| Machine Dimensions | 4,330 x 3,950 x 2,500 mm (170.5 x 155.5 x 98.4 in) (W x D x H, Z200) |
| Water System Capacity | Main Tank: 2,420 L (Z200) |
| Machine Weight | 7,600 kg (16,755 lb) |
| Controller System | Windows |
| Control Device | 64-bit Industrial PC |
| Storage Device | ≥ 30GB SSD |
| Screen Display | 21.5" Color TFT Touch Screen |
| Data Input | Keyboard, Mouse, USB, Ethernet, FTP |
| Controlled Axes | 5 Axes / 6 Axes (Opt. W Axis) |
| Simultaneous Axes | 4 Axes / 5 Axes (Opt. W Axis) |
| Min Command Unit | 0.0001 mm / 0.00001 inch |
| Max Command Range | ±9999.9999 mm |
| Cutting Data Memory | 99999 Sets |
| Power Type | MOSFET Non-electrolysis power |
| Ignition Power Supply | 32 Steps, 53V~138V |
| On Time Settings | 24 Steps |
| Off Time Settings | 43 Steps |
Specifications sourced from accutex.com.tw — verified 2026-10-05
Strengths & Limitations
Strengths
- Largest X and Y travel AccuteX lists: 1,400 mm (55.1 in) by 800 mm (31.5 in)
- Lighter than the AU-1000iA at 7,600 kg (16,755 lb), with a single main tank of 2,420 L
- Taper to ±30° / H100 with 150 x 150 mm (5.9 x 5.9 in) of U and V travel
- Takes plates up to 1,740 x 1,080 x 195 mm (68.5 x 42.5 x 7.7 in) and 4,000 kg (8,818 lb)
Limitations
- Z stroke is 200 mm (7.9 in) and cutting height 192 mm (7.6 in), so thick blocks are out
- Workpiece weight of 4,000 kg (8,818 lb) is below the 5,000 kg (11,023 lb) of the AU-1000iA
- Footprint of 4,330 x 3,950 x 2,500 mm (170.5 x 155.5 x 98.4 in)
- Linear scale feedback is described as an option
Best For
Frequently Asked Questions
01
X is 1,400 mm (55.1 in), Y is 800 mm (31.5 in) and Z is 200 mm (7.9 in). U and V travel 150 x 150 mm (5.9 x 5.9 in). The maximum workpiece is 1,740 x 1,080 x 195 mm (68.5 x 42.5 x 7.7 in) at 4,000 kg (8,818 lb), and the maximum cutting height is 192 mm (7.6 in).
02
The Z axis and everything that follows from it. The AU-1400iA (Z800) has an 800 mm (31.5 in) Z stroke, carries 10,000 kg (22,046 lb) and weighs 10,100 kg (22,266 lb). The standard AU-1400iA has 200 mm (7.9 in) of Z, carries 4,000 kg (8,818 lb) and weighs 7,600 kg (16,755 lb). X, Y, U and V travel are the same.
03
AccuteX lists 4,330 x 3,950 x 2,500 mm (170.5 x 155.5 x 98.4 in) as width, depth and height for the Z200 machine, at 7,600 kg (16,755 lb). The main tank holds 2,420 L. Add crane access for plates of up to 4,000 kg (8,818 lb).
04
Yes. The maximum cutting taper is ±30° / H100 and U and V each travel 150 mm (5.9 in). The control interpolates 4 axes simultaneously as standard, and the listed functions include taper setting and 4 axes cutting.
