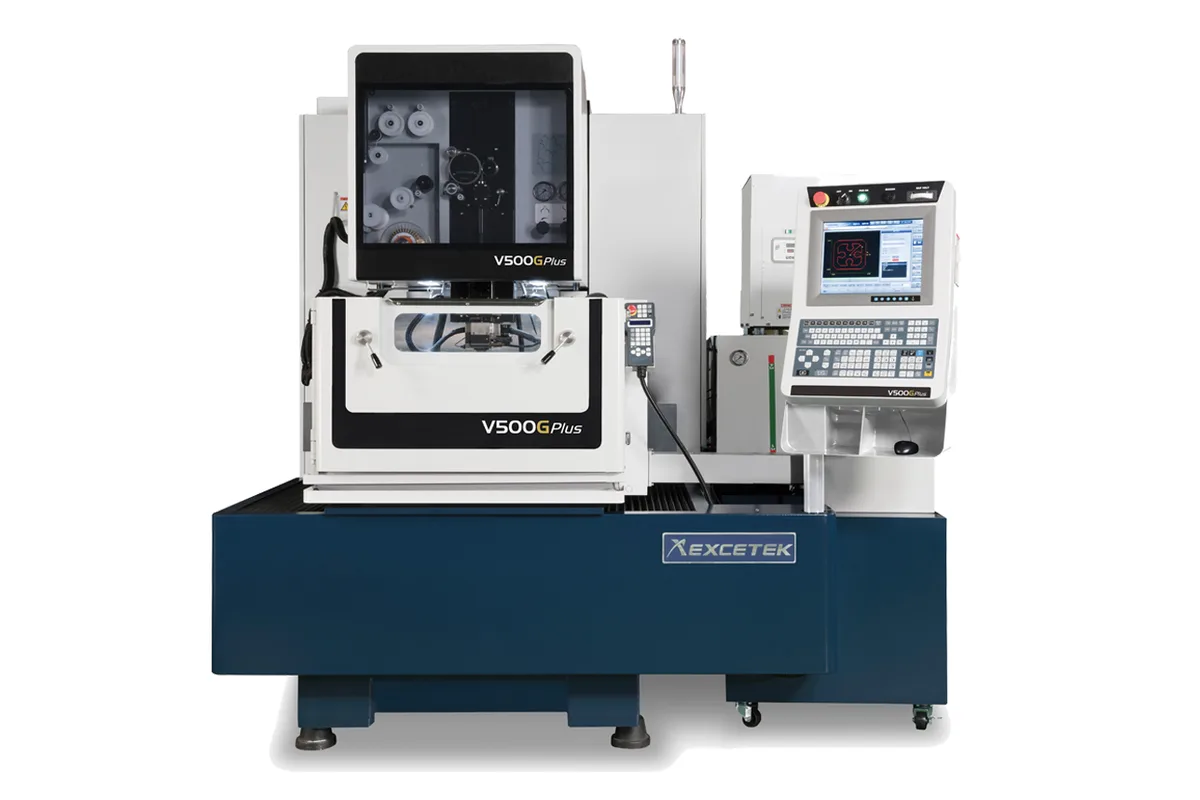

Excetek V500G Plus
Image: excetek.com, Excetek
Key Specifications
max workpiece size
max workpiece weight
x axis travel
y axis travel
uv axis travel
z axis travel
How much does the Excetek V500G Plus cost?
Price estimate
We do not have a price for the Excetek V500G Plus that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A 500 x 300 mm (19.7 x 11.8 in) table stroke, 260 mm (10.2 in) of Z and a 600 kg (1,323 lb) workpiece limit define the Excetek V500G Plus, the second size in the G Plus wire EDM series. Five axes are controlled, each by an AC servo motor.
The step up from the V400G Plus is not only in X. U/V travel rises to 120 x 120 mm (4.7 x 4.7 in), and with it the taper row moves to ±26° over 100 mm (3.9 in) with the wide diamond guide and nozzle. That still falls short of the ±30° Excetek lists for the V650G Plus, so this model sits between the two on angle as well as on size.
Part height deserves a second look. The maximum workpiece is given as 850 x 600 x 255 mm (33.5 x 23.6 x 10.0 in), yet the Z row states a submerged height of 220 mm (8.7 in). A part taller than 220 mm fits the tank but will not be fully under water at the cut, which affects flushing and thermal stability on long skim passes.
The machine weighs 3,500 kg (7,716 lb), against 2,700 kg (5,952 lb) for the V400G Plus, and stands on a 2,215 x 2,480 mm (87.2 x 97.6 in) footprint with a 750 L water tank. Excetek's feature list for the series talks about a DPM module, a discharging stabilizer, a new corner control strategy and reduced wire marks from approach cutting. G54~59 work coordinates can be used for automatic workpiece change in multi-job runs. Automatic wire threading itself is an option on the G Plus machines, as are XY linear scales, so a quotation should show both lines if unattended running is the plan.
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Size | 850 x 600 x 255 mm (33.5 x 23.6 x 10.0 in) |
| Max Workpiece Weight | 600 kg (1,323 lb) |
| X Axis Travel | 500 mm (19.7 in) |
| Y Axis Travel | 300 mm (11.8 in) |
| Uv Axis Travel | 120 x 120 mm (4.7 x 4.7 in) |
| Z Axis Travel | 260 mm (10.2 in) (Submerged height 220 mm (8.7 in)) |
| Wire Diameter | 0.15 - 0.3 mm (0.006 - 0.012 in) |
| Number of Axes Controlled | 5 Axis AC servo motor |
| Max Taper Angle | ±26° / 100 mm (3.9 in) with wide diamond guide and nozzle |
| Machine Dimensions | 2,215 x 2,480 x 2,205 mm (87.2 x 97.6 x 86.8 in) |
| Machine Weight | 3,500 kg (7,716 lb) |
| Water Tank Capacity | 750 L |
Specifications sourced from excetek.com — verified 2026-10-05
Strengths & Limitations
Strengths
- ±26° taper over 100 mm (3.9 in) from 120 x 120 mm (4.7 x 4.7 in) of U/V travel
- 850 x 600 x 255 mm (33.5 x 23.6 x 10.0 in) maximum workpiece at up to 600 kg (1,323 lb)
- Feature list names a DPM module, a discharging stabilizer and a new strategy for corner control
- G54~59 coordinates can be used for automatic work-piece change
- Machine casting designed with FEA and a rigid U, V truss
Limitations
- Submerged height is 220 mm (8.7 in), less than the 255 mm (10.0 in) maximum part height
- Y travel is 300 mm (11.8 in), no more than on the V400G Plus
- AWT and XY axis linear scales are both on the options list
- Taper stops at ±26°; the V650G Plus and V850G Plus are listed at ±30°
Best For
Frequently Asked Questions
01
X is 500 mm (19.7 in), Y is 300 mm (11.8 in) and Z is 260 mm (10.2 in), with a submerged height of 220 mm (8.7 in). U and V travel 120 x 120 mm (4.7 x 4.7 in).
02
Not completely. The maximum workpiece height is 255 mm (10.0 in), but the Z axis row gives a submerged height of 220 mm (8.7 in). Work between those two heights fits the machine and is cut with the top of the part above the water line.
03
Under the heading on machining performance Excetek names a DPM module, a discharging stabilizer, a new strategy for corner control, manual radius size machining, reduced wire marks from approach cutting and a new micron finish circuit. The Super Finish Circuit is listed separately as an option.
04
Machine size is 2,215 x 2,480 x 2,205 mm (87.2 x 97.6 x 86.8 in) and machine weight is 3,500 kg (7,716 lb). The water tank capacity is 750 L. A 15 kVA transformer and a 15 kVA AVR are both on the options list.
