AccuteX AU-6iA

Q: How much does the AccuteX AU-6iA cost?

The price estimate for the AccuteX AU-6iA is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accutex-au-6ia#price; the request is passed to AccuteX or an authorised dealer.

Specs verified 2026-10-05 · accutex.com.tw Updated 2026-10-05

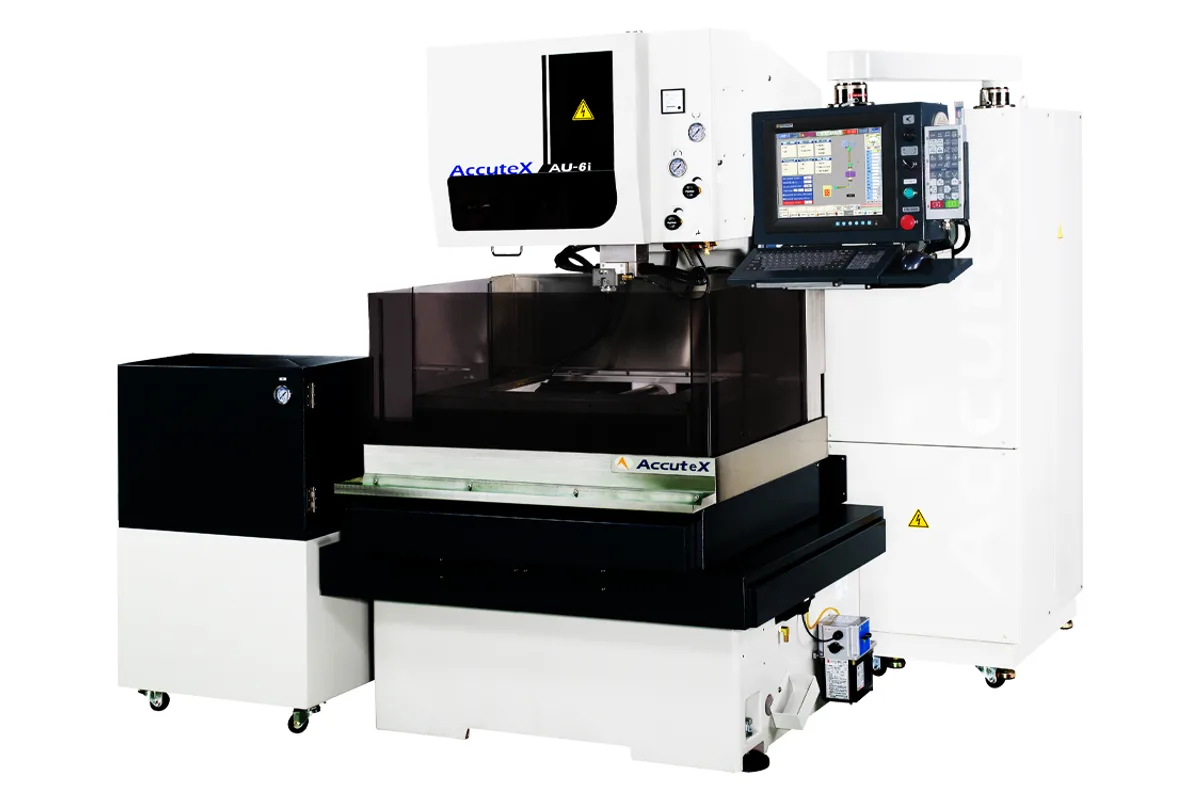

Image: accutex.com.tw, AccuteX

Key Specifications

max workpiece size

965 x 620 x 295 mm (38.0 x 24.4 x 11.6 in) (L x W x H)

max workpiece weight

800 kg (1,764 lb)

x axis travel

600 mm (23.6 in)

y axis travel

400 mm (15.7 in)

z axis travel

300 mm (11.8 in)

uv axis travel

100 x 100 mm (3.9 x 3.9 in)

How much does the AccuteX AU-6iA cost?

Price estimate

Uncertain

We do not have a price for the AccuteX AU-6iA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The AU-6iA is AccuteX's 600 mm (23.6 in) by 400 mm (15.7 in) standard wire EDM, with a 300 mm (11.8 in) Z stroke. Its listed table load stands out: 800 kg (1,764 lb), on a machine that itself weighs 3,500 kg (7,716 lb).

That load figure is the reason to look at this model among AccuteX's several 600 mm machines. The AL-600SA is rated for 550 kg (1,213 lb) and the AU-600iA for 600 kg (1,323 lb). If the work is thick tool steel or a die set left in its holder, the extra capacity decides it. The maximum workpiece is 965 x 620 x 295 mm (38.0 x 24.4 x 11.6 in).

The drive is conventional and AccuteX says so plainly. The page describes C1 class ball screws with a sub-zero treatment and a super-finish ground process, driven by AC servomotors, with a linear scale available as an option for closed-loop feedback. Each axis is compensated with a laser interferometer. The linear guides are a ball-retainer type, which AccuteX says cuts frictional variation by 90% compared with conventional guides. Buyers who want linear motors as standard should look at the AP or AZ series instead.

U and V travel is 100 x 100 mm (3.9 x 3.9 in), the maximum cutting taper ±21° H=100 and the spool 10 kg (22 lb). The footprint is 2,680 x 2,600 x 2,210 mm (105.5 x 102.4 x 87.0 in). AccuteX's page for the AU-6iA prints a water capacity that belongs to the smallest AU model, so no tank figure is given here.

Full Specifications

Parameter	Value
Max Workpiece Size	965 x 620 x 295 mm (38.0 x 24.4 x 11.6 in) (L x W x H)
Max Workpiece Weight	800 kg (1,764 lb)
X Axis Travel	600 mm (23.6 in)
Y Axis Travel	400 mm (15.7 in)
Z Axis Travel	300 mm (11.8 in)
Uv Axis Travel	100 x 100 mm (3.9 x 3.9 in)
Wire Spool Weight	10 kg (22 lb)
Machine Dimensions	2,680 x 2,600 x 2,210 mm (105.5 x 102.4 x 87.0 in)
Machine Weight	3,500 kg (7,716 lb)
Max Cutting Taper	±21° H=100
Controller System	Windows
Control Device	64-bit Industrial PC
Storage Device	≥ 30GB SSD
Screen Display	21.5" Color TFT Touch Screen
Data Input	Keyboard, Mouse, USB, Ethernet, FTP
Controlled Axes	5 Axes / 6 Axes (Opt. W Axis)
Simultaneous Axes	4 Axes / 5 Axes (Opt. W Axis)
Min Command Unit	0.0001 mm / 0.00001 inch
Max Command Range	±9999.9999 mm
Cutting Data Memory	99999 Sets
Power Type	MOSFET Non-electrolysis power
Ignition Power Supply	32 Steps, 53V~138V
On Time Settings	24 Steps
Off Time Settings	43 Steps

Specifications sourced from accutex.com.tw — verified 2026-10-05

Strengths & Limitations

Strengths

Table load of 800 kg (1,764 lb), above the 550 kg (1,213 lb) of the AL-600SA and the 600 kg (1,323 lb) of the AU-600iA
600 mm (23.6 in) by 400 mm (15.7 in) of travel with a 300 mm (11.8 in) Z stroke
C1 class ball screws and ball-retainer linear guides, each axis compensated by laser interferometer
Compact footprint of 2,680 x 2,600 x 2,210 mm (105.5 x 102.4 x 87.0 in) at 3,500 kg (7,716 lb)

Limitations

Ball screw and servomotor drive; the linear scale is described as an option
U and V travel of 100 x 100 mm (3.9 x 3.9 in) and ±21° H=100 taper, below the 160 x 160 mm (6.3 x 6.3 in) of the AZ-600A
The page has no accessory lists, so standard and optional equipment are not documented there
Wire spool limited to 10 kg (22 lb)

Best For

Heavy die blocks and tooling up to 800 kg (1,764 lb) General mould work within 600 mm (23.6 in) by 400 mm (15.7 in) Shops that prefer ball screw drives they already know how to maintain

Frequently Asked Questions

01 How much weight can the AccuteX AU-6iA take?

The maximum workpiece weight is 800 kg (1,764 lb), with a maximum size of 965 x 620 x 295 mm (38.0 x 24.4 x 11.6 in). Among AccuteX's machines with the same X and Y travel, the AL-600SA is listed at 550 kg (1,213 lb) and the AZ-600A at 550 kg (1,213 lb).

02 Does the AU-6iA use linear motors or ball screws?

Ball screws. AccuteX describes C1 class ball screws with sub-zero treatment and super-finish grinding, driven by high-response AC servomotors. A linear scale mounted close to the ball screw is described as an option for closed-loop feedback, and each axis is compensated by laser interferometer.

03 What is the difference between the AU-6iA and the AU-600iA?

Both travel 600 mm (23.6 in) by 400 mm (15.7 in) with 300 mm (11.8 in) of Z. The AU-600iA is listed with a 600 kg (1,323 lb) workpiece, a machine weight of 3,700 kg (8,157 lb) and an 850 L water system. The AU-6iA is listed with 800 kg (1,764 lb) and 3,500 kg (7,716 lb).

04 What taper can the AU-6iA cut?

AccuteX lists the maximum cutting taper as ±21° H=100, with 100 x 100 mm (3.9 x 3.9 in) of U and V travel. The control interpolates 4 axes simultaneously as standard, which covers different top and bottom profiles, and 5 with the optional W axis.
