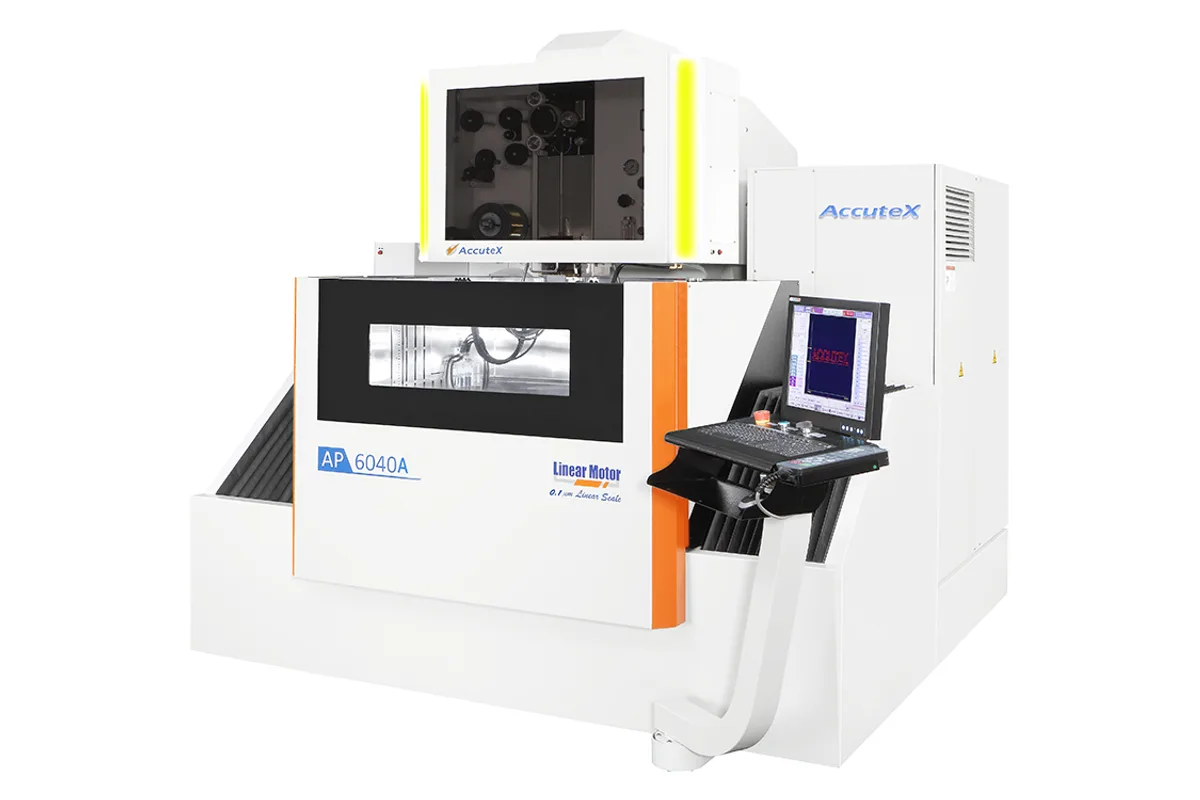

AccuteX AP-6040A
Image: accutex.com.tw, AccuteX
Key Specifications
max workpiece size
max cutting workpiece height
max workpiece weight
x axis travel
y axis travel
uv axis travel
How much does the AccuteX AP-6040A cost?
Price estimate
We do not have a price for the AccuteX AP-6040A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 600 mm (23.6 in) of X travel, 400 mm (15.7 in) of Y and a 350 mm (13.8 in) Z stroke, the AccuteX AP-6040A is the larger machine in the AP series of linear-motor wire EDMs. It accepts a workpiece of 980 x 775 x 345 mm (38.6 x 30.5 x 13.6 in) weighing up to 1,000 kg (2,205 lb), and AccuteX gives 350 mm (13.8 in) as the maximum height it will cut.
The structure is the part AccuteX explains in most detail. The casting is a compound table design in which the column moves in Y, so the centre of gravity stays between the 2 linear guideways of the X axis table and the two axes do not stack their errors. AccuteX states that "the Bi-repeatability is less than 2.5μm" after 5 laser calibrations. Drive is by the XY Axes Linear Motor System with a 0.1μm Resolution Linear Scale, both standard; a 0.05μm Resolution Linear Scale is on the options list.
How much bigger is it than the AP-4030A? The travels grow by half in X and a third in Y, yet the machine weight barely moves: 5,100 kg (11,243 lb) here against 5,000 kg (11,023 lb) for the AP-4030A. The water system is where the size shows, at 980 L. U and V travel stays at 160 x 160 mm (6.3 x 6.3 in) and the maximum cutting taper at ±32° / H100 mm.
Several things a buyer may assume are included are not. Auto Wire Threading (AWT), the water chiller, the MST II Power Module, the Rotary Table Package (W axis) and the Probing Measuring System are optional accessories. So is the 0.05mm~0.1mm Fine Wire Application; AccuteX says 0.07mm wire threads successfully 90% of the time under 30mm of Z axis height.
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Size | 980 x 775 x 345 mm (38.6 x 30.5 x 13.6 in) (L x W x H) |
| Max Cutting Workpiece Height | 350 mm (13.8 in) |
| Max Workpiece Weight | 1,000 kg (2,205 lb) |
| X Axis Travel | 600 mm (23.6 in) |
| Y Axis Travel | 400 mm (15.7 in) |
| Uv Axis Travel | 160 x 160 mm (6.3 x 6.3 in) |
| Z Axis Travel | 350 mm (13.8 in) |
| Max Cutting Taper | ±32° / H100 mm |
| Wire Spool Weight | 16 kg (35 lb) |
| Machine Dimensions | 2,320 x 2,850 x 2,380 mm (91.3 x 112.2 x 93.7 in) (W x D x H) |
| Water System Capacity | 980 L |
| Machine Weight | 5,100 kg (11,243 lb) |
| Controller System | Windows |
| Control Device | 64-bit Industrial PC |
| Storage Device | ≥ 30GB SSD |
| Screen Display | 21.5" Color TFT Touch Screen |
| Data Input | Keyboard, Mouse, USB, Ethernet, FTP |
| Servo Control Method | Full closed loop (Linear scale) |
| Controlled Axes | 5 Axes / 6 Axes (Opt. W Axis) |
| Simultaneous Axes | 4 Axes / 5 Axes (Opt. W Axis) |
| Min Command Unit | 0.0001 mm / 0.00001 inch |
| Max Command Range | ±9999.9999 mm |
| Cutting Data Memory | 99999 Sets |
| Power Type | MOSFET Non-electrolysis power |
| Ignition Power Supply | 32 Steps, 53V~138V |
| On Time Settings | 24 Steps |
| Off Time Settings | 43 Steps |
Specifications sourced from accutex.com.tw — verified 2026-10-05
Strengths & Limitations
Strengths
- Compound table with a Y-moving column keeps the centre of gravity between the 2 linear guideways of the X axis table
- AccuteX states a "Bi-repeatability" of less than 2.5μm after 5 laser calibrations
- Cuts workpieces up to 350 mm (13.8 in) high and carries up to 1,000 kg (2,205 lb)
- Linear motors and a 0.1μm Resolution Linear Scale are standard, with a 0.05μm scale available as an option
- 160 x 160 mm (6.3 x 6.3 in) of U and V travel gives a listed taper capacity of ±32° / H100 mm
Limitations
- Auto Wire Threading (AWT) is an optional accessory, not part of the standard machine
- The MST II Power Module, PCD / Graphite Power Module and water chiller are all extras
- The footprint is 2,320 x 2,850 x 2,380 mm (91.3 x 112.2 x 93.7 in), and the 980 L water system has to be filled, filtered and kept at temperature
- The fine-wire figure AccuteX quotes applies under 30mm of Z axis height, so thin wire is for thin parts
Best For
Frequently Asked Questions
01
Up to 980 x 775 x 345 mm (38.6 x 30.5 x 13.6 in) and 1,000 kg (2,205 lb). Cutting travel is 600 mm (23.6 in) in X and 400 mm (15.7 in) in Y, the Z stroke is 350 mm (13.8 in), and AccuteX lists 350 mm (13.8 in) as the maximum height of cutting workpiece.
02
On this model's page AccuteX states a "Bi-repeatability" of less than 2.5μm after 5 laser calibrations, and a best pitch accuracy of less than ±3μm in a 12 holes mold cutting test on a 400x300x30mm plate. Those are the maker's test results under its own cutting conditions, not a guaranteed tolerance for every job.
03
Yes. The XY Axes Linear Motor System is in the standard accessory list together with a 0.1μm Resolution Linear Scale, and the controller table gives the servo control method as full closed loop with linear scale. A 0.05μm Resolution Linear Scale is offered as an option.
04
The Rotary Table Package (W axis) is an optional accessory. With it the control handles 6 axes with 5 simultaneous; without it the machine is a 5-axis control with 4 simultaneous axes, which covers X, Y, U and V taper cutting plus Z positioning.
