CHMER RV1285L

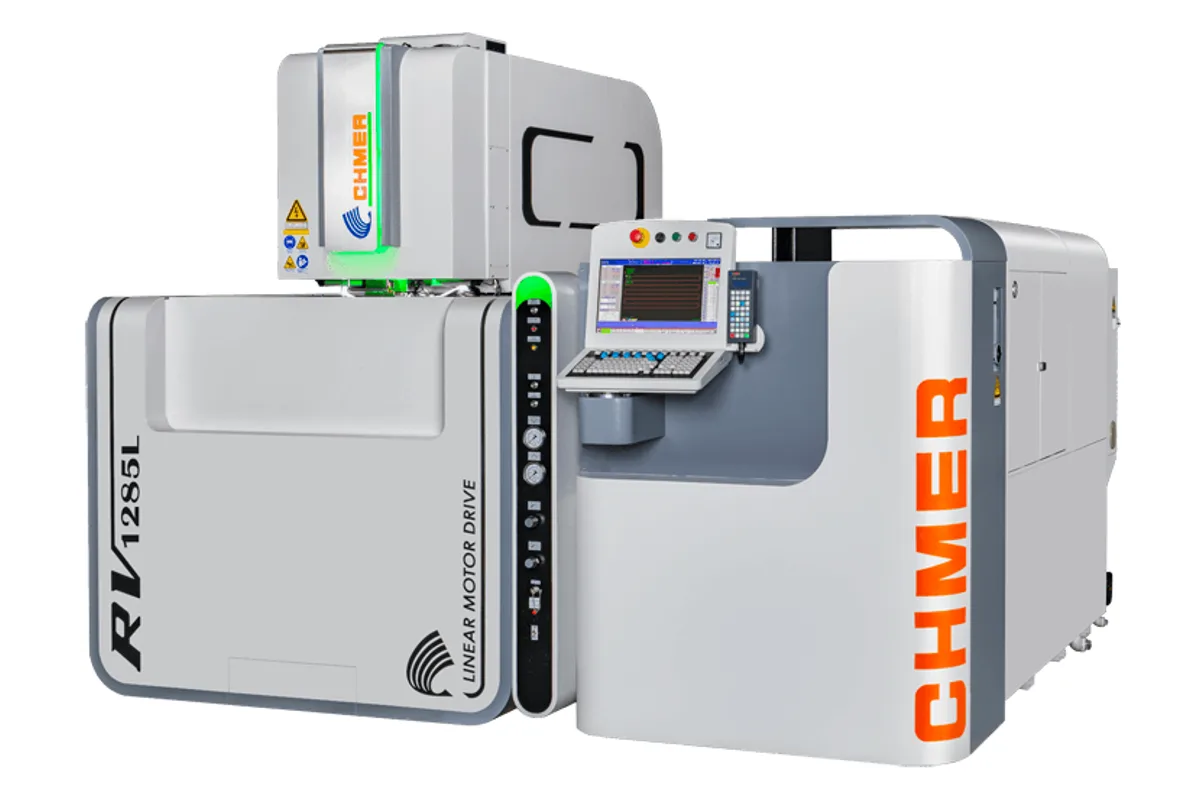

Image: chmer.com, CHMER
Key Specifications
x axis travel
y axis travel
z axis travel
max workpiece size
max workpiece weight
xy feed rate
How much does the CHMER RV1285L cost?
Price estimate
We do not have a price for the CHMER RV1285L that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The CHMER RV1285L is the largest wire EDM in the RV series in every direction: 1,200 mm (47.2 in) of X, 800 mm (31.5 in) of Y and 500 mm (19.7 in) of Z. A workpiece of 1,600 x 1,100 x 495 mm (63.0 x 43.3 x 19.5 in) and 5,000 kg (11,023 lb) fits its fixed table.
Think of it as the RV1283L with a tall column. The plan travels and load are identical; Z goes from the 300 mm of the RV1283L to 500 mm, and the machine grows with it to 2,780 mm (109.4 in) high and 9,000 kg (19,841 lb). Width also increases a little, to 5,050 mm (198.8 in).
CHMER introduces the model as a new design built around intelligent systems: a real-time processing monitor, machine-to-machine networking and production management. In practice that means the Kanban information centre, the Android app and the LINE and e-mail notices described for the series. On a machine whose single jobs can run for days, being able to see status and spare-part life away from the shop floor has obvious use.
Two things to raise with CHMER. The page gives two different U and V travels for this model, so that row is left out here. And the specification column on the RV1285L page is headed with the RV1283L name, though its Z and height figures are those of the taller machine.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,200 mm (47.2 in) |
| Y Axis Travel | 800 mm (31.5 in) |
| Z Axis Travel | 500 mm (19.7 in) |
| Max Workpiece Size | 1,600 x 1,100 x 495 mm (63.0 x 43.3 x 19.5 in) (W x D x H) |
| Max Workpiece Weight | 5,000 kg (11,023 lb) |
| Xy Feed Rate | Max. 1,800 mm/min (70.9 ipm) |
| Axis Drive System | X,Y axis by linear Motor; U,V,Z axis by AC Servo |
| Wire Diameter | 0.15-0.3 mm (0.006-0.012 in); standard 0.25 mm (0.010 in) |
| Wire Feed Rate Max | 300 mm/sec (11.8 in/sec) |
| Wire Tension | 300-2,500 gf |
| Taper Angle | ±21°/80mm (Wide Angle Nozzle DA+DB=15mm) |
| Machine Dimensions | 5,050 x 3,835 x 2,780 mm (198.8 x 151.0 x 109.4 in) (W x D x H) |
| Machine Weight | 9,000 kg (19,841 lb) |
Specifications sourced from chmer.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,200 x 800 x 500 mm (47.2 x 31.5 x 19.7 in) travels, the largest in the RV series
- Workpieces up to 495 mm tall and 5,000 kg (11,023 lb)
- Fixed table with linear motor X and Y axes
- Real-time processing monitor and networked production management, per CHMER
- Feed up to 1,800 mm/min (70.9 ipm) on X and Y
Limitations
- 5,050 x 3,835 x 2,780 mm (198.8 x 151.0 x 109.4 in) and 9,000 kg (19,841 lb)
- U and V travel is published inconsistently and must be confirmed
- Taper rating of ±21°/80mm despite the 500 mm Z
- No accessory list on the model page
Best For
Frequently Asked Questions
01
Travels are 1,200 mm (47.2 in) in X, 800 mm (31.5 in) in Y and 500 mm (19.7 in) in Z. The maximum workpiece is 1,600 x 1,100 x 495 mm (63.0 x 43.3 x 19.5 in) at up to 5,000 kg (11,023 lb).
02
Z travel: 500 mm (19.7 in) on the RV1285L, 300 mm (11.8 in) on the RV1283L. The RV1285L is 2,780 mm high and weighs 9,000 kg (19,841 lb); the RV1283L is 2,250 mm high and weighs 8,800 kg (19,400 lb). X, Y and the load rating are the same.
03
The machine itself is 2,780 mm (109.4 in) high, 5,050 mm (198.8 in) wide and 3,835 mm (151.0 in) deep. Allow extra clearance above it for crane loading of workpieces up to 5,000 kg (11,023 lb).
04
A real-time processing monitor, M to M networks, production management and a new intelligent machining system. The series features add a Kanban information centre on servers, an Android app for machine status and spare parts life, and instant data through LINE and e-mail.
