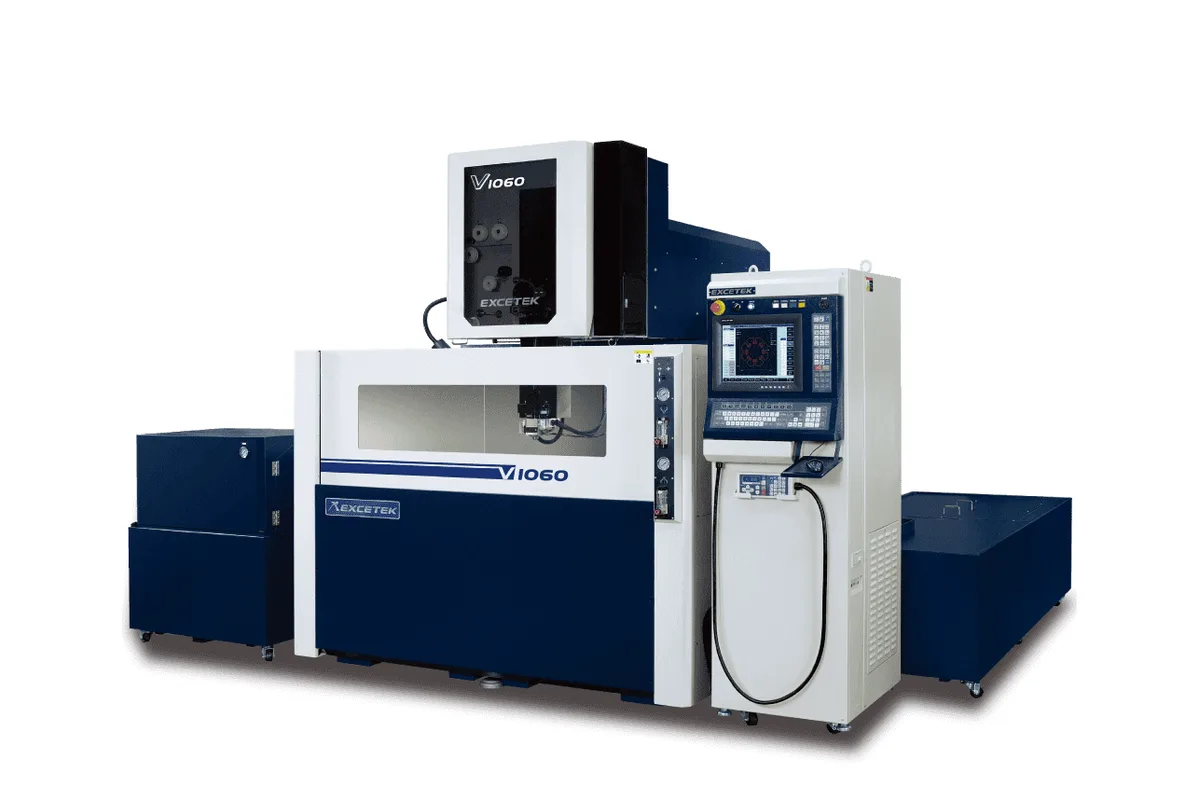

Excetek V1060
Image: excetek.com, Excetek
Key Specifications
max workpiece size
max workpiece weight
x axis travel
y axis travel
uv axis travel
z axis travel
How much does the Excetek V1060 cost?
Price estimate
We do not have a price for the Excetek V1060 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Excetek V1060 is the entry to the maker's large-format V series wire EDMs: 1,000 mm (39.4 in) of X travel, 600 mm (23.6 in) of Y and a 3,000 kg (6,614 lb) workpiece limit. Excetek sells it in two column heights and prints both in the table heading, as V1060 - Z350 / Z500.
Most of the specification depends on which of the two is ordered. Z travel is 350 / 500 mm (13.8 / 19.7 in). Maximum workpiece size is 1,500 x 1,000 x 345 mm (59.1 x 39.4 x 13.6 in), with 495 mm (19.5 in) in brackets for the taller machine. Machine weight is 7,300 / 7,650 kg and water tank capacity 1,800 / 2,500 L. Floor space changes too. The Z350 measures 3,460 x 3,260 x 2,310 mm and the Z500 4,210 x 3,260 x 2,390 mm, so the taller column also needs a longer bay.
U/V travel is given as 160 x 160 mm (6.3 x 6.3 in) with 260 x 260 mm (10.2 x 10.2 in) in brackets. The taper row reads ±30° over 100 mm (3.9 in) with the wide diamond guide and nozzle. Wire is 0.2 to 0.33 mm, a heavier range than the 0.15 to 0.3 mm of the V850G Plus below it.
The page describes the motion system in some detail: widely spaced linear guide ways, cryogenically treated C1 class ball screws supported at both ends, high resolution AC servomotors, laser calibration and pitch error compensation. A closed loop linear scale is an option. Control is Excetek's W6 on an industrial PC with a 15-inch LCD touch screen, a minimum command unit of 0.0001 mm and a remote control as a standard accessory. Automatic wire threading and a double door sit on the options list.
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Size | 1,500 x 1,000 x 345 mm (59.1 x 39.4 x 13.6 in) (495 mm (19.5 in)) |
| Max Workpiece Weight | 3,000 kg (6,614 lb) |
| X Axis Travel | 1,000 mm (39.4 in) |
| Y Axis Travel | 600 mm (23.6 in) |
| Uv Axis Travel | 160 x 160 mm (6.3 x 6.3 in) (260 x 260 mm (10.2 x 10.2 in)) |
| Z Axis Travel | 350 / 500 mm (13.8 / 19.7 in) |
| Z Axis Travel Option | 500 mm (19.7 in) (Submerged height 500 mm (19.7 in)) |
| Wire Diameter | 0.2 - 0.33 mm (0.008 - 0.013 in) |
| Number of Axes Controlled | 5 Axis AC servo motor |
| Max Taper Angle | ±30° / 100 mm (3.9 in) with wide diamond guide and nozzle |
| Machine Dimensions | 3,460 x 3,260 x 2,310 mm (136.2 x 128.3 x 90.9 in) (Z350); 4,210 x 3,260 x 2,390 mm (165.7 x 128.3 x 94.1 in) (Z500) |
| Machine Weight | Z350 / Z500: 7,300 / 7,650 kg (16,093 / 16,865 lb) |
| Water Tank Capacity | Z350 / Z500: 1,800 / 2,500 L |
| CNC Device | Industrial PC |
| Operation Interface | 15'' LCD touch screen, Keyboard, Mouse |
| Input Interface | LAN, USB driver, Floppy, RS-232 |
| Memory Capacity | 512 MB CF card |
| Min Command Unit | 0.0001 mm |
| Max Programmable Dimension | ±9999.9999 mm |
Specifications sourced from excetek.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,000 kg (6,614 lb) workpiece capacity on a 1,000 mm (39.4 in) by 600 mm (23.6 in) stroke
- Two column heights, Z350 and Z500, with Z travel of 350 / 500 mm (13.8 / 19.7 in)
- Cryogenically treated C1 class ball screws, laser calibration and pitch error compensation
- W6 control on an industrial PC with a minimum command unit of 0.0001 mm
- ±30° taper over 100 mm (3.9 in) with the wide diamond guide and nozzle
- Remote control is a standard accessory
Limitations
- The Z500 machine is 4,210 x 3,260 x 2,390 mm, against 3,460 x 3,260 x 2,310 mm for the Z350
- Closed loop linear scales, AWT and the Super Finish Circuit are options
- Wire range starts at 0.2 mm; the V850G Plus below it lists wire down to 0.15 mm
- The table does not say which column the bracketed 260 x 260 mm U/V travel belongs to
Best For
Frequently Asked Questions
01
Column height and everything that follows from it. Z travel is 350 / 500 mm (13.8 / 19.7 in), machine weight 7,300 / 7,650 kg and water tank capacity 1,800 / 2,500 L. Machine size is 3,460 x 3,260 x 2,310 mm for the Z350 and 4,210 x 3,260 x 2,390 mm for the Z500. X and Y travel are the same on both.
02
3,000 kg (6,614 lb), with a maximum size of 1,500 x 1,000 x 345 mm (59.1 x 39.4 x 13.6 in). The table adds 495 mm (19.5 in) in brackets as the height for the taller configuration. The V850G Plus, the next machine down, is limited to 1,100 kg (2,425 lb).
03
Excetek's W6 control. The page lists an industrial PC as the CNC device, a 15-inch LCD touch screen with keyboard and mouse, LAN, USB and RS-232 input, a 512 MB CF card, a minimum command unit of 0.0001 mm and switchable metric and inch units. A remote control is a standard accessory.
04
AWT is on the options list for the V series, together with XY axis linear scales, a W axis, a double door and the Jumbo Feeder L-50A. Where it is fitted, Excetek describes threading at the break point after annealing the wire, threading while submerged, and a water jet function that threads a thickness of 500 mm.
